Quick Details
-
Power:
-
5.5HP
-
Weight:
-
90 kg, 90KG
-
Dimension(L*W*H):
-
L1100*W500 *H850
-
Product Name:
-
Honda engine manual soil compactor plate compactor for sale
-
Engine:
-
HONDA GX160
-
Work Speed:
-
23m/min
-
Excitation Frequency:
-
92HZ
-
Exciting Force:
-
15KN
-
Work Efficiency:
-
405sq.m./hr
-
Compaction Depth:
-
30cm
-
Plate Size:
-
53*50cm
-
Rammer Size:
-
L1100*W500 *H850
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Storike
-
Voltage:
-
220V
-
Power:
-
5.5HP
-
Weight:
-
90 kg, 90KG
-
Dimension(L*W*H):
-
L1100*W500 *H850
-
Product Name:
-
Honda engine manual soil compactor plate compactor for sale
-
Engine:
-
HONDA GX160
-
Work Speed:
-
23m/min
-
Excitation Frequency:
-
92HZ
-
Exciting Force:
-
15KN
-
Work Efficiency:
-
405sq.m./hr
-
Compaction Depth:
-
30cm
-
Plate Size:
-
53*50cm
-
Rammer Size:
-
L1100*W500 *H850

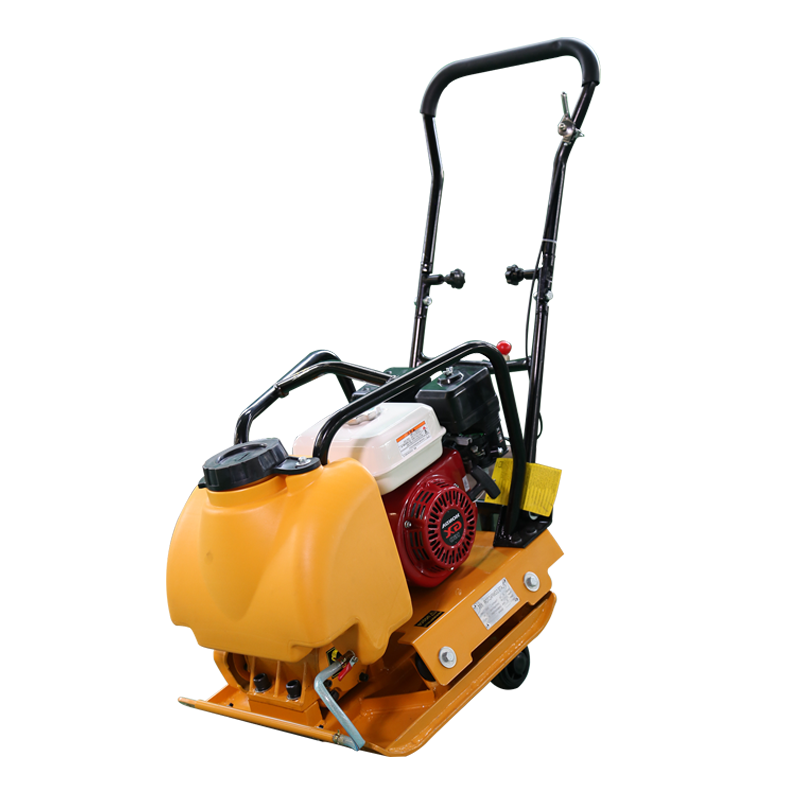

Honda engine manual soil compactor plate compactor for sale
Honda engine manual soil compactor plate compactor for sale
Honda engine manual soil compactor plate compactor for sale
Storike vibrating plate compactor machine are used widely on granular soils, hot or cold asphalt, and paving blocks. These machines are ideal for trenches, road construction, backfill, and foundation work. It is suitable for compacting at the edges of road, abutment channel, groove in narrow trenches.
Machine Parts
Handle:
Foldable handle easy for transportation.
The designing of square-shaped bed and handle is more helpful and comfortable for the operators to changing working directions.
Option item:
*Other engine are available as requested
*Water tank can be assembled as requested
*Optional rubber mat for brick paving compaction
|
Model |
STP-60 |
STP-90 |
STP-125 |
STP-160 |
|
Engine |
HONDA GX160 |
HONDA GX160 |
HONDA GX160 |
HONDA GX160 |
|
Engine type |
Gasoline Air cooling |
Gasoline Air cooling |
Gasoline Air cooling |
Gasoline Air cooling |
|
Power(HP) |
5.5 |
5.5 |
5.5 |
5.5 |
|
Work Speed(m/min) |
34 |
23 |
28 |
27 |
|
Exciting Force(KN) |
10.5 |
15 |
25 |
30.5 |
|
Excitation Frequency(HZ) |
93 |
92 |
72 |
67 |
|
Work Efficiency(sq.m./hr) |
423 |
405 |
400 |
500 |
|
Compaction Depth(cm) |
20 |
30 |
30 |
50 |
|
Working weight(KG) |
66 |
90 |
125 |
159 |
|
Plate size(cm) |
50*35 |
53*50 |
62*40 |
73*37 |
|
Rammer size(mm) |
L1080*W350 *H850 |
L1100*W500 *H850 |
L1200*W400 *H930 |
L1250*W370 *H930 |
Our products are used for compaction of soil, asphalt roads, sidewalks, Bridges, car parks, sports venues and narrow field compaction, it is an ideal equipment of small compaction construction project .
