Quick Details
-
Model Number:
-
PQWT-CX160
-
Product name:
-
PQWT-CX160 Thermal Infrared Imaging Camera for Heating Pipe Leak
-
Application:
-
Industrial Temperature Measuring
-
Type:
-
Household Thermometers
-
Power supply:
-
9V Battery
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
China
-
Brand Name:
-
PQWT
-
Model Number:
-
PQWT-CX160
-
Product name:
-
PQWT-CX160 Thermal Infrared Imaging Camera for Heating Pipe Leak
-
Application:
-
Industrial Temperature Measuring
-
Type:
-
Household Thermometers
-
Power supply:
-
9V Battery

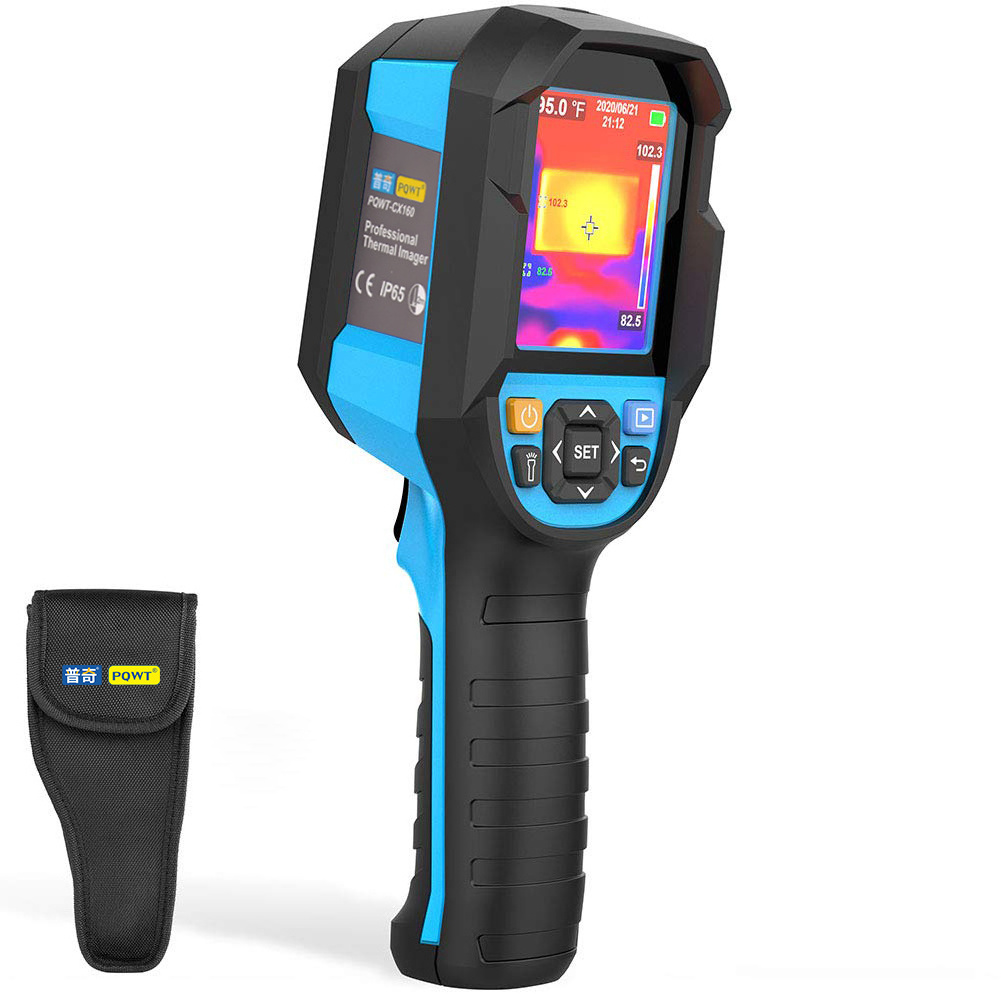

PQWT-CX160 New Product Imager Heating Pipe Locator Water Leak Repair Tool Handheld Thermal Infrared Imaging Camera
PQWT-CX160 is an infrared camera that integrates surface temperature measurement and real-time thermal image. The traditional inferred thermometer needs to measure every component one by one while it is not necessary for infrared imaging camera, thus saving time. The potential problems may be displayed on color display screen clearly.
Moreover, the central point measurement cursor is used to locate quickly and accurately to measure the temperature of the target object. In order to increase the differentiation, the product is provided with a visible light camera. The thermal images and visible images are stored in the device and can be read through USB or stored in a computer to generate a report or for print.
The product can be used in fields of medical treatment, fire,fighting,archaeology, traffic, agriculture, geology, energy, smelting, electronic manufacture, etc and is the ideal selection for electrician and maintenance personnel and technicians and can be used to find the problem area quickly.
|
Sensor |
UFPA |
|
Temperature range |
-10°C~400°C(14℉~752℉) |
|
Measurement resolution |
0.1 °C |
|
Mode |
Auto gain |
|
Accuracy |
±2.0°C(35.6°F) or ±2% |
|
Measuring distance |
25cm |
|
Response time |
500ms (95% of reading) |
|
Emissivity |
0.01~0.99 adjustable (default: 0.95) |
|
IR resolution |
19,200 pixels (160 x 120) |
|
Pixel size |
17|jm |
|
Color palette |
Iron red, rainbow, grayscale, red-white, |
|
Wavelength range |
8|jm-14|jm |
|
Field of view (FOV) |
56° (H) x 42° (V) |
|
Spatial resolution (IFOV) |
11mrad |
