Quick Details
-
Place of Origin:
-
jiangsu
-
Dimension(Long * Breadth * High):
-
2420x2180x2250
-
Machine Weight:
-
3500 kg
-
Bucket capacity:
-
0.8
-
condition:
-
new
-
type:
-
wheel loader attachments
Quick Details
-
Engine Brand:
-
AEOLUS
-
Power:
-
75 KW, 60 KW, 44.7 KW, 37 KW, 15.7 kw, 17.2 kw, 55 kw, 70 KW, 92 KW
-
Brand Name:
-
HCN
-
Place of Origin:
-
jiangsu
-
Dimension(Long * Breadth * High):
-
2420x2180x2250
-
Machine Weight:
-
3500 kg
-
Bucket capacity:
-
0.8
-
condition:
-
new
-
type:
-
wheel loader attachments
Product Description & Applications:

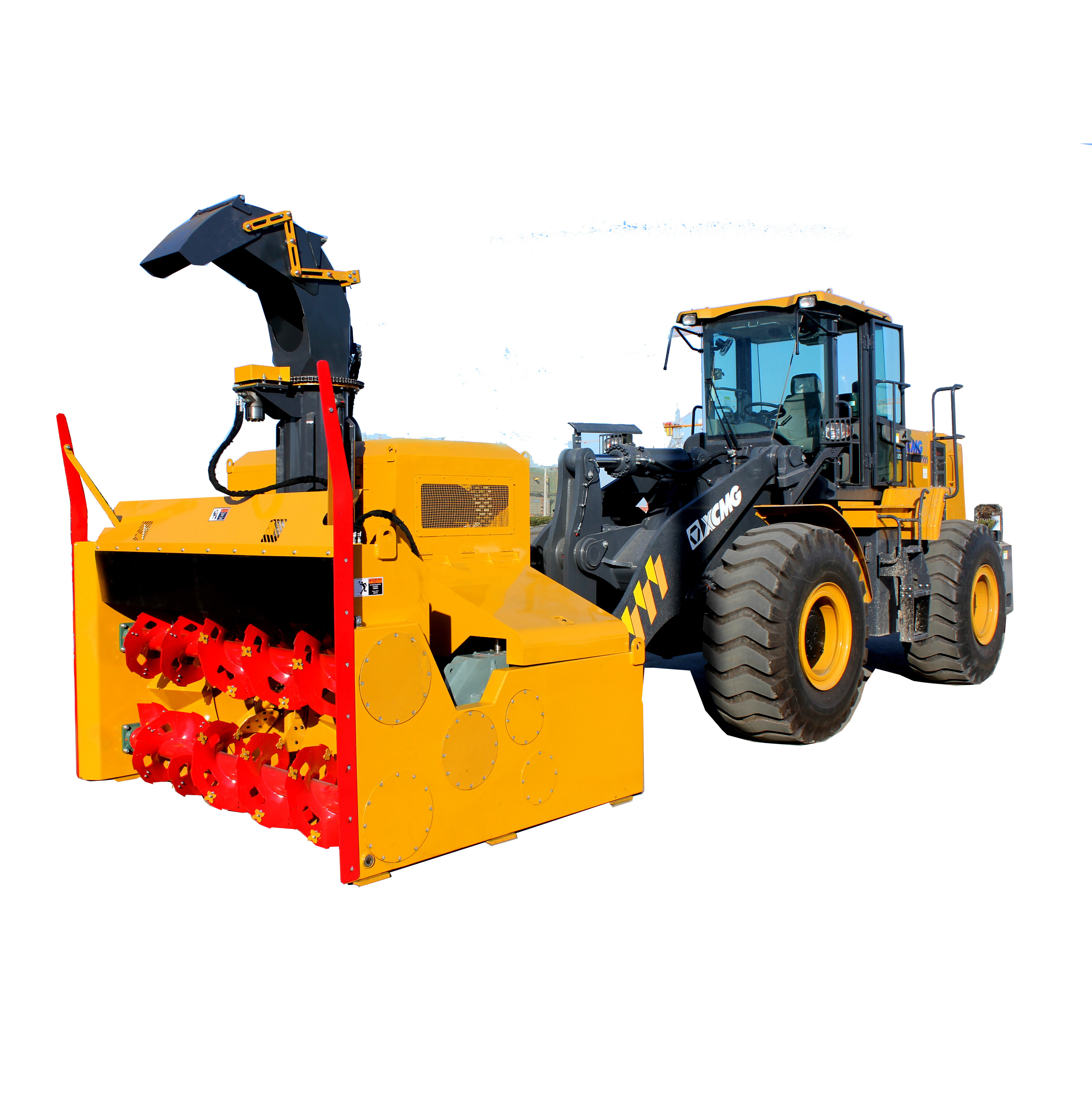

1 BM15 wheel loader attachment snow blower
2 Skid Shoes are Adjustable
3 Attaches Quickly to Most Skid Steer Loader Brands
4Two Stage Hydraulic Snow Blower Throws Snow Up to 45'.
5High Flow Models Do Not Require a Drain Electro / Hydraulic Poly-Lined Chute and Deflector.
6High-Volume 25" or 36" Shroud Opening
7Provides Excellent Visibility.
D etailed Technical Spcifications:
| Model | BM1596 | BM15105 |
| Overall Length A (mm) | 2420 |
2620
|
| Overall Width B(mm) | 917 |
1010
|
| Overall Weight (kg) | 455 |
800
|
| Flow Range(L/Min) |
90-130 |
110-150 |
| Pressure (Mpa) | 16 |
16
|
| Max. working depth(mm) | 600 | 900 |
| Max. working width(mm) | 2400 | 2600 |
| working distance(mm) | 15-20 | 15-20 |
| Max. working capacity( m 3 /h ) | 200 | 220 |
| Working speed(Km/h) | 3-5 | 3-5 |
| work rate(Kw) | 40 | 55 |
| height(m) | 3 | 3 |
| cone diameter(mm) | 500 | 500 |
More Detailed Photos:
Package&Shipping Details:
1step, iron frame package
2step, pack into the container
3step , by sea ship or by Ro-RO ship
shipping details: New ready machinery will be deliveried within 25 days after confirming the advance payment.
Warranty & After Service:
12 months or 1500 working hours counting when the end user buys the machine from the dealer / reseller. After-sales Service Provided: key parts ( Hydraulic Motor, Hydraulic Cylinder, Hydraulic Pump ) will be provided from our company if any damage occurs in the course of operation by
reason of inferior quality, bad workmanship .
