Quick Details
-
Weight (kg):
-
30 KG
-
Place of Origin:
-
Shanghai
-
Brand Name:
-
Huawei
-
Voltage:
-
220v/110v
-
Rated Power:
-
N
-
Dimension(L*W*H):
-
250*300*360mm
-
Year:
-
2019
-
After-sales Service Provided:
-
Online support
-
Name:
-
Beetle Cutting Machine
-
Cutting material:
-
Metal Stainless Steel Carbon Steel Aluminum
-
Cutting thickness:
-
6-100mm
-
Cutting mode:
-
Flame Cutting
-
Cutting speed:
-
50-750mm/min
-
Color:
-
Red or Blue
-
Weight:
-
12kg
-
Certification:
-
CE
-
Type:
-
Gas Cutting Machine
Quick Details
-
Cutting Thickness (mm):
-
5 - 60
-
Cutting Speed (mm/min):
-
1 - 750
-
Cutting Precision (mm):
-
0.1
-
Weight (kg):
-
30 KG
-
Place of Origin:
-
Shanghai
-
Brand Name:
-
Huawei
-
Voltage:
-
220v/110v
-
Rated Power:
-
N
-
Dimension(L*W*H):
-
250*300*360mm
-
Year:
-
2019
-
After-sales Service Provided:
-
Online support
-
Name:
-
Beetle Cutting Machine
-
Cutting material:
-
Metal Stainless Steel Carbon Steel Aluminum
-
Cutting thickness:
-
6-100mm
-
Cutting mode:
-
Flame Cutting
-
Cutting speed:
-
50-750mm/min
-
Color:
-
Red or Blue
-
Weight:
-
12kg
-
Certification:
-
CE
-
Type:
-
Gas Cutting Machine

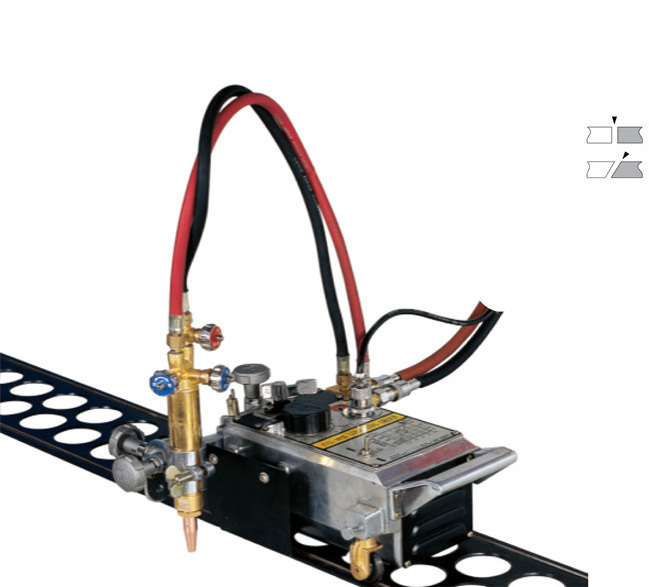

HK-12 Metal Steel Gas Cutting Machine
1. Electric outlet: Used for connection of power cable to supply electric power.
2. Speed adjuster: Turn the knob clockwise, and the machine will travel faster.
3. Clutch: The lever operation will stop driving.
4. Drive wheel: Incline the switch in the direction of the arrow to move the machine in that direction.
5. Drive wheel: Engage the clutch (ON) to transmit driving power, and the machine will begin to travel.
6. Torch side handle: This handle adjusts the lateral position of the torch.
7. Handle: Hold the handle to carry the machine. As well as for positioning.
8. Heat shield: The shield protects the machine form the heating flame.
9. Idle wheel
Specifications
|
1. Weight: |
7.5kg |
|
2.One torch with body: |
10kg |
|
3.Two torch with body: |
14kg |
|
4. Machine size: |
350×140×175mm |
|
5.Wheel distance: |
160mm |
|
6.Power source: |
±10% |
|
7.Reduction gear: |
Single cone system |
|
8. Cutting edge sharp: |
I,V (45°) |
|
9.Cutting thickness: |
6~100mm( by standard accessories) |
|
10.Moter: |
1500r.p.m |
Accessories
|
Cabtyrecode: |
1set |
|
Tip: |
102( for acetylene ) or 106(for propane) #0,1,2,one each |
|
Weigh: |
1Pc(two torch set only) |
|
Weigh supporter: |
1PC (two torch set only) |
|
Fitting: |
1PC (two torch set only) |
