Quick Details
-
Power:
-
6 KW
-
Dimension(L*W*H):
-
4300*800*1350m
-
Weight:
-
320 KG
-
Marketing Type:
-
Hot Product 2023
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YN
-
Voltage:
-
220V/380V/ Customizable
-
Power:
-
6 KW
-
Dimension(L*W*H):
-
4300*800*1350m
-
Weight:
-
320 KG
-
Marketing Type:
-
Hot Product 2023

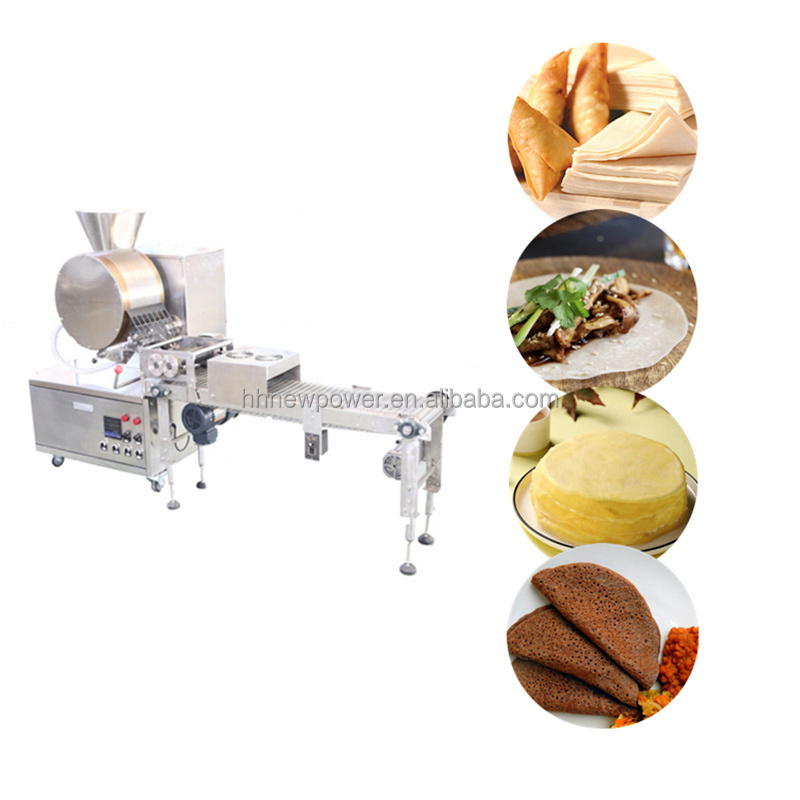

This injera/ spring roll wrapper making machine is mainly used to make spring roll sheet, crepes, fillo pastry, egg sheet pancake, and injera in 0.2-2mm thickness. Spring roll wrapper machine can make different shape sheet, like round sheet and rectangle ones. It is suitable for food factory, restaurant, fast food restaurant etc.,
Structures:
Injera wrapper making machine includes mixer, auto batter feeding part, heating & shaping cylinder, conveying & cooling part and sheet stacking part.
Working procedures:
Mix the flour and water by mixer; then put the batter into the tank, after heated 160°C, start the batter pump button, the batter will be pumped to the nozzle. When the batter is ready, it'll be separated from the oven wheel, to be the fixed thickness spring roll wrapper. After being conveyed, the final spring roll wrapper/ injera is finished.
|
Model |
YN-CJP1 |
YN-CJP2 |
YN-CJP3 |
YN-CJP4 |
|
Heating cylinder diameter |
360mm |
500mm |
800mm |
1200mm |
|
Heating power |
6.0KW or gas |
13.2KW or gas |
38kw or gas |
59kw or gas |
|
Host power |
0.75KW |
0.75KW |
0.75KW |
0.75KW |
|
Cutter power |
0.55kw |
0.55KW |
0.55KW |
0.55KW |
|
Belt power |
0.18kw |
0.55KW |
0.55KW |
0.55KW |
|
Machine size |
4.3*0.8*1.35m |
4.7*0.95*1.58m |
5.2*1*1.5m |
6.2*1.15*2m |
|
Weight |
320kg |
800kg |
1000Kg |
1200Kg |
|
Max. S heet size |
round: 180mm |
round: 280mm |
round: 430mm |
round: 500mm |
|
rectangular: 200mm |
rectangular: 290mm |
rectangular: 450mm |
rectangular: 520mm |
|
|
Sheet thickness |
0.3- 2 mm |
0.3- 2 mm |
0.3- 2 mm |
0.3- 2 mm |
|
Production capacity |
8 00-1 2 00pcs/h |
1500-2000 pcs/h |
3000-4500 pcs/h |
4500-7000p cs /h |
1. Product size, thickness, crisp, moisture, softness, hardness can be controlled.
2. Fully automatic, just need one worker, is labor saving.
3. Made of stainless steel, safe and easy to clean.
4. Can be customized according to customer's requirement.
24 hours online to answer questions that you want to know (Via WhatsApp, WeChat, Trade Messenger, Skype, etc.), or you can send an email, we will revert soon.
Sales service
1.To provide customers with the new and high quality animal feed pellet machine.
2.Provide pictures that the customer desired about the animal feed pellet machine during production, in the warehouse and before transport.
3.Payment is determined by both parties.
4.Customers to choose the mode of transport.
After-sales service
We offer one year warranty for the whole machine except easy broken parts, Providing the spare parts with favorable price all the time 24 hours online service.
