Quick Details
-
Year:
-
2022
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Qiandao
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1700x1520x2100
-
Weight (KG):
-
3000
-
Power (kW):
-
30
-
Diameter of grinding:
-
3-20
-
MOQ:
-
1
-
Function:
-
processing of formed bar, mainly for external cylindrical grinding
Quick Details
-
Grinding Diameter(Outer)(mm):
-
20
-
Table Travel (X) (mm):
-
55
-
Table Travel (Y) (mm):
-
350
-
Year:
-
2022
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Qiandao
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1700x1520x2100
-
Weight (KG):
-
3000
-
Power (kW):
-
30
-
Diameter of grinding:
-
3-20
-
MOQ:
-
1
-
Function:
-
processing of formed bar, mainly for external cylindrical grinding
Product Description

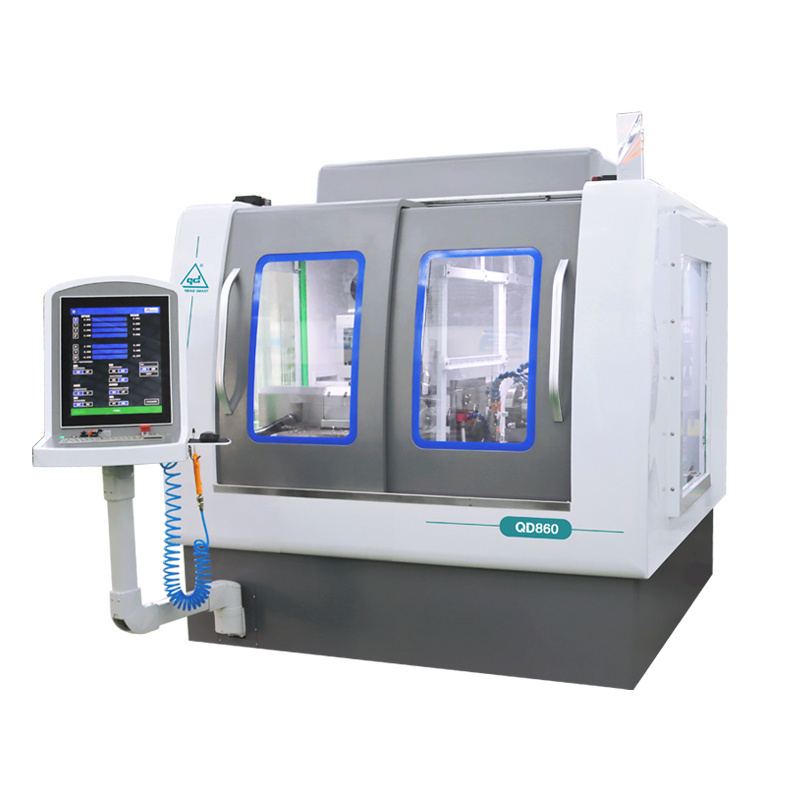

QD860 precision step difference CNC grinding machine is a cost-effective grinding machine, which is suitable for processing the shape of formed bars, mainly cylindrical grinding, and can perform chamfering, taper, arc, plane, etc. The grinding wheel assembly adopts the simultaneous grinding process of double grinding wheels, which are divided into two groups of rough grinding and fine grinding. According to the shape of the workpiece, the rough grinding wheel and the fine grinding wheel grind the workpiece successively, and complete the process of two grinding levels on the workpiece at one time. processing, improving the processing accuracy and efficiency.
Specification
|
MODEL
|
QD860
|
|
Chuck clamping workpiece range
|
Φ3~Φ20mm
|
|
Automatic clamping workpiece range
|
Φ3-Φ20mm
|
|
Workpiece Shank Diameter
|
Φ3-Φ20mm
|
|
CNC system
|
anca
|
|
Workpiece Grinding Range
|
Φ0.2-Φ20mm
|
|
Workpiece Spindle Runout
|
≤0.003mm
|
|
Rough grinding head spindle radial runout
|
≤0.005mm
|
|
Spindle runout of fine grinding head
|
≤0.005mm
|
|
Linear axis rapid traverse speed
|
15m/min
|
|
Coarse grinding head spindle speed (frequency conversion speed regulation) |
1000-10000rpm
|
|
Spindle speed of fine grinding head (frequency conversion speed regulation)
|
1000-14000rpm
|
|
Workpiece spindle speed (C axis/frequency conversion speed regulation)
|
0-3000rpm
|
|
Linear axis resolution
|
0.00lmm
|
|
Rotation axis resolution
|
0.00l°
|
|
C-axis rotation range
|
∞
|
|
Coarse grinding wheel size outer diameter
|
Φ250mm
|
|
Fine grinding wheel size outer diameter
|
Φ150mm
|
|
Table stroke -X axis
|
55mm
|
|
Table stroke -Y axis
|
350mm
|
|
Table stroke -Z axis
|
130mm
|
|
Table stroke -V axis
|
35mm
|
|
Cylinder thrust range
|
750-800KG
|
|
POWER
|
AC 380V 50HZ
|
|
The MAX power of the fine grinding head of the machine tool
|
3.5KW
|
|
Machine tool coarse grinding head max power
|
15KW
|
|
Total power
|
30KW
|
|
Size
|
1700x1520x2100mm
|
|
Weight
|
3T
|
