- Product Details
- {{item.text}}
Quick Details
-
Maximum Torque:
-
11.9nm
-
Operating Speed:
-
24000RPM
-
Model:
-
GDZ70-24Z/9
-
Power:
-
9Kw
-
Speed:
-
12000-24000rpm
-
Lubrication:
-
Greese
-
Collet:
-
HSK63F
-
Cooling type:
-
Air Cooling
-
Frequency:
-
800HZ
-
Bearing:
-
4
-
Weight:
-
35kg
Quick Details
-
Place of Origin:
-
Henan, China
-
Weight (KG):
-
35
-
Brand Name:
-
Lunyee
-
Maximum Torque:
-
11.9nm
-
Operating Speed:
-
24000RPM
-
Model:
-
GDZ70-24Z/9
-
Power:
-
9Kw
-
Speed:
-
12000-24000rpm
-
Lubrication:
-
Greese
-
Collet:
-
HSK63F
-
Cooling type:
-
Air Cooling
-
Frequency:
-
800HZ
-
Bearing:
-
4
-
Weight:
-
35kg
Product Description
|

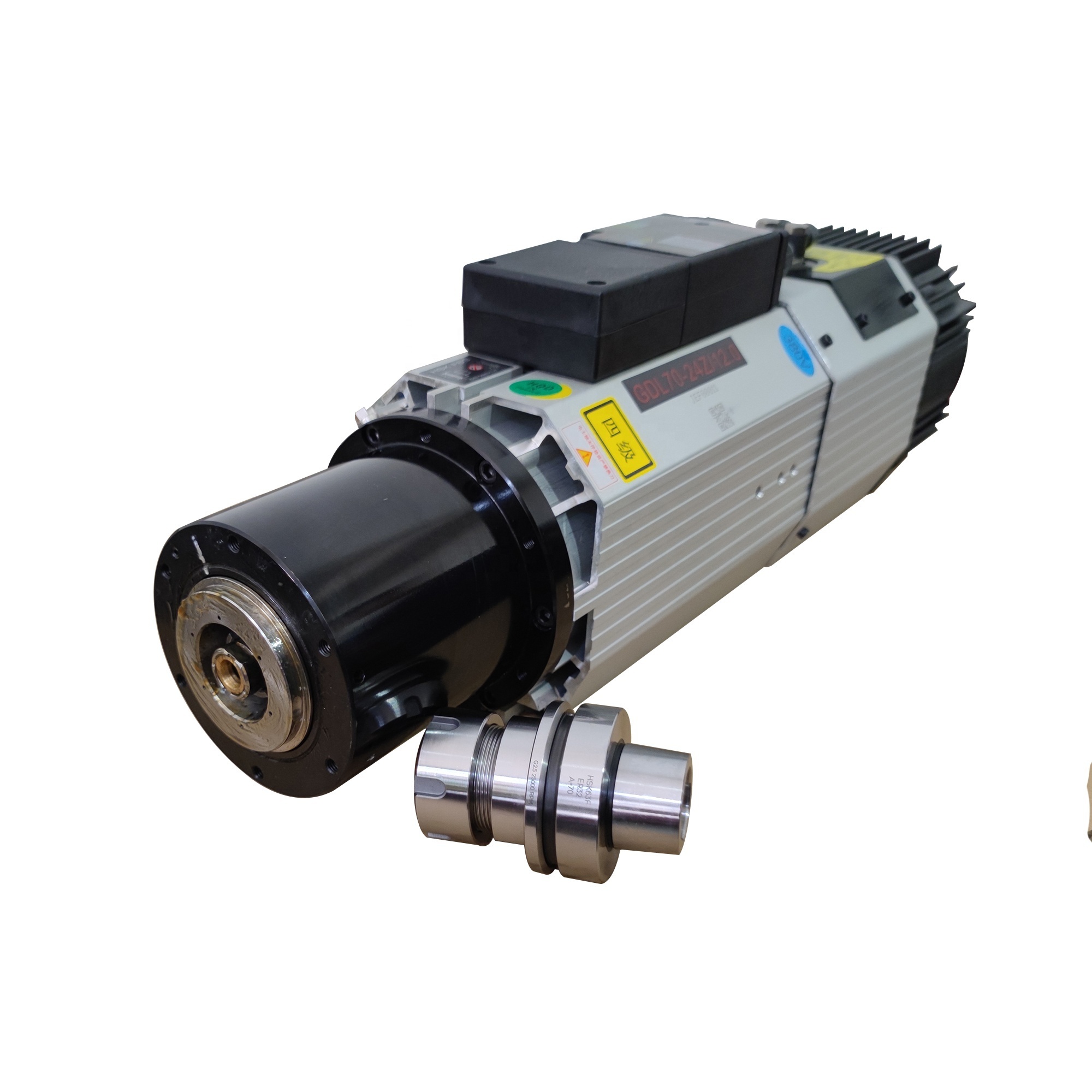

Type
|
Air ATC Spindle Motor
|
|
Model
|
GDZ70-24Z/12-4
|
|
Rated Power
|
12KW
|
|
Speed
|
24000RPM
|
|
Voltage
|
380VAC
|
|
Current
|
20A
|
|
Frequency
|
400-800Hz
|
|
Collet
|
HSK63F
|
|
Bearing type
|
2*7009C/P4, 2*7006C/P4
|
Important Note
1.Before Place order,pls leave message to confirm long nose or short nose;
2.Also pls confirm the voltage need,380V;
3.If no requirement,we will send our default type:
380V and Long Nose
