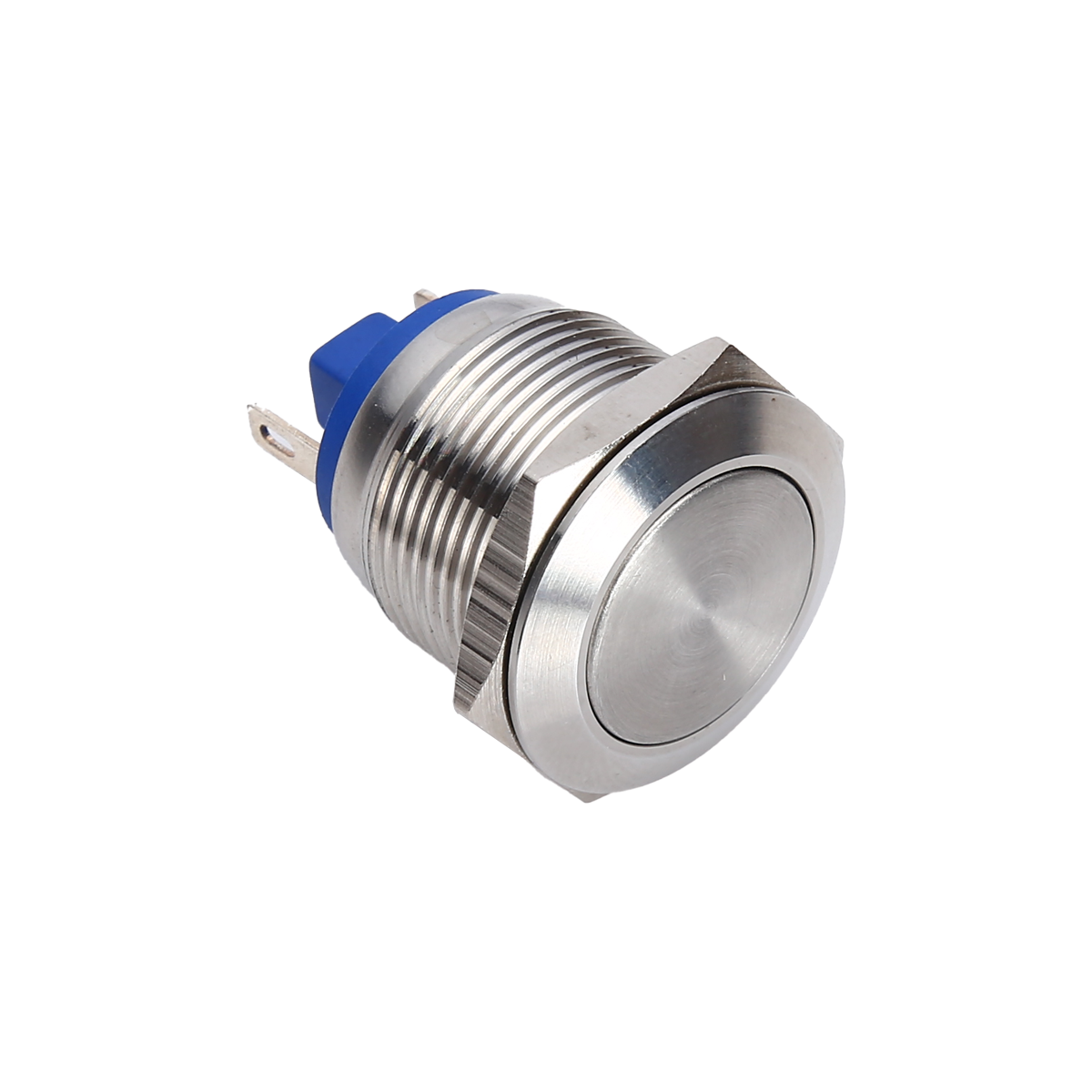

Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ONPOW
-
Model Number:
-
GQ19F-10/J/S
-
Dia.:
-
19mm
-
Head shape:
-
Flat
-
Contact Configuration:
-
1NO
-
Operation Type:
-
Momentary
-
Crust Material:
-
Stainless steel
-
Operation pressure:
-
About 4N
-
Certifications:
-
CE, RoHS
-
Certification:
-
CE
Quick Details
-
Protection Level:
-
IP65
-
Max. Current:
-
2A
-
Max. Voltage:
-
36V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ONPOW
-
Model Number:
-
GQ19F-10/J/S
-
Dia.:
-
19mm
-
Head shape:
-
Flat
-
Contact Configuration:
-
1NO
-
Operation Type:
-
Momentary
-
Crust Material:
-
Stainless steel
-
Operation pressure:
-
About 4N
-
Certifications:
-
CE, RoHS
-
Certification:
-
CE
ONPOW Push Button Manufacture C o.,Ltd . is currently one of the leading , fast developing manufacturer of push button switches and indicators.
- Founded in 198 8 and experienced in the field of pushbutton switches for 27 years
- Certification:we have passed ISO9000 Quality Management System and UL,VDE,CE(LVD),CE(EMC),PSE,CCC,ROHS,REECH
- More than 40 patents
- About 40 series of pushbutton switches and 1-2 new series of production developed each year
- Over 1500 molds available for production
-Registered Fund: About 50 million RMB
|
Model Number |
GQ19F-10/J/S |
|
|
Mountin g hole size |
19mm Diameter |
|
|
Switch R ating |
2A / 36VDC |
|
|
Contact Configuration |
1NO |
|
|
Operation Type |
Momentary |
|
|
Head S hape |
Flat |
|
|
Crust M aterial |
Stainless steel |
|
|
IP Degree |
IP65 |
|
|
|
||
|
Terminal Type |
Pin terminal |
|
|
Switching |
x(double-break slow-motion contact) |
|
|
Panel Thickness |
1 ~6 mm |
|
|
Torque |
5 ~ 14Nm |
|
|
Mechanical Life |
1,000,000 cycles |
|
|
Electrical Life |
200,000 cycles |
|
|
Operation Pressure |
About 4N |
|
|
Operation Travel |
About 2.5mm |
|
|
Material
|
Contact |
Sliver Alloy |
|
Button |
Stainless Steel |
|
|
Body |
Stainless Steel |
|
|
Base |
PBT |
|
Packing: switches with high flat button
1. Neutral packing : 40 pcs/box, 25boxes/carton
2. Upon customers' request, but the price is different with neutral packing
3. Carton size: 30*50*35 cm
Shipping: switches with high flat button
1. DHL, TNT, Fedex, UPS and other international express.
2. By air or by sea.
