Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HITBOT
-
Weight:
-
11 kg
-
Dimension(L*W*H):
-
200x200x500mm
-
Power:
-
320W
-

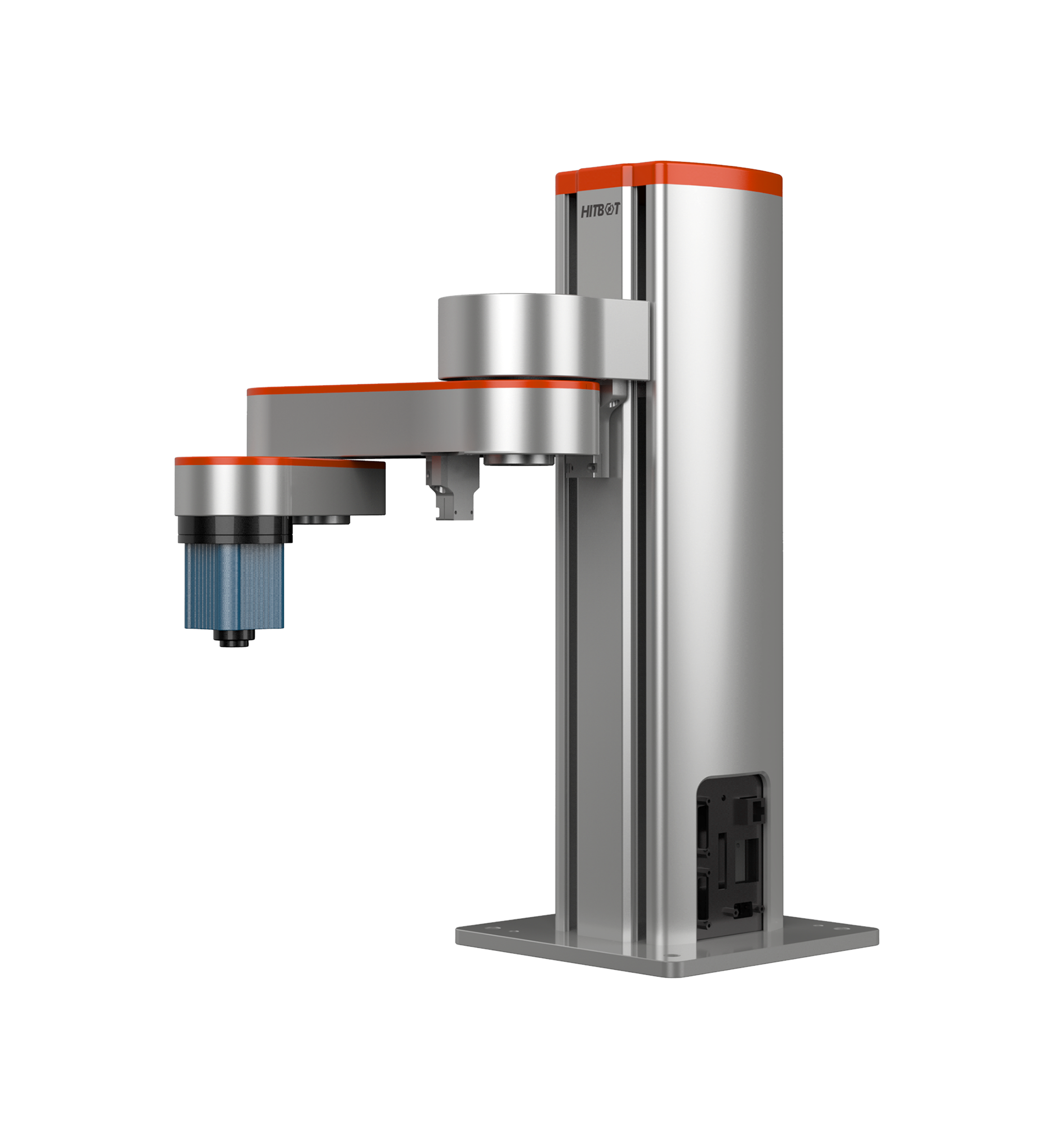

Product name:
-
HITBOT Arm Robot
-
Model:
-
Z-arm 1832
-
Programming software:
-
HitbotStudio
-
Number of axis:
-
4
-
Maximum payload:
-
1KG
-
Maximum reach:
-
320mm
-
Z-axis reach:
-
180mm (Customizable)
-
Repeatability:
-
±0.02mm
-
Connectivity:
-
Wi-Fi/Ethernet
Quick Details
-
Warranty:
-
1 Year
-
Vertical Travel(mm):
-
180mm
-
Horizonal Travel(mm):
-
320mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HITBOT
-
Weight:
-
11 kg
-
Dimension(L*W*H):
-
200x200x500mm
-
Power:
-
320W
-
Product name:
-
HITBOT Arm Robot
-
Model:
-
Z-arm 1832
-
Programming software:
-
HitbotStudio
-
Number of axis:
-
4
-
Maximum payload:
-
1KG
-
Maximum reach:
-
320mm
-
Z-axis reach:
-
180mm (Customizable)
-
Repeatability:
-
±0.02mm
-
Connectivity:
-
Wi-Fi/Ethernet
Product Description
Products Description
|
Item
|
Value
|
|
|
Item No.
|
Z-Arm 1832
|
|
|
Z Axis Reach
|
180mm
|
|
|
R Axis Reach
|
±1080°
|
|
|
Number of axis
|
4
|
|
|
Height
|
500mm
|
|
|
Weight
|
11KG
|
|
|
Machine Base Size: Footprint
|
200*200*10mm
|
|
|
Rated Payload
|
0.5KG
|
|
|
Maximum Payload
|
1KG
|
|
|
Linear Velocity
|
1017mm/s
|
|
|
Repeatability
|
±0.02mm
|
|
|
Voltage
|
220V/110V 50-60Hz DC24V/Power 320W
|
|
|
Communication
|
Ethernet
|
|
|
Customizable Z-axis height
|
0.1-0.5 meter
|
|
|
Supportable HITBOT Grippers
|
Z-EFG-8S / Z-EFG-12 / Z-EFG-20 / Z-EFG-20S
|
|
|
Working Environment
|
Temperature: 0-45℃, Humidity: RH20-80 (No Frost)
|
|
|
|
|
|
