Quick Details
-
Output Speed:
-
1.5~1200rpm(customized)
-
Warranty:
-
1 year
-
Weight (KG):
-
75
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TIANQI
-
Pole:
-
four stage six stage
-
Ratio:
-
1.3-289.74
-
Housing Material:
-
Cast Iron
-
Material:
-
20CrMn
-
Working temperature:
-
-40~45℃
-
Type:
-
helical small differential gear box motor gears washing machine
-
Process:
-
Carburizing, Nitriding , Grinding
-
Efficiency:
-
92%~96%
-
Mounting Position:
-
Horizontal,Vertical,Flange
-
Color:
-
Blue,Green,Gray,Red
Quick Details
-
Gearing Arrangement:
-
Helical
-
Output Torque:
-
375~519520Nm(customized)
-
Input Speed:
-
300~1800rpm(customized)
-
Output Speed:
-
1.5~1200rpm(customized)
-
Warranty:
-
1 year
-
Weight (KG):
-
75
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TIANQI
-
Pole:
-
four stage six stage
-
Ratio:
-
1.3-289.74
-
Housing Material:
-
Cast Iron
-
Material:
-
20CrMn
-
Working temperature:
-
-40~45℃
-
Type:
-
helical small differential gear box motor gears washing machine
-
Process:
-
Carburizing, Nitriding , Grinding
-
Efficiency:
-
92%~96%
-
Mounting Position:
-
Horizontal,Vertical,Flange
-
Color:
-
Blue,Green,Gray,Red
PROFESSIONAL MANUFACTURE
—— SINCE 1995

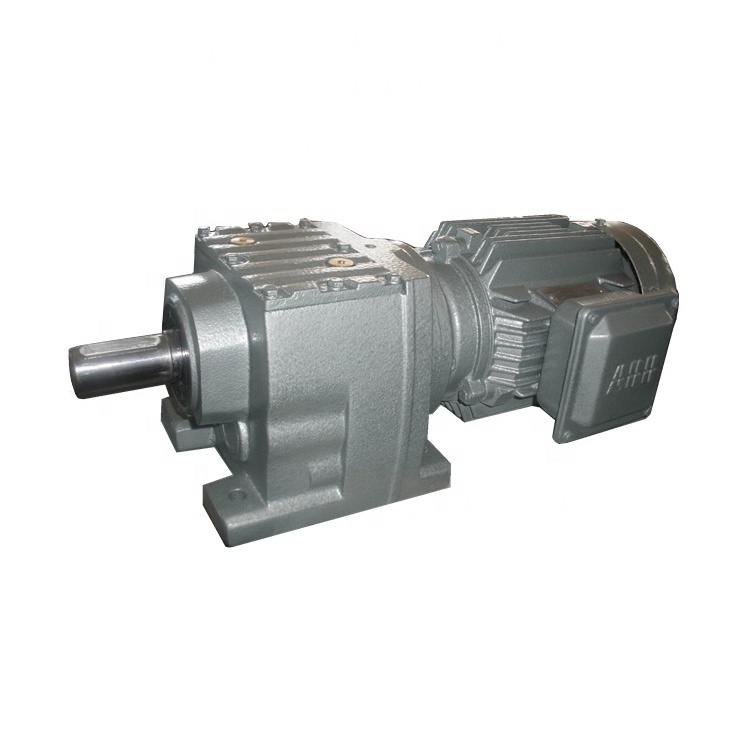

R series Helical Gear Motor Reducer
Hard Tooth Sureface Gear/industrial motor gearbox manufacturers
R RF107 helical small differential gear box motor gears washing machine
Designed on the basis of modular combined system,
the gear reducer have abundant combinations of motor, mounting position and structure projects,
the classifying class of transmission ratio is detailed,
which is suitable for different working situation and realize mechatronics.
Feature:
- It realized serialization and modularization with compact structure and wide range of transmission ratio. The transmission efficiency reach up to 96%.
- The gear processed by Carburizing, Nitriding & Grinding.
- High efficiency, superior performance with less energy consumption
- High precision gear, steady transmission, low noise, large load capacity, long service life.
- Has various of installation method.3: 1 ratio reduction gearbox Chinese industrial motor gearbox manufacturers.
R series transmission reduction gearbox reducer motor gear box:
Model selection :
Closely using the ideal reduction ratio.
Reduction ratio = servo motor speed / reducer output shaft speed
Torque calculation: Torque calculation is very important for the life of reducer, and pay attention to whether the maximum torque value (TP) of acceleration exceeds the maximum load torque of the reducer.
The applicable power is usually the applicable power of the servo models on the market, the applicability of the reducer is very high, the working coefficient can be maintained above 1.2, but the choice can also be based on their own needs to decide. 3: 1 ratio reduction gearbox Chinese industrial motor gearbox manufacturers.50:1. R RF107 helical small differential gear box motor gears washing machine.
| SIZE | R17 | R27 | R37 | R47 | R57 | R67 | R77 | R87 | R97 |
| WEIGHT(KG) | 4 | 5.5 | 8.5 | 10 | 18 | 25 | 36 | 63 | 101 |
| SIZE | R107 | R137 | R147 | R167 | RX87 | RX97 | RX107 | RX127 | RX157 |
| WEIGHT(KG) | 153 | 220 | 400 | 700 | 39 | 70 | 100 | 150 | 250 |
Chinese Gear Reducer is a mechanical transmission in many fields of the national economy. The product categories covered by the industry include all kinds of gear reducer, planetary gear reducer and worm reducer, as well as various special transmission devices such as speed increasing device, speed control Devices, including various types of flexible transmission devices, such as compound transmission. Products and services in the field of metallurgy, nonferrous metals, coal, building materials, ships, water conservancy, electricity, construction machinery and petrochemical industries.
In all fields of national economy and national defense industry, gearbox products have a wide range of applications. Food light industry, electric machinery, construction machinery, metallurgy machinery, cement machinery, environmental protection machinery, electronic appliances, road construction machinery, water conservancy machinery, chemical machinery, mining machinery, conveyor machinery, building materials machinery, rubber machinery, petroleum machinery and other industries have strong demand of Reducer products. 3: 1 ratio reduction gearbox Chinese industrial motor gearbox manufacturers.helical small differential gear box motor gears washing machine.
