Quick Details
-
Controller Type:
-
MPPT
-
Certificate:
-
CE
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ONESUN
-
Output Voltage (V):
-
51.2V
-
Total Kit:
-
6kw inverter+51.2V300ahbattery+100 meters PV cable+Set of accessories
-
European Effciency:
-
97.00%
-
MPPT Voltage Range:
-
90~500V
-
Frequency:
-
50Hz/60Hz
-
THDi:
-
<3%
-
Rated Power:
-
6000W
-
Degree of Protection:
-
IP65
-
Display:
-
LCD
-
Safety Standard:
-
EN/IEC 62109-1,EN/IEC 62109-2
-
Packing:
-
Standard Wooden Box
Quick Details
-
Application:
-
Home
-
Solar Panel Type:
-
Monocrystalline Silicon
-
Battery Type:
-
Lithium Ion
-
Controller Type:
-
MPPT
-
Certificate:
-
CE
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ONESUN
-
Output Voltage (V):
-
51.2V
-
Total Kit:
-
6kw inverter+51.2V300ahbattery+100 meters PV cable+Set of accessories
-
European Effciency:
-
97.00%
-
MPPT Voltage Range:
-
90~500V
-
Frequency:
-
50Hz/60Hz
-
THDi:
-
<3%
-
Rated Power:
-
6000W
-
Degree of Protection:
-
IP65
-
Display:
-
LCD
-
Safety Standard:
-
EN/IEC 62109-1,EN/IEC 62109-2
-
Packing:
-
Standard Wooden Box
Specification
|
Product Name
|
Model no.
|
Specifications
|
Warranty
|
|
Solar panels
|
SUNIZE 550P- 144M
|
550W
|
10 Years
|
|
All-in-one
|
SUNIZE WSA 6KW-51.2V(battery 3pcs)
|
6KW all-in-one 15KWH（1set)
|
inverter 5 Years
battery 10 Years |
|
PV Cable
|
ONESUN PV1-F1*6mm²
|
100 meters
|
10 Years
|
|
Accessories
|
|
MC4 connector, fuse, diode etc
|
10 Years
|
|
Accessories
|
|
MC4 connector, fuse, diode etc
|
10 Years
|

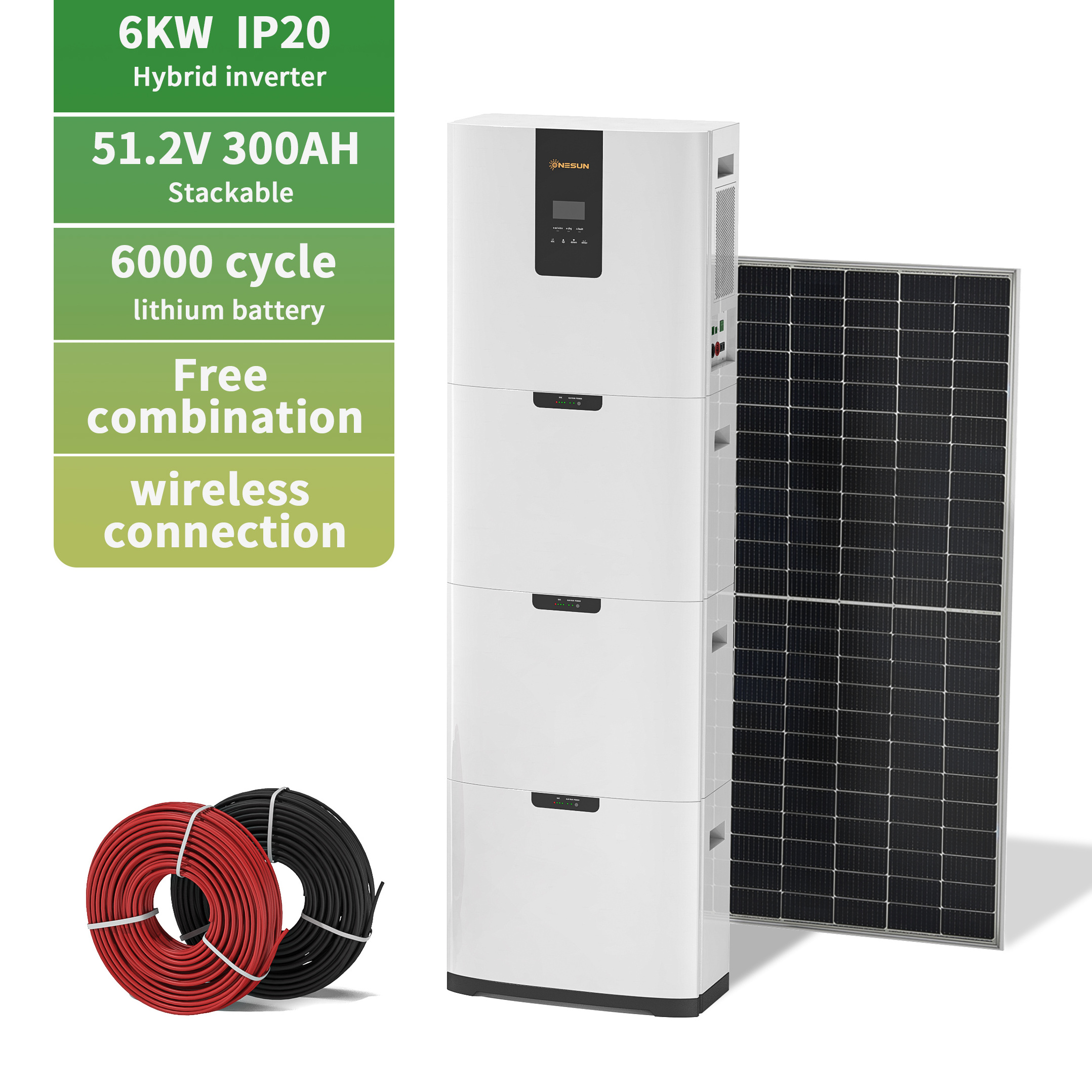

Stackable ALL-IN-ONE Solar System
|
Voltage Range：170~280VAC (For Personal Computers) ; 90~280VAC (For Home Appliances)
|
Transfer Time：10ms (For Personal Computers) ; 20ms (For Home Appliances)
|
|
Frequency Range：50Hz / 60Hz (Self-adapting)
|
Nominal Voltage：51.2V
|
|
IP Protection：IP20 (Inverter)
|
MPPT Input Voltage Range：60~450VDC
|
|
MAX Input Current：27A
|
MAX PV Array Open Voltage：500V
|
|
Interface：RS485 / RS232 / CAN
|
Efficiency(peak):93.5%
|
410W/460W/550W Solar Panel
|
Rated Power: 550W
|
Solar Cell: Monocrystalline
|
|
Structure: 3.2 Highly permeable coated toughened
glass +EVA film + white back panel |
Open Circuit Voltage(Voc): 49.95V
|
|
Short circuit current: 11.17A
|
Maximum current: 13.11A
|
|
Maximum System Voltage:DC 1500V
|
Temperate coefficient of Isc: (010+/-0.01)%/℃
|
|
connector:MC4
|
Temperature range: －40℃～ +85℃
|
|
Frame: anodized aluminum alloy
|
Fire rating:Glass C
|
|
Size of extension cable: 6mm²
|
Maximum power Pmax/W:309/343/414
|
