Quick Details
-
Application:
-
Villa
-
Type:
-
AC-400mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CHISUNG
-
Model Number:
-
CSSGO-12
-
Name:
-
Swing gate opener CSSGO-12
-
Motor:
-
AC110V/AC220V
-
Power supply:
-
AC110V/60Hz (or AC220V/50Hz)
-
Absorbeb power:
-
320W
-
Operating Temperature:
-
-20°C~+60°C
-
Max.Weight of each gate:
-
500 kgs
-
Max.Width of each gate:
-
3.5meters
-
Travel:
-
400mm
-
Motor Speed:
-
1.6cm/s
-
Current:
-
1.5A(220AC
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
NONE
-
Application:
-
Villa
-
Type:
-
AC-400mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CHISUNG
-
Model Number:
-
CSSGO-12
-
Name:
-
Swing gate opener CSSGO-12
-
Motor:
-
AC110V/AC220V
-
Power supply:
-
AC110V/60Hz (or AC220V/50Hz)
-
Absorbeb power:
-
320W
-
Operating Temperature:
-
-20°C~+60°C
-
Max.Weight of each gate:
-
500 kgs
-
Max.Width of each gate:
-
3.5meters
-
Travel:
-
400mm
-
Motor Speed:
-
1.6cm/s
-
Current:
-
1.5A(220AC
Product Description

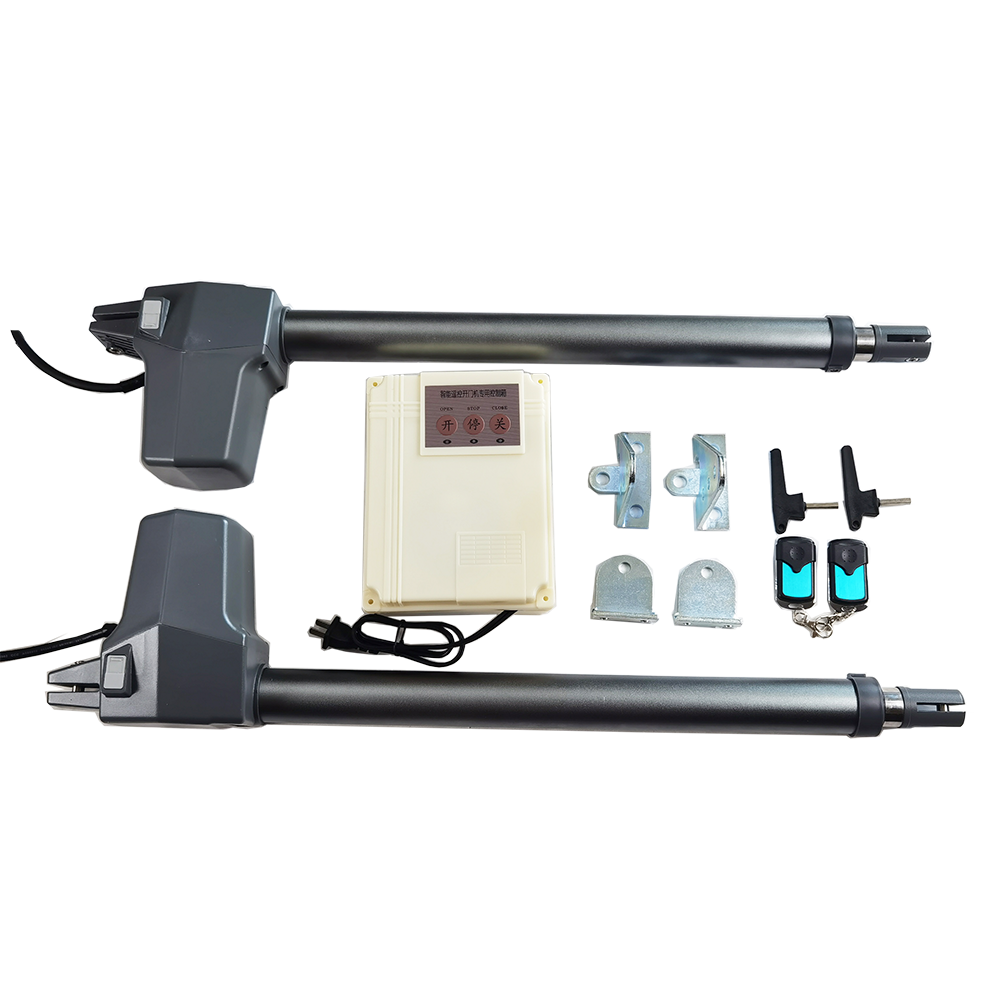

CSSGO-12
Electric Linear Actuator ,AC Model
Features
1.Soft start and soft stop
2. Emergency release key in case of power failure
3. Adjustable opening/closing interval between master and slave gate
4. Stop/Reverse in case of obstruction during gate opening/closing
5. Optional photocell protection
6. Built -in adjustable auto-close (0-99 seconds)
7. Digital display indicates the running situation and setting menu
8. Reliable limit switch(electromagnetism) for easy adjustment
9. Built-in max motor running time( MRT) adjustable for multiple safety protection
10.Easy to handle and low maintenance
11.AC model , More stable, with overheating protection function
12.Guarantee: normally one year after the shipping,but our after sales service last for
lifelong time
13.Packing: High quality carton packaging, can be customized LOGO carton ;
1.Soft start and soft stop
2. Emergency release key in case of power failure
3. Adjustable opening/closing interval between master and slave gate
4. Stop/Reverse in case of obstruction during gate opening/closing
5. Optional photocell protection
6. Built -in adjustable auto-close (0-99 seconds)
7. Digital display indicates the running situation and setting menu
8. Reliable limit switch(electromagnetism) for easy adjustment
9. Built-in max motor running time( MRT) adjustable for multiple safety protection
10.Easy to handle and low maintenance
11.AC model , More stable, with overheating protection function
12.Guarantee: normally one year after the shipping,but our after sales service last for
lifelong time
13.Packing: High quality carton packaging, can be customized LOGO carton ;
14 .It could work with Lock ,Warning Lamp ,GSM Gate Opener ,WIFI etc .
Specification
|
1
|
Power Supply
|
AC220V±10V 50/60HZ
|
|
2
|
Electric motor
|
AC220V/110V
|
|
3
|
Motor speed
|
1.6cm/s
|
|
4
|
Operating Temperature
|
-20°C~+60°C
|
|
5
|
Relative Humidity
|
≤95%, No Condensation
|
|
6
|
Power of motor
|
320W
|
|
7
|
Max Each leaf length
|
3.5m
|
|
8
|
Rotational speed
|
1800RPM
|
|
9
|
Single arm Max gate weight
|
500Kg
|
|
10
|
Running time protection
|
Adjustable
|
|
11
|
Current
|
1.5A(220AC)
|
|
12
|
Rod's max travel
|
400mm
|
|
13
|
Auto closing delay time
|
Adjustable
|
|
14
|
Gate move speed
|
12m/min
|
|
15
|
Application
|
home automation
|
|
16
|
Protection class
|
IP45
|
Packing & Delivery
FAQ
This CSSGO-12 has 4 types
1.
AC 230V/120V motor, IP54, Max gate weight:500kg, Max leaf length:3.5m,400mm stroke,
2.
AC 230V/120V motor, IP54, Max gateweight:500kg, Max leaf length 4m,600mm stroke,
3.
DC 24V motor , IP54, Max gate weight:500kg, Max leaf length:2.5m, 400mm stroke,
4.
DC 24V motor, IP54, Max gate weight:500kg, Max leaf length:3m,600mm stroke,
At the same Time ,
CSSGO-12 's parameters are same as CSSGO-05,
the motor is same, Just the shape design is different.
