1. Customer's site installation, training & maintenance available
2. 1-12 hours Online service by Email, Fax, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Recommend equipment of top choice based on your requirements for product;
5. Examining mold drawings on your behalf to confirm optimum structure size meeting high frequency process;
6. Providing assistance in manufacturing and modifying tools;
- Product Details
- {{item.text}}
Quick Details
-
Frequency:
-
27.12KHz
-
Welding Area:
-
depende on the moulds
-
Dimensions:
-
1700*1070*1570mm
-
Use:
-
Reflective Keychain Welding
-
Weight (KG):
-
450 KG
-
Power (kW):
-
5
-
Product:
-

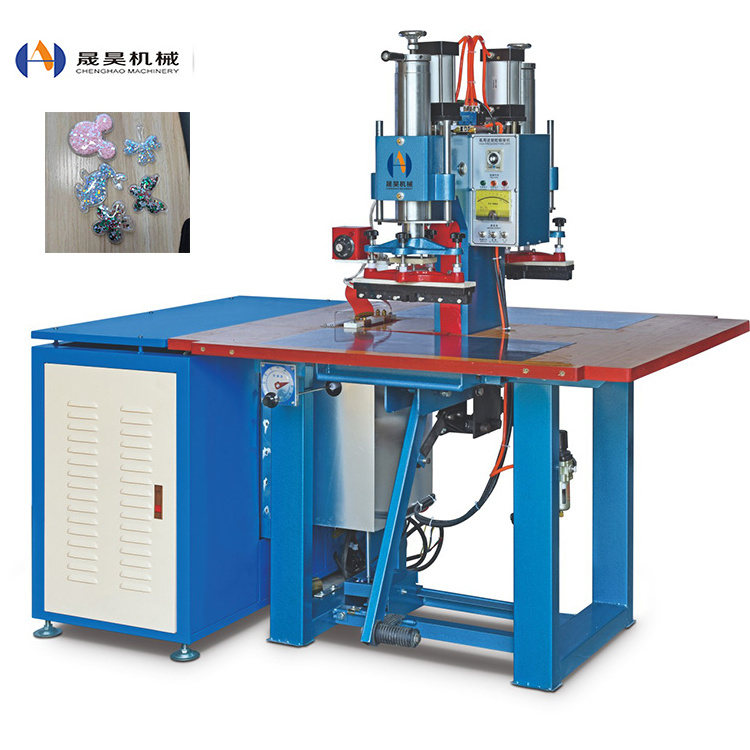

Double Head HF Plastic Welding Machines Welder
-
Usage:
-
Welding or Sealing
-
Rectifier:
-
Sillcon Diode
-
Output Power:
-
5KW,8KW of HF Plastic Welder
-
Driven Type:
-
Pheumatic for hF welding mchine
-
Device feature:
-
Anti-spark protection Jamming prevention device
-
Function:
-
Second Double Welding Machine
-
Certificate:
-
CE ISO Certificate
-
Package:
-
Wooden Case
-
Other name:
-
High Frequency PVC Welding Machine
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CHENGHAO MACHINERY
-
Voltage:
-
220V/380V or Customized
-
Frequency:
-
27.12KHz
-
Welding Area:
-
depende on the moulds
-
Dimensions:
-
1700*1070*1570mm
-
Use:
-
Reflective Keychain Welding
-
Weight (KG):
-
450 KG
-
Power (kW):
-
5
-
Product:
-
Double Head HF Plastic Welding Machines Welder
-
Usage:
-
Welding or Sealing
-
Rectifier:
-
Sillcon Diode
-
Output Power:
-
5KW,8KW of HF Plastic Welder
-
Driven Type:
-
Pheumatic for hF welding mchine
-
Device feature:
-
Anti-spark protection Jamming prevention device
-
Function:
-
Second Double Welding Machine
-
Certificate:
-
CE ISO Certificate
-
Package:
-
Wooden Case
-
Other name:
-
High Frequency PVC Welding Machine
Product Paramenter
|
Model
|
CH-5KW
|
|
HF Power
|
5KW
|
|
HF Frequency
|
27. 12MHZ
|
|
Osclillation Tube
|
7T85RB
|
|
Anti Spark System
|
NL-5557 high sensitive
|
|
Rectifier
|
Silicon Diode
|
|
Voltage
|
AC 220V-440V 3Phases, can customize
|
|
Input Power
|
8KVA
|
|
Operations Mode
|
Pneumatic
|
|
Pneumatic Max. Pressure
|
500KG
|
|
Control Method
|
HMI Panel+Pedal control
|
|
Upper Electrode
|
120*290mm
|
|
Lower Platen
|
350*700mm
|
|
Heat Temp
|
Max. 200°
|
|
Standard
|
CE ISO Certificate
|
|
Packing Information
|
Machine Size: 1700*1070*1570mm; Weight:450kg; Wooden Packing: 3.5CBM
|
