Quick Details
-
Marketing Type:
-
hot product
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
Forging, Melting, Hardening, Brazing, Heating treatment
-
Power:
-
30KW
-
Name:
-
hand held portable Induction heating machine
-
Weight:
-
60 kg
-
Product name:
-
Frequency Induction Heating Machine
-
Certification:
-
ISO9001
-
Color:
-
Green
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MY-30KW induction heating machine
-
Weight (KG):
-
30
-
Marketing Type:
-
hot product
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
Forging, Melting, Hardening, Brazing, Heating treatment
-
Power:
-
30KW
-
Name:
-
hand held portable Induction heating machine
-
Weight:
-
60 kg
-
Product name:
-
Frequency Induction Heating Machine
-
Certification:
-
ISO9001
-
Color:
-
Green

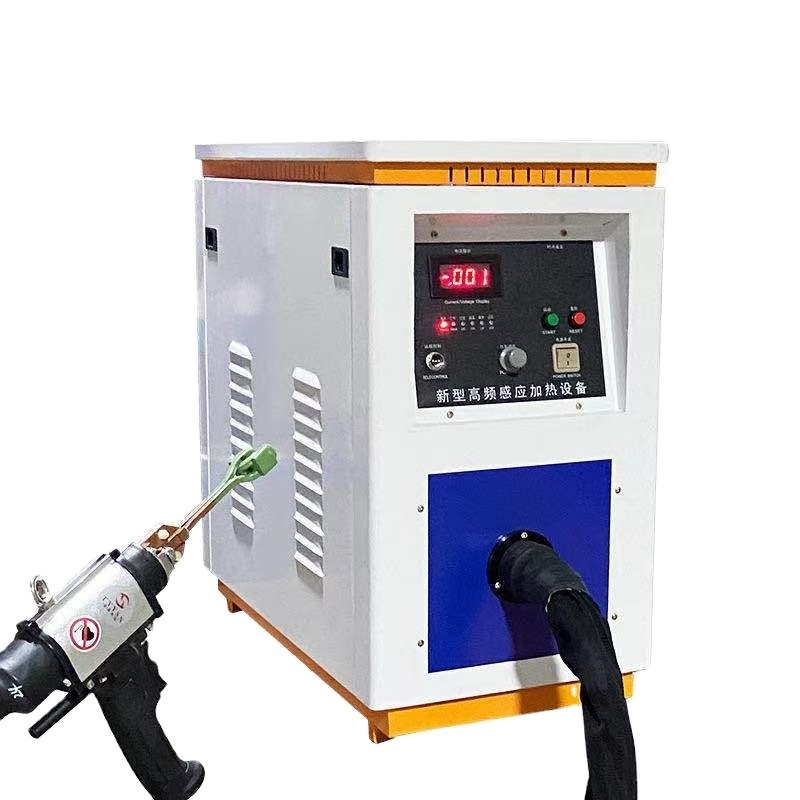

High Frequency portable Handheld induction heating machine
10 KW 20KW 30KW handheld induction heating machine
Hand Held Portable High frequency induction heating machine for brazing forging hardening tempering machine
High frequency Induction heating equipment for steel bar and pipe heating
Application:
u Brazing
u Forging
u Hardening Tempering
u Annealing Quenching
u Melting
u Other heating treatment
Features:
u Model: 15KW, 25KW, 35KW 45KW
u IGBT Type
u Frequency: 30 ~ 100KHZ
u 24 Hour counitinous work
u Voltage & current full display. Adjust heating, Holding time
u Easy to operate and more stable
u Design different type indcution coil
|
Model |
MYH-10KW |
MYH-20KW |
MYH-30KW |
MYH-40KW |
|
Input Voltage |
3 x 380V, 50/60HZ |
|||
|
Input Current |
1 ~ 15A |
1~ 30A |
1~ 45A |
1~ 60A |
|
Output Power |
1 ~10 KW |
1~20KW |
1~30KW |
1~40KW |
|
Output Frequency |
30 ~ 100KHZ |
|||
|
Power Duty |
100% duty output Power |
|||
|
Cooling Water |
>0.2 Mpa > 6L/Min |
|||
|
Water Temperature |
< 45 C |
|||
|
Weight |
35 kg |
40 kg |
50kg |
60 kg |
|
Induction coil |
2 |
2 |
2 |
2 |
Application:
u Heat treatment for various hardware and tools, such as plier, wrench, hammer, ax,screwing tools and shear
u Heat treatment for various automobile and motorcycle fittings, such as crankshaft,connecting rod, piston pin, chain wheel, aluminum wheel, valve, rock arm shaft,semi drive shaft, small shaft and fork.
u Heat treatment for various electric tools, such as gear and axes.
u Heat treatment for machine tools,such as lathe deck and guide rail.
u Hardening for various hardware metal parts and machined parts, such as shaft, gear chain wheel, cam, chuck and clamp etc.
u Heating for hardware molds, such as small-size mold, mold accessory and inner hole of mold.
u Annealing of various stainless steel products, such as stainless steel basin, annealed and extruded can, annealed folded edge, annealed sink, stainless steel tube, tableware and cup.
u Forging of various other metal work pieces, such as round steel, sheet/plate, pipe and others.
