Quick Details
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
1220 kg
-
After-sales Service Provided:
-
Overseas third-party support available
-
Color:
-
Determined by customer
-
Gas consumption:
-
0.032-0.11
-
Entrance concentration:
-
200g/m3
-
Export concentration:
-
30mg/m3
-
Pulse valve:
-
4-14pcs
-
Model Number:
-
HMC
-
After Warranty Service:
-
Spare parts
-
Certification:
-
CE GS ISO Certificate
Quick Details
-
Minimum Particle Size:
-
0.5
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
kuntai
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
1220 kg
-
After-sales Service Provided:
-
Overseas third-party support available
-
Color:
-
Determined by customer
-
Gas consumption:
-
0.032-0.11
-
Entrance concentration:
-
200g/m3
-
Export concentration:
-
30mg/m3
-
Pulse valve:
-
4-14pcs
-
Model Number:
-
HMC
-
After Warranty Service:
-
Spare parts
-
Certification:
-
CE GS ISO Certificate
Air Pollution Control System Industrial Filter Cartridge Dust Collector
Product Description
Industial dust collector is a small dust collector. It adopts cylindrical filter bag,own system fan, pulse jet ash removal mode, has high purification efficiency, good effect of ash removal,small resistance, filter bag long life, easy maintenance, and safe and reliable operation.
Widely used in metallurgy, building materials, machinery, chemical industry, mining, etc all kinds of processsystem of dust purification and recycling materials.
Two series of twelve specifications dust filter, each kind of specification can be divided into the standard with ash bucket A type and open flange type B (no ash bucket, applicable to warehouse top).
Product features
1. Using pulse high-pressure compressed air blowing dust, soot cleaning thoroughly.
2. Single filter bag dust in turn, do not affect dust removal unit work.
Structure description
HMC series bag pulse (single) dust filter consists of filter room, filter bag, net gas chamber, ash bucket, flap valve, pulse injection device, system fan, electric cabinet, etc.
Technical parameters
|
TYPE |
HMC-32 |
HMC-48 |
HMC-64 |
HMC-80 |
HMC-96 |
HMC-112 |
|||||
|
Total filtering area(m2) |
24 |
36 |
48 |
60 |
72 |
84 |
|||||
|
Filter wind speed(m/min) |
1.0-1.5 |
||||||||||
|
Air volumn(m3/h) |
1500-2400 |
2500-3500 |
3500-5000 |
4500-6000 |
5500-7000 |
6500-8500 |
|||||
|
Quantity of filter bag(piece) |
32 |
48 |
64 |
80 |
96 |
112 |
|||||
|
Gas consumption(m/min) |
0.032 |
0.048 |
0.064 |
0.08 |
0.096 |
0.11 |
|||||
|
Entrance dust concentration(g/m3) |
200 |
||||||||||
|
Exitance dust concentration (mg/m3) |
30 |
||||||||||
|
Injection pressure (MPa) |
0.5-0.7 |
||||||||||
|
Under negative pressure (Pa) |
5000 |
||||||||||
|
Equipment resistance(Pa) |
≤1200 |
||||||||||
|
Quantity of pulse valve(piece) |
4 |
6 |
8 |
10 |
12 |
14 |
|||||
|
Motor type |
Y90S-2 |
Y90L-2 |
Y100L-2 |
Y132S1-2 |
Y132S1-2 |
Y132S2-2 |
|||||
|
Power (KW) |
1.5 |
2.2 |
3.0 |
5.5 |
5.5 |
7.5 |
|||||
|
Weight (kg) |
HMC(A) |
1350 |
1620 |
1850 |
2360 |
2800 |
3200 |
||||
|
HMC(B) |
1220 |
1470 |
1670 |
2150 |
2540 |
2880 |
|||||
We also receipt custom!

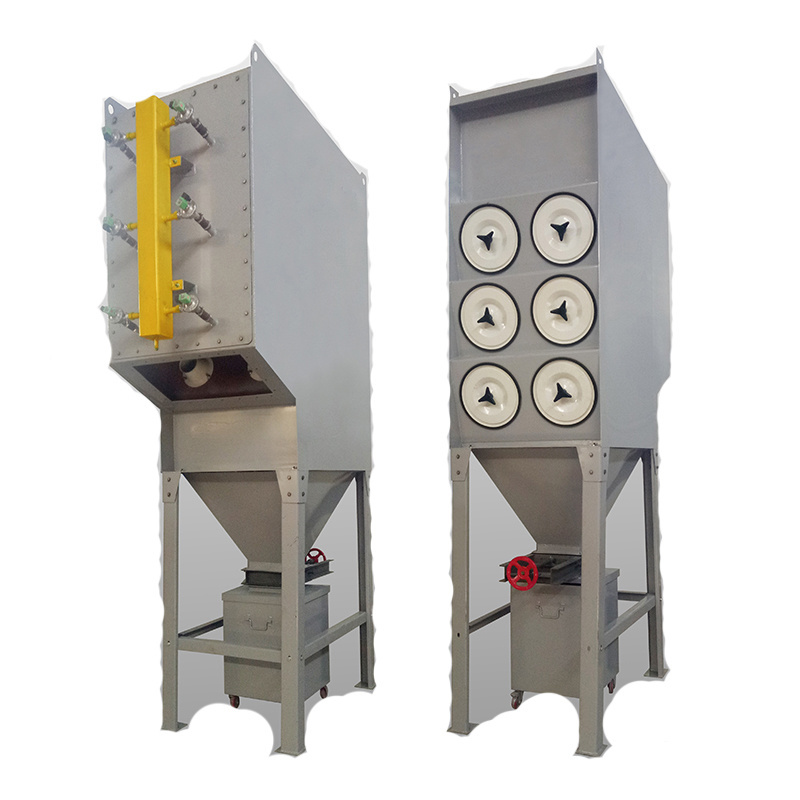

Product Pictures
