Quick Details
-
Model Number:
-
SJG-2083CS
-
Type:
-
Acid Alkali Concentration Meter
-
Battery:
-
Jeffrey (+86)18390610961
-
Material:
-
Jeffrey (+86)18390610961
-
Size:
-
Jeffrey (+86)18390610961
-
Product name:
-
Online Acid Alkaline Concentration/Conductivity Meter
-
Measurement:
-
NaCl/HCl/HNO3/NaOH/ H2SO4/KOH/HF/Conductivity/Salinity
-
Accuracy:
-
±1%FS ;±0.5℃
-
Signal Output:
-
One-way RS485,two-way 4-20mA
-
Relay:
-
Two-way high and low relay
-
Powwer supply/Comsumption:
-
90V-260V AC 50/60Hz (24V alternative)
-
Data Storage:
-
1000 pieces
-
Shell Material:
-
ABS plastic
-
Installation Size:
-
138*138mm
-
Installation Method:
-
Panel Mounted/Wall Mounted
Quick Details
-
Warranty:
-
12 months
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
BOQU
-
Model Number:
-
SJG-2083CS
-
Type:
-
Acid Alkali Concentration Meter
-
Battery:
-
Jeffrey (+86)18390610961
-
Material:
-
Jeffrey (+86)18390610961
-
Size:
-
Jeffrey (+86)18390610961
-
Product name:
-
Online Acid Alkaline Concentration/Conductivity Meter
-
Measurement:
-
NaCl/HCl/HNO3/NaOH/ H2SO4/KOH/HF/Conductivity/Salinity
-
Accuracy:
-
±1%FS ;±0.5℃
-
Signal Output:
-
One-way RS485,two-way 4-20mA
-
Relay:
-
Two-way high and low relay
-
Powwer supply/Comsumption:
-
90V-260V AC 50/60Hz (24V alternative)
-
Data Storage:
-
1000 pieces
-
Shell Material:
-
ABS plastic
-
Installation Size:
-
138*138mm
-
Installation Method:
-
Panel Mounted/Wall Mounted
Products Description

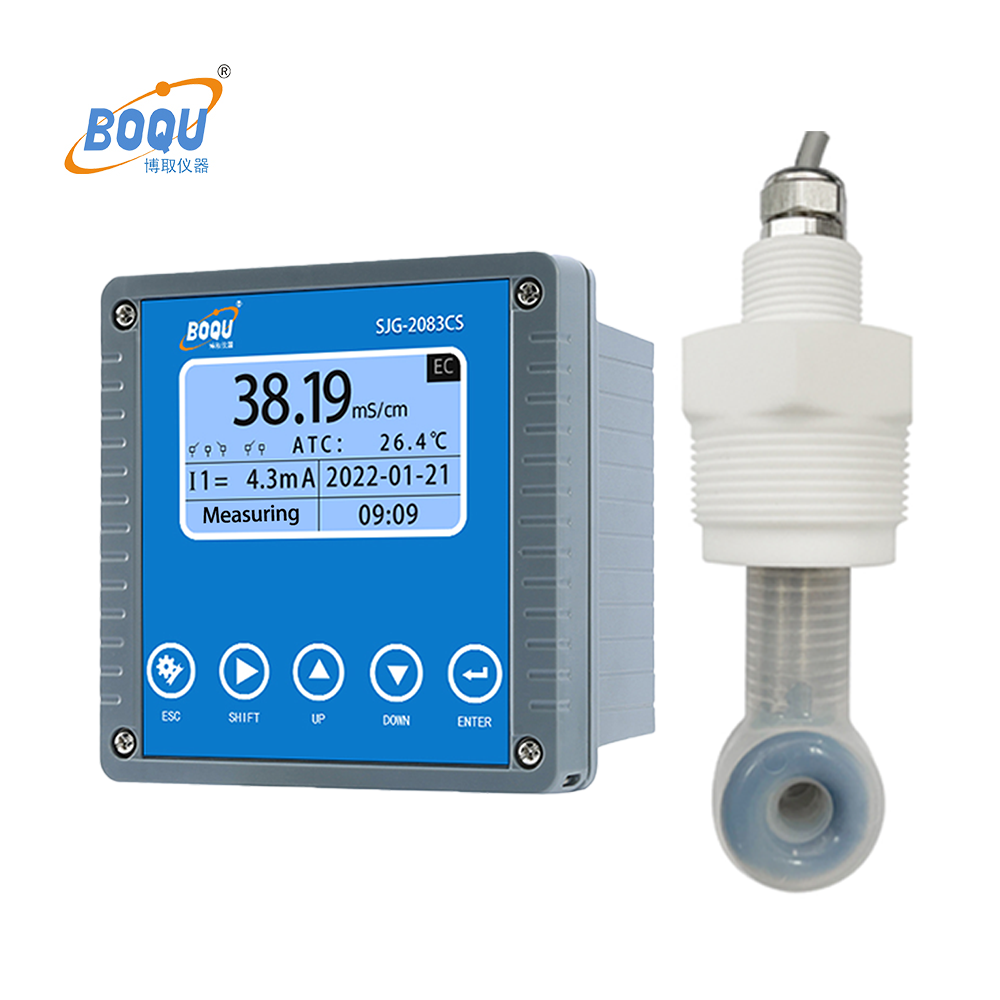

Acid and Alkali Concentration Meter
Model:SJG-2083CS
Introduction:
The SJG-2083CS Acid and Alkali Concentration Meter is a brand-new online smart digital acid and alkali concentration meter with digital inductive conductivity sensor and independently developed and manufactured by BOQU Instrument. It covers the measurement of various solutions like electrical conductivity, sodium chloride, hydrochloric acid, nitric acid, sodium hydroxide and dilute;concentrated sulfuric acid etc.It’s with digital acid-base concentration sensor, which can be widely used in thermal power generation, chemical industry, ion exchange method to produce high-purity water in the process of regenerating liquid concentration, or used to configure boiler pipe pickling liquid, to control the acid-base salt concentration in the solution continuous monitoring.
Technical Features:
★
Extremely quickly and precision Acid-base concentration sensor.
★
Multi-function: measure conductivity,TDS,salinity and different acid or alkali concentration.
★
It's suitable for harsh application and free-maintenance,save cost.
★
Two ways of 4-20mA output for Acid-base concentration and temperature.
★
Digital Inductive conductivity sensor,precision for harsh application.
★
With data recording function,user easy to check history data and history curve.
|
|
Product name
|
SJG-2083CS Online Acid and Alkali Concentration Meter
|
|
|
Measure Range
|
Conductivity：0.00mS/cm-2000.00 mS/cm
Salinity：0~80 ppt TDS:0 mg/L~1000000 mg/L(ppm) Resisitivity：0 MΩ·cm~20 MΩ·cm Acid Alkaline： 0.00%-25.00% NaCl 0.00%-17.98% / 20.01%-39.07% HCl 0.00%-30.00% / 35.01%-96.00% HNO3 0.00%-25.99% / 15.13%-50.00% NaOH 0.00%~30.25% /30.00%~85.00% / 92.00%~100.00% H₂SO₄ 0.00%-26.00% / 26.00%-42.00% KOH 0.00%-30.0% HF （More solution , please contact us!） |
|
|
Accuracy
|
±1%FS ；±0.5℃
|
|
|
Working Temp
|
0℃~55℃
|
|
|
Communication
|
Modbus RTU
|
|
|
Signal Output
|
One-way RS485,two-way 4-20mA
|
|
|
Relay
|
Two-way high and low relay
|
|
|
Powwer supply/Comsumption
|
90V – 260V AC 50/60Hz (24V alternative)
|
|
|
Data Storage
|
1000 pieces
|
|
|
Shell Material
|
ABS plastic
|
|
|
Installation Size
|
138*138mm
|
|
|
Installation Method
|
Panel Mounted/Wall Mounted
|
|
|
IP Grade
|
IP65
|
