Quick Details
-
Diameter:
-
frome 6m to 100m
-
Cover:
-
850g/sqm double PVC coated polyester fabric, transparent PVC
-
Frame material:
-
Aluminum 6061 / T6
-
Application:
-
Exhibition, ceremony, party, event, trade show, etc
-
Structure:
-
Powder coated hot dip galvanized steel structure
-
Feature:
-
UV-resistant,waterproof, antiflaming
Quick Details
-
Brand Name:
-
Event Tent
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
dome tent
-
Diameter:
-
frome 6m to 100m
-
Cover:
-
850g/sqm double PVC coated polyester fabric, transparent PVC
-
Frame material:
-
Aluminum 6061 / T6
-
Application:
-
Exhibition, ceremony, party, event, trade show, etc
-
Structure:
-
Powder coated hot dip galvanized steel structure
-
Feature:
-
UV-resistant,waterproof, antiflaming
Products Description

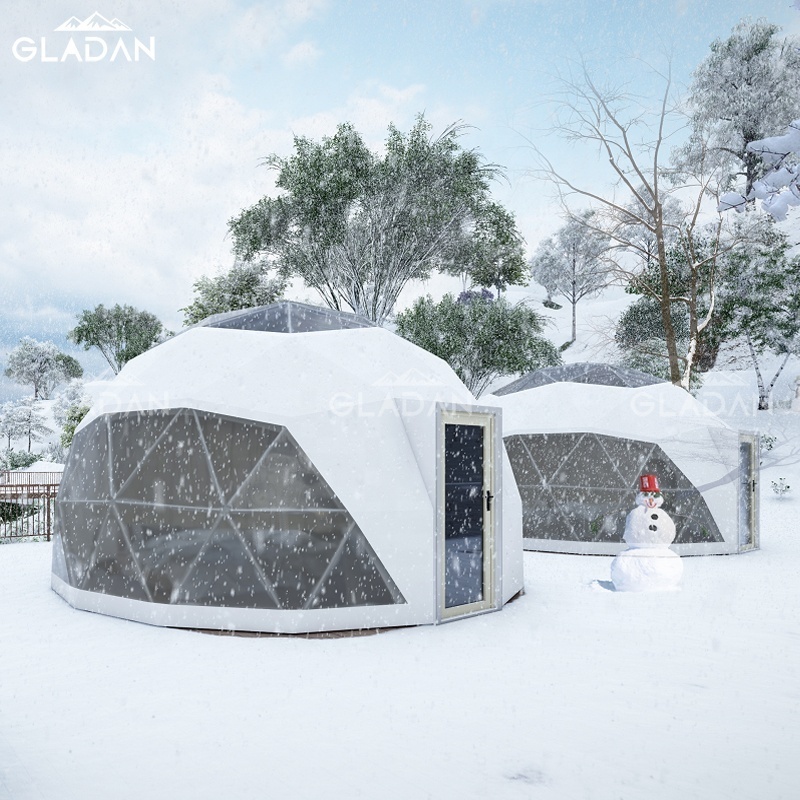

Luxury Geodesic Dome House Tent
Cover material:
PVC Roof Cover
Features:
water proof, UV resistance, fire retardant(DIN4102,B1,M2)
Application: trades, events fairs, festival stage, concert,camping ...
Fabric color option:
white, gray, transparent or customized.
Frame material:
Q235 hot-dip galvanized steel pipes and high quality powder coated surface resistant to corrosion.
Size:
5m-60m customized.
Life Span:
Steel frame structure warranty for 15 years, PVC fabric warranty for 5 years.
Fabric Material:
White PVC with blackout in the middle layer,transparent PVC fabric,beige / orange / green / yellow polyester fabric with double sides PVC coated.
Fabric Weight:
650g/sq.m,850g/sq.m,900g/sq.m,1100g/sq.m ...
|
Size (Diameter)
|
Ridge Height
|
Floor Area
|
Frame Pipe Size(mm)
|
Capacity
|
|
5m
|
2.9m
|
19.62㎡ (211 sq.ft)
|
Φ26*1.5mm
|
lives: 1~2 People
15~35 People
|
|
6m
|
3.5m
|
28.26㎡ (304 sq.ft)
|
Φ26*1.5mm
|
lives: 2~3 People
20~45 People |
|
7m
|
4.1m
|
38.46㎡ (414 sq.ft)
|
Φ26*1.5mm
|
lives: 2~4 People
30 ~ 50 People |
|
8m
|
4.69m
|
50.24㎡ (541 sq.ft)
|
Φ26*1.8mm
|
lives: 2-4 People
40 ~75 People
|
|
9m
|
5.27m
|
63.58㎡ (684 sq.ft)
|
Φ26*1.8mm
|
32~71 People
|
|
10m
|
5.86m
|
78.50㎡ (845 sq.ft)
|
Φ26*1.8mm
|
42~87 People
|
|
15m
|
7.2m
|
176.62㎡ (1901 sq.ft）
|
Φ32*2.0mm
|
93~196 People
|
|
18m
|
8.7m
|
254.34㎡ (2738 sq.ft)
|
Φ32*2.0mm
|
135~290 People
|
|
20m
|
9.7m
|
314.00㎡ (3380 sq.ft)
|
Φ32*2.0mm
|
167~350 People
|
|
25m
|
12.2m
|
490.62㎡ (5281 sq.ft)
|
Φ32*2.0mm
|
260~555 People
|
|
30m
|
14.7m
|
706.50㎡ (7605 sq.ft)
|
Φ48*2.5mm
|
380~800 People
|
|
35m
|
16.6m
|
961.62㎡ (10351 sq.ft)
|
Φ48*2.5mm
|
510~1100 People
|
|
40m
|
19.0m
|
1256.00㎡ (13519 sq.ft)
|
Φ48*2.5mm
|
700~1400 People
|
|
45m
|
21.3m
|
1589.62㎡ (17111 sq.ft)
|
Φ48*2.5mm
|
850~1800 People
|
|
50m
|
23.5m
|
1962.50㎡ (21124 sq.ft)
|
Φ60*2.5mm
|
1100~2200 People
|
|
60m
|
28.5m
|
2826.00㎡ (30419 sq.ft)
|
Φ60*2.5mm
|
1500~3200 People
|
Details Images
Optional Hardwares
Solar Energy Exhaust Fan
One-piece Bathroom
Insulation Lining
Round Semi-automatic Glass Window
Triangular Window (Glass / PVC)
Screen Window
Mosquito Screen Curtain
Aluminum Door
PVC Door
Fixing Accessories
Packing & Delivery
1. Steel frame packed in membrane film.
2. Roof and sidewall in professional PVC carry bag.
3. Stainless steel tube and steel tube will be packed with steel pallet.
4. Hardware packed in solid carton box.
Dome Weight & Package(
estimated data，refer only
):
2. Roof and sidewall in professional PVC carry bag.
3. Stainless steel tube and steel tube will be packed with steel pallet.
4. Hardware packed in solid carton box.
6m dome weight 300kg 0.8 cubes,
8m dome 550kg with 1.5cubes,
10m dome 650kg with 2 cubes,
12m dome 1000kg with 3cubes,
12m dome 1000kg with 3cubes,
15m dome 2T with 6 cubes,
30m dome 11T with 23 cubes,
50m dome 20T with 59 cubes
Delivery Time: 30-45 days according to the design and schedule
Shipping Time: About 15-55 days according to the way of shipment
