Quick Details
-
Weight:
-
2000 KG
-
Capacity:
-
50 T
-
Silo diameter:
-
3.2 m
-
Silo height:
-
5.40 m
-
Discharging Height:
-
Customer Required
-
Silo model:
-
DKS50T
-
Control system:
-
Automatic
-
Color:
-
Customer Required
Quick Details
-
Core Components:
-
/
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DKTEC
-
Weight:
-
2000 KG
-
Capacity:
-
50 T
-
Silo diameter:
-
3.2 m
-
Silo height:
-
5.40 m
-
Discharging Height:
-
Customer Required
-
Silo model:
-
DKS50T
-
Control system:
-
Automatic
-
Color:
-
Customer Required

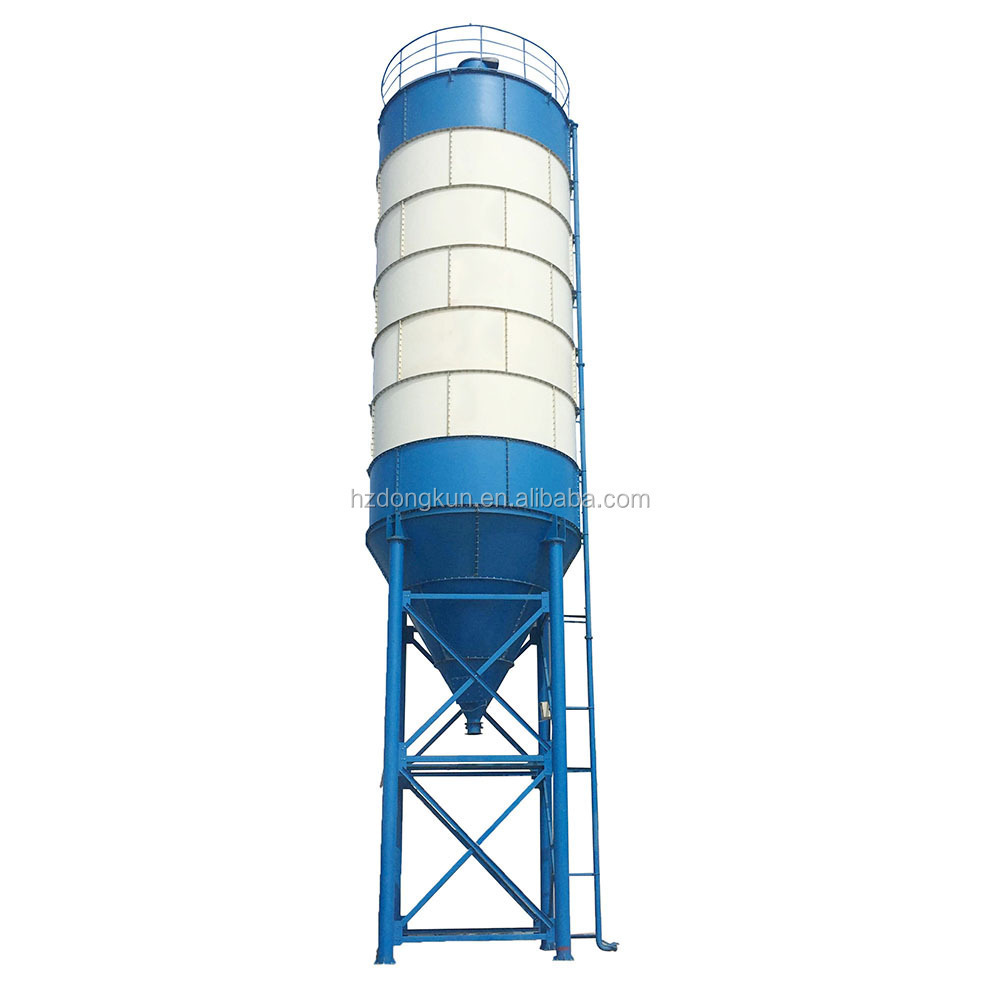

50 tons bulk cylindrical bolted type silo storage cement silo
●
The cement silo is usually used with concrete batching plant to store bulk cement. It is a main part of concrete mixing plant. Except cement, it can also store bulk material, like fly ash, fine ore, dry mortar, etc… It is featured by rain and dampness resistant, and easy to use, etc.
●
Our Bolted Cement Silo For Export Market, detachable cement silos which are manufactured in different capacities, provide great advantages especially in transportation.
The discharge height is determined by the customer
Excellent quality, delicate good appearance
●
With different capacities: 30T, 50T, 60T, 80T, 100T, 150T, 200T, 300T, etc.
●
Customized sizing and layout to specific requirement Sub-structure, easy transportation, installation fast, level display, with positive and negative regulator, Green filter.
●
Put in bulk powder (cement or fly ash), waterproof and moisture, easy to use and reduce costs , the top of cement silo with green filter, used to reduce dust leakage.
●
Equipped with a safety valve at the top of cement silo, cement silo used to balance the pressure difference between inside and outside.
♦
Cement silo also be equiped with dust collector, pressure releife valve, level indication, aerator pad. for the detail specification, you can check the following information.
Cement silo spare part
Name
: Dust collector
Original
: China
Standard 304 stainless steel body.
Weatherproof finish(easily turned into food-grade).
Cleaning system integrated in weather protecton cover.
Intergrated body flange.
Robust flange connection to silo.
Cement silo spare part
Name
: Butterfly Valve
Original
: China
Butterfly valve with the use of solenoid valve,switch and
pneumatic level, used to control the silo discharge gate
switch
Cement silo spare part
Name
: Pressure relief valve
Original
: China
The pressure relief valve is an indispensable device. When the air pressure in the silo is too high or too low and reaches the preset value, the relief valve will open automatically, balancing the pressure inside and out of the silo to avoid damage to the silo and its attached equipment. The pressure relief valve will automatically recover after the pressure is back to normal, without manual intervention.
Cement silo spare part
Name
: Level indicator
Original
: China
Each silo generally uses two binometers, which indicate the highest and lowest material height respectively. It is also possible to use a number of level indicator to indicate different material height.
Cement silo spare part
Name
: Aerator pad
Original
: China
The aerator pad has a semi-convex shape, and the launch range of air from the white surface is larger, the aggregate flow effect is better. The size, installation location and number of the aerator p ad are determined according to the data table.
