Quick Details
-
Voltage:
-
Customized
-
Power:
-
according to the project
-
Dimension(L*W*H):
-
according to the order
-
Weight (KG):
-
1000
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Small Manual Powder Coating Booth:
-
Small Manual Powder Coating Booth With Powder Coating Machine
-
project:
-
OEM
-
frequency:
-
50HZ/60HZ
-
coating:
-
powder coating
-
profiles:
-
aluminum ,steel...
-
weight:
-
according to the project
-
item:
-
small powder booth powder room
Quick Details
-
Machine Type:
-
powder spray
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JinHai
-
Voltage:
-
Customized
-
Power:
-
according to the project
-
Dimension(L*W*H):
-
according to the order
-
Weight (KG):
-
1000
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Small Manual Powder Coating Booth:
-
Small Manual Powder Coating Booth With Powder Coating Machine
-
project:
-
OEM
-
frequency:
-
50HZ/60HZ
-
coating:
-
powder coating
-
profiles:
-
aluminum ,steel...
-
weight:
-
according to the project
-
item:
-
small powder booth powder room
Product Overview

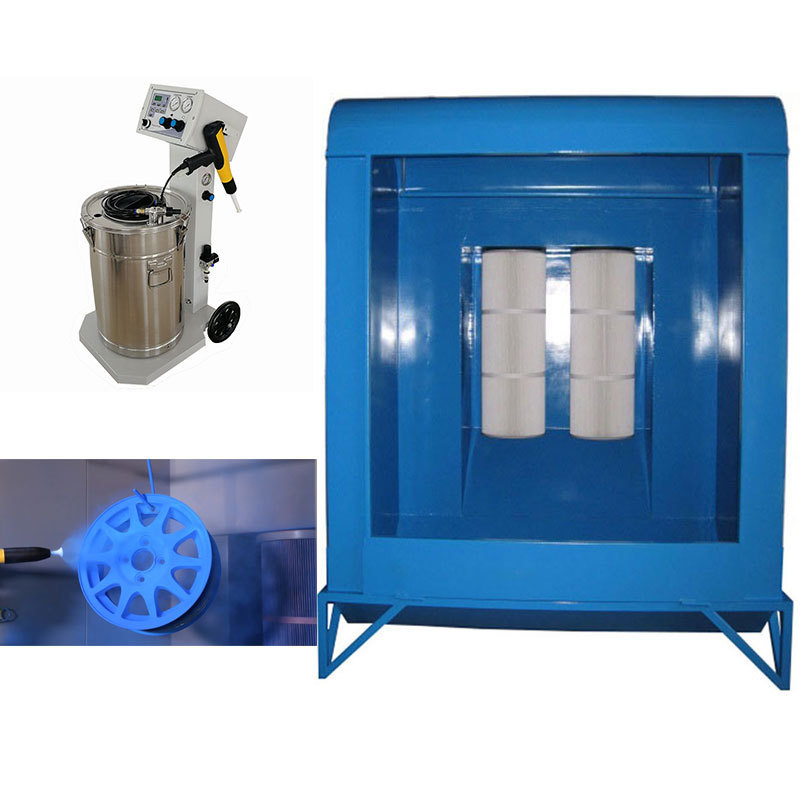

Small Manual Powder Coating Booth With Powder Coating Machine and Spray Gun
This is our OEM small powder coating booth,small room for small metal work profile or small capacity coating production line.two or three filters according to the booth size.good powder recover ,easy to change color.The powder coating machine and gun can be choosed according to your request.
Very cheap price with much stable quality.
Main Equipments:
1. Color: customized.
2. Voltage and plug can be customized according to your country
3. Install in our factory,then ship by sea
Product Information
|
Specifications
|
|
|
|
Model
|
JH-P01
|
|
|
Overall Size(D X W X Hmm)
|
Customized
|
|
|
Power supply
|
Electric
|
|
|
Nominal power
|
2.2 - 5.5kw
|
|
|
Voltage
|
Customized as local
|
|
|
Frequency
|
50-60hz
|
|
|
Filters
|
Polyester
|
|
|
Filters count
|
2-6pcs
|
|
|
Filters hang type
|
Easy for change
|
|
|
Filters cleaning system
|
Pneumatic
|
|
|
We could customized any size and specifications for you.
|
|
|
|
Model
|
JH- 605 / 606
|
|
|
Component
|
controller + manual spray gun + trolley + stainless hopper + accessories
|
|
|
Function
|
different shape of workpiece, flat / re-coat / corner
|
|
|
Hopper Capacity
|
45L
|
|
|
Electrical data
|
|
|
|
Powder Voltage and Plug
|
100V - 240V (customized )
|
|
|
Power
|
≤50W
|
|
|
Frequency
|
50HZ / 60HZ
|
|
|
Temperature range in use
|
-10 to 50 degree
|
|
|
Spray gun
|
|
|
|
|
|
|
|
Reted Output Voltage
|
24V DC
|
|
|
Max. Output current
|
100Ua ( max.)
|
|
|
Max. Output Voltage
|
0-100KV (adjustable)
|
|
|
Max. Powder Injection
|
600g/min
|
|
|
Polarity
|
negative （-）
|
|
Details Images
High Quality Blower
We use aluminium fans which are safe, doesn't cause sparks when rubbing by metal elements which in case of using metal fan can cause explode. Because of their importance to save energy and consume small amounts of current.
Quick Released Polyester Filters
The highest quality filters made from 100% polyester, the filtration less than 0.1 micrometer, well separates the powder from the air. long lifespan. The cartridge filter is quick release type, easy to discharge when replace new ones and quick for color changes. Each filter is individually cleaned by controller though valves.
The rails and hangers
The rails and hangers to hang workpieces.
With LED proof lamp
The lamp makes the work area light.
Relted Products
About Us
Linhai Jin Hai Coating Equipment Co., Ltd.
JINHAI is a professional manufacturer and exporter specializing in the design, R&D, production of various coating equipment. Powder coating machine, powder spray booth, powder curing oven, powder coating line, electrophoretic line, powder gun spare parts during the spray coating process are the company’ s main products. JINHAI gets foreign and domestic users' trust and support from its advanced technology, good reputation, immediate and attentive service. JINHAI’ s products apply to cars, motor bikes, home appliances, hardware, art ware, building materials, medical apparatus and instruments and so on.
FAQ
1. Is it safe to order from JINHAI?
Yes,100% sure you are safe to order from us. JINHAI exported to many countries and we are the famous factory produce powder coating equipment more than 10 years in China.
2. How to delivery?
By sea for big order ,by courier for small order ,by airlines.
3. How to pay?
We accept the paypal ( but credit card not accepted),Western Union ,Bank transfer , money gram,etc.
4. Which model should I choose?
When spray specially metallic powders, according to your product shapes and the coating job details. For example, need to change colors often or only few colors, then choose the box feed unit or hopper feed unit. The small hopper unit is good for lab test or small work.
5. Can I customized the machines?
Yes, we are a professional team for powder coating equipments, Our technician will design for you specially according to your needs and your factory, workpiece etc information.
6. What should I offer if I want to customized the machine?
a. Your factory available for the equipment dimension by L x W x H
b. Your max workpiece or product weight and size by L x W x H
c. Your product surface condiation(with oil or dust?) and some pictures if possible
d. Your output capacity(for machine line)
e. Your industrial electric power in V-Phase-Hz.
7. Can you install for us?
Yes, we can install overseas for you. But the engineers overseas installation cost, round trip air tickets, accommodation, meals and transport charges are on the buyers.
2. How to delivery?
By sea for big order ,by courier for small order ,by airlines.
3. How to pay?
We accept the paypal ( but credit card not accepted),Western Union ,Bank transfer , money gram,etc.
4. Which model should I choose?
When spray specially metallic powders, according to your product shapes and the coating job details. For example, need to change colors often or only few colors, then choose the box feed unit or hopper feed unit. The small hopper unit is good for lab test or small work.
5. Can I customized the machines?
Yes, we are a professional team for powder coating equipments, Our technician will design for you specially according to your needs and your factory, workpiece etc information.
6. What should I offer if I want to customized the machine?
a. Your factory available for the equipment dimension by L x W x H
b. Your max workpiece or product weight and size by L x W x H
c. Your product surface condiation(with oil or dust?) and some pictures if possible
d. Your output capacity(for machine line)
e. Your industrial electric power in V-Phase-Hz.
7. Can you install for us?
Yes, we can install overseas for you. But the engineers overseas installation cost, round trip air tickets, accommodation, meals and transport charges are on the buyers.
