303 304 305 electrical outdoor extension 12v waterproof lamp cord line dimmer inline rocker switch

303 304 305 electrical outdoor extension 12v waterproof lamp cord line dimmer inline rocker switch

FOB Reference Price: Get Latest Price

≥1 Pieces

US $0.35

≥1000 Pieces

US $0.3

≥10000 Pieces

US $0.25

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: 303

Max. Current:: 3A

Mechanical Life:: 50000 Cycles

Products name:: rocker switch

Rating:: 3A 250V

Function:: ON-OFF

Material:: PA66/PC

Color:: Black/ White

Working Temperature:: -25℃~+125℃

Terminal type:: Full copper

Fit for:: Light

Type:: Electrical Equipment

Certificate:: CE,CQC,CCC,TUV

Certification:: CQC CE TUV

Quick Details

Max. Voltage:: 250V

Place of Origin:: Zhejiang, China

Brand Name:: Haifei

Model Number:: 303

Max. Current:: 3A

Mechanical Life:: 50000 Cycles

Products name:: rocker switch

Rating:: 3A 250V

Function:: ON-OFF

Material:: PA66/PC

Color:: Black/ White

Working Temperature:: -25℃~+125℃

Terminal type:: Full copper

Fit for:: Light

Type:: Electrical Equipment

Certificate:: CE,CQC,CCC,TUV

Certification:: CQC CE TUV

Product Description

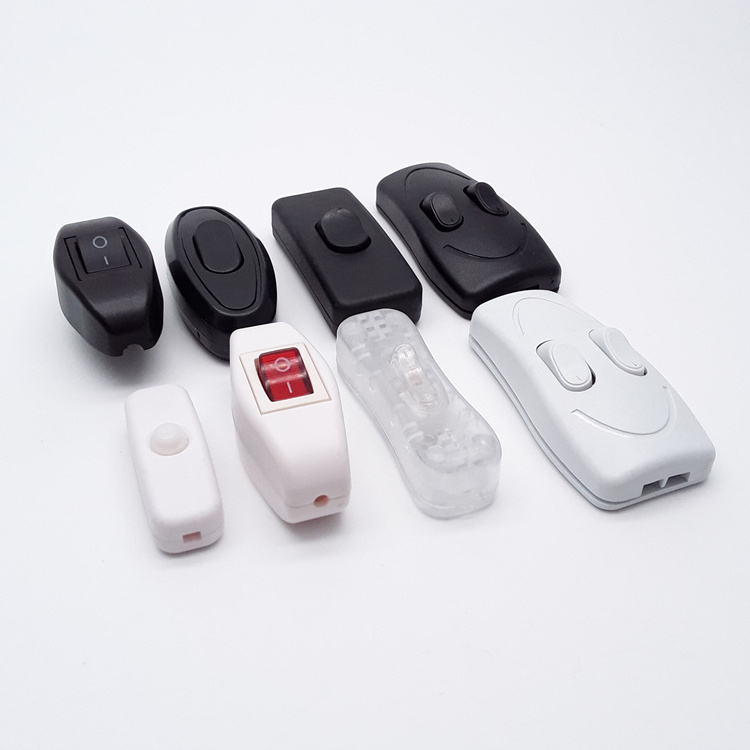

303 304 305 electrical outdoor extension 12v waterproof lamp cord line dimmer inline rocker switch

Haifei rocker switch offer a high switching current in a compact design. It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing. They have high quality for long life at heavy loads and industry-standard mounting dimensions. This rocker switch can be used in a variety of applications, like water dispenser and extension socket and so on .

Items	Rocker switch details
Housing material	PA66
Button material	PC
Contacts material	Copper with compound silver
Rating	3A 250VAC
Temperature	-40℃ to 125℃
Dielectric Strength	1500Vrms min
Contact Resistance	<30MΩ
Insulation Resistance	>100MΩ
Flammability	UL94V0
Eletrical life	50000 cycles
Mechanical life	50000 cycles
Referance standard	EN 61058-1
Approvl marks	CE CQC CCC TUV ROHS ENEC VDE UL

Product Display

Product Category

303 304 305 electrical outdoor extension 12v waterproof lamp cord line dimmer inline rocker switch
