Quick Details
-
Brand Name:
-
GXCOM
-
Model Number:
-
ES3000-8SFP+
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
L3 Managed 8*1G/10G SFP+ Ethernet Fiber Switch
-
Model:
-
ES3000-8SFP+
-
Power Supply:
-
DC Input
-
Port:
-
8 10G SFP+Slots 1 RJ45 Console Port
-
MAC:
-
16K
-
Keywords:
-
Fast Ethernet Switch
-
Applications:
-
CCTV Security System
-
Brand:
-
Gxcom
-
Management:
-
L2 L3 Available
-
Bandwidth:
-
160Gbps
Quick Details
-
Transmission Rate:
-
1G/10G
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
160Gbps
-
Brand Name:
-
GXCOM
-
Model Number:
-
ES3000-8SFP+
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
L3 Managed 8*1G/10G SFP+ Ethernet Fiber Switch
-
Model:
-
ES3000-8SFP+
-
Power Supply:
-
DC Input
-
Port:
-
8 10G SFP+Slots 1 RJ45 Console Port
-
MAC:
-
16K
-
Keywords:
-
Fast Ethernet Switch
-
Applications:
-
CCTV Security System
-
Brand:
-
Gxcom
-
Management:
-
L2 L3 Available
-
Bandwidth:
-
160Gbps
Product Description

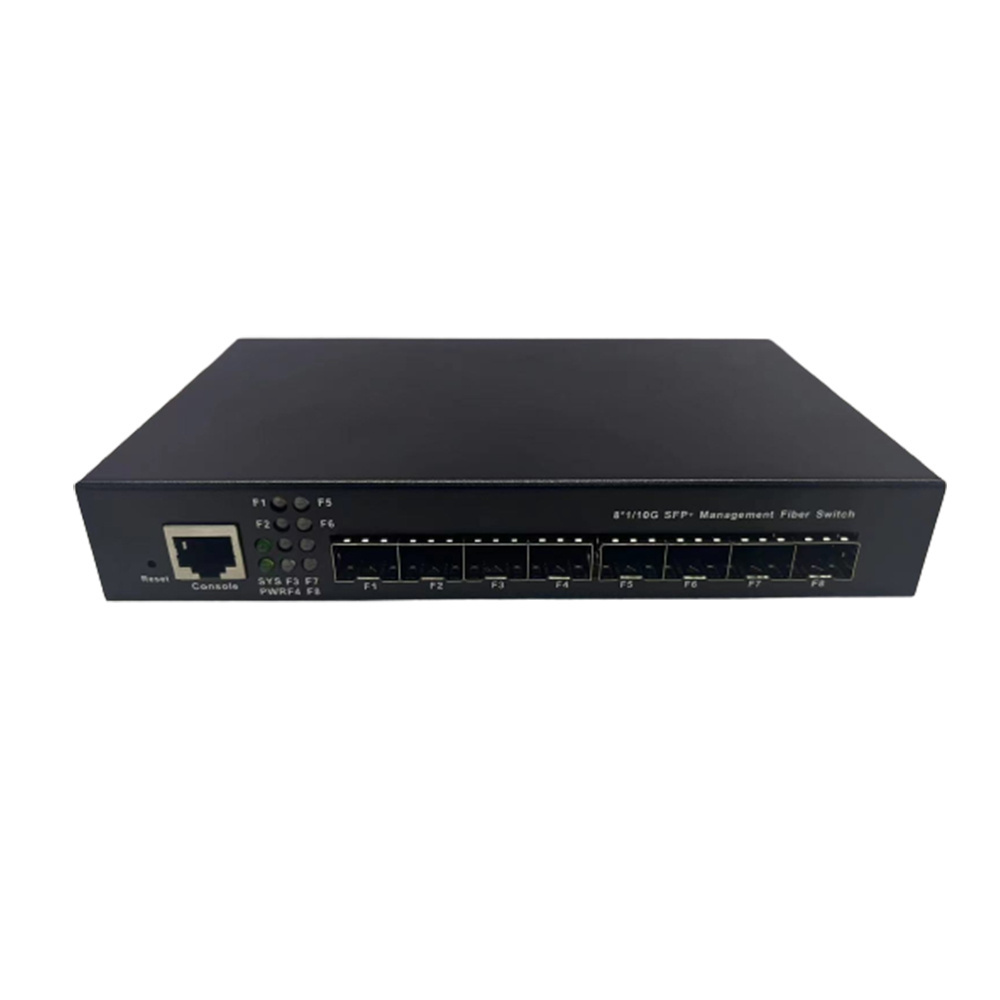

Product Overview
The IES3000-8F series is a high performance 8 ports, L2/L3 managed 1G/10G Ethernet switch with eight 1G/10G SFP+ ports. The switch supports STP/RSTP/MSTP. It also supports Web-based network management, VLAN, QoS, SNMP, IGMP snooping and other network functions. LED indicators provide the connection status when using SFP option. 8*10Gigabit ports unlock the highest performance of your 10G/Multi-Gig bandwidth and devices, and provide up to 160 Gbps of switching capacity.Lightning-Fast Connections. Provides lightning-fast connections to 10G NAS, Server, 10G PCIe Adapter/ NIC, gaming computer, 10G WiFi 6 AP, 8K video, and more.Ideal for Various Scenarios. Built for lightning-fast connections in business and home offices, workstations, LAN parties, and home entertainment
Key Features
² Support WEB/HTTP/HTTPS/SSH/Telnet/SNMP/CLI/CONSOLE/ROM diversified management and maintenance methods. ² Support IPV4/IPV6 network management interface and network neighbor management. ² Support DHCP server, DHCPL2/L3 relay agent, DHCPV6 service. ² Support DNS host and client configuration management. ² Support SNMP V1/V2C/V3 and Trap message configuration management. ² Support LLDP and LLDP-MED configuration management, ISDP configuration management ² Support switch timing plan management. ² Support port mode, port bandwidth speed limit, rate control, flow control and other management, port status panel information display. ² Support 8 groups of static and dynamic lacp aggregation. ² Support unicast/multicast/broadcast storm suppression ² Support STP/RSTP/MSTP production tree protocol and loop protection protocol, support CST and MST configuration, eliminate the second layer loop, and realize link backup ² Support port VLAN, IEEE 802.1Q VLAN, Voice VLAN, VLAN double tag QinQ configuration. ² Support MAC address aging and static MAC address configuration ² Supports IGMP and MVR multicast protocols, supports IGMP Snooping/ MLD Snooping, and meets the needs of multi-terminal high-definition video monitoring and video conference access. ² Support Auto-VoIP and UDLD port configuration ² Support IP routing and L3 port routing management ² Support ARP/RIP/OSPF/OSPFV3/BGP/Router Discovery/VRRP/ Route-Map/BFD three-layer routing ² Support QOS 802.1P and IP DSCP priority, port queue management ² Support Diffserv differentiated service quality management, including Class View/Policy View/IPv6 Class View ² Support Radius/TACACS+ server and 802.1x/Enable level/HTTP/HTTPs/Dot1x authentication ² Support configuration management to prevent DOS attacks ² Support port access security management configuration and status query ² Support port IP security management based on IGMP Snooping/IPSG/dynamic ARP inspection ² Support ACL management of IPV4/IPV6/MAC binding ² Support system log/port statist
The IES3000-8F series is a high performance 8 ports, L2/L3 managed 1G/10G Ethernet switch with eight 1G/10G SFP+ ports. The switch supports STP/RSTP/MSTP. It also supports Web-based network management, VLAN, QoS, SNMP, IGMP snooping and other network functions. LED indicators provide the connection status when using SFP option. 8*10Gigabit ports unlock the highest performance of your 10G/Multi-Gig bandwidth and devices, and provide up to 160 Gbps of switching capacity.Lightning-Fast Connections. Provides lightning-fast connections to 10G NAS, Server, 10G PCIe Adapter/ NIC, gaming computer, 10G WiFi 6 AP, 8K video, and more.Ideal for Various Scenarios. Built for lightning-fast connections in business and home offices, workstations, LAN parties, and home entertainment
Key Features
² Support WEB/HTTP/HTTPS/SSH/Telnet/SNMP/CLI/CONSOLE/ROM diversified management and maintenance methods. ² Support IPV4/IPV6 network management interface and network neighbor management. ² Support DHCP server, DHCPL2/L3 relay agent, DHCPV6 service. ² Support DNS host and client configuration management. ² Support SNMP V1/V2C/V3 and Trap message configuration management. ² Support LLDP and LLDP-MED configuration management, ISDP configuration management ² Support switch timing plan management. ² Support port mode, port bandwidth speed limit, rate control, flow control and other management, port status panel information display. ² Support 8 groups of static and dynamic lacp aggregation. ² Support unicast/multicast/broadcast storm suppression ² Support STP/RSTP/MSTP production tree protocol and loop protection protocol, support CST and MST configuration, eliminate the second layer loop, and realize link backup ² Support port VLAN, IEEE 802.1Q VLAN, Voice VLAN, VLAN double tag QinQ configuration. ² Support MAC address aging and static MAC address configuration ² Supports IGMP and MVR multicast protocols, supports IGMP Snooping/ MLD Snooping, and meets the needs of multi-terminal high-definition video monitoring and video conference access. ² Support Auto-VoIP and UDLD port configuration ² Support IP routing and L3 port routing management ² Support ARP/RIP/OSPF/OSPFV3/BGP/Router Discovery/VRRP/ Route-Map/BFD three-layer routing ² Support QOS 802.1P and IP DSCP priority, port queue management ² Support Diffserv differentiated service quality management, including Class View/Policy View/IPv6 Class View ² Support Radius/TACACS+ server and 802.1x/Enable level/HTTP/HTTPs/Dot1x authentication ² Support configuration management to prevent DOS attacks ² Support port access security management configuration and status query ² Support port IP security management based on IGMP Snooping/IPSG/dynamic ARP inspection ² Support ACL management of IPV4/IPV6/MAC binding ² Support system log/port statist
Application
We also have Non standard Passive PoE Switch with management version, Click send Inquiry to get more information.
