Jiashida factory sale low cost Gantry type V Grooving Machine Metal Slotting Machine price

Jiashida factory sale low cost Gantry type V Grooving Machine Metal Slotting Machine price

FOB Reference Price: Get Latest Price

≥1 Pieces

US $23500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: customizable

Dimension(L*W*H):: 6000*2500*1800

Year:: 2022

Weight (KG):: 8000

Power (kW):: 4

Product name:: v groover machine

Type:: lzkv-1250x4000

CNC or NOT:: cnc

Control system:: EasyCat

Main function:: Grooving Metal Sheet

Material:: Steel Material

Color:: Customizable

Max.width of grooving:: 1300mm

Electrics:: Schneider

Cutting speed:: 5-70m/min

Quick Details

Place of Origin:: Anhui, China

Brand Name:: lzkcnc

Marketing Type:: Hot Product 2022

Voltage:: customizable

Dimension(L*W*H):: 6000*2500*1800

Year:: 2022

Weight (KG):: 8000

Power (kW):: 4

Product name:: v groover machine

Type:: lzkv-1250x4000

CNC or NOT:: cnc

Control system:: EasyCat

Main function:: Grooving Metal Sheet

Material:: Steel Material

Color:: Customizable

Max.width of grooving:: 1300mm

Electrics:: Schneider

Cutting speed:: 5-70m/min

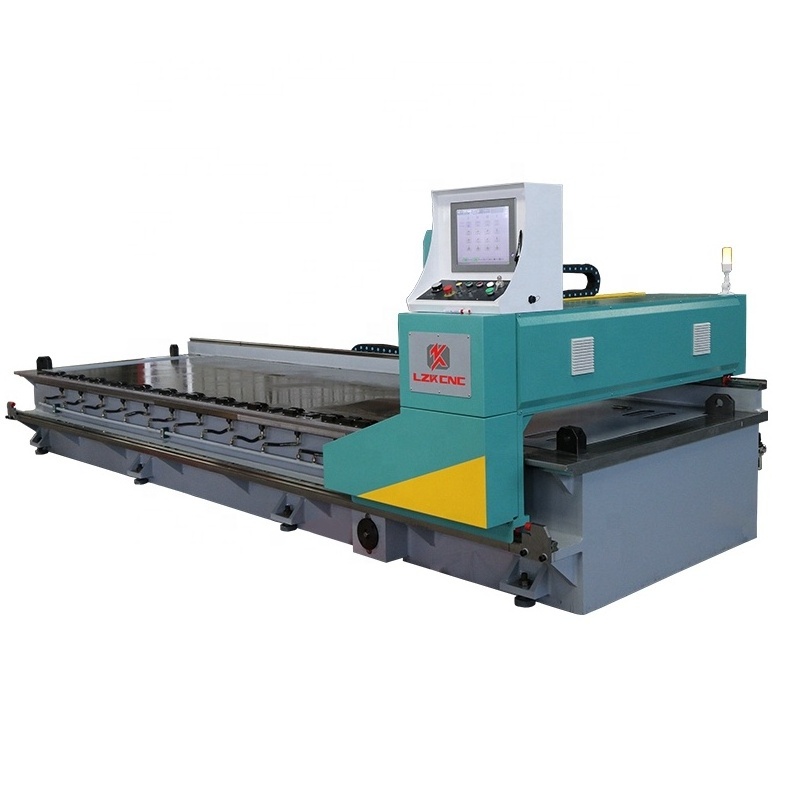

LZK | CNC Hydraulic Gantry V Groover Machine

High performance Sheet metal Cnc V Grooving Machine LZKV-1250X4000mm for SS.

More detail video on Youtube:

https://www.youtube.com/watch?v=DY4qKKMgLSM

LZK CNC Hydraulic Gantry V Groover Machine adopts advanced CNC system and novel design. It has the characteristics of high processing accuracy, simple operation, no noise and no vibration.
This machine tool is used for V-groove, U-groove and other irregular grooves on sheet metal parts (including stainless steel plate, aluminum plate, aluminum-plastic plate, copper plate, iron plate, bakelite board, acrylic plate and some other special plates.)

The processing is especially suitable for the V-groove processing of sheet metal parts before bending.

LZK | Frame structure bed and beam

The bed and beam of the V-grooving machine adopt a frame structure design. The worktable is made of low-alloy high-strength structural steel, and the frame is made of Q345 steel, which is not only strong but also durable.

LZK | Slotting Machine Control System

The control system of Liangzhi slotting machine adopts CNC numerical control and touch screen operation. The operator is easy to learn and understand, and the positioning is accurate.

LZK | Slotting machine forming alloy knife

The processing technology of three formed alloy knives at the front and back greatly reduces the iron filings generated during processing. Compared with the traditional five knives, the machining accuracy is also greatly improved. Because the bottom of the groove processed by the five knives may produce multiple bottom lines Article.

LZK | Full hydraulic clamping and pressing device

It adopts full hydraulic clamping and pressing, working quickly, pressing the material more firmly, without indentation, and tracking cooling and blowing during all processing. With alarm

LZK | Rack and Pinion Transmission System

Use high-speed alloy steel rack and pinion, large pitch ball screw, and high-precision, silent linear guide. The main shaft system is driven by a high-torque servo motor with an imported star reducer. The gantry adopts 6 ultra-quiet sliding seats, which makes the tool post more stable and faster when processing workpieces.
