- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
HYT-0501000
-
Use:
-
Battery Charger
-
Warranty:
-
3 Years
-
Output voltage:
-
3V~ 18V
-
Output current:
-
300mA-3000mA
-
Input Voltage:
-
AC 90-254V 50/60Hz
-
Output power:
-
18W Max
-
Material:
-
ABS+PC
-
Color:
-
Black
-
Output cable:
-
Customized
-
Plug type:
-
EU plug
Quick Details
-
Output Type:
-
DC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HYT or Customized
-
Model Number:
-
HYT-0501000
-
Use:
-
Battery Charger
-
Warranty:
-
3 Years
-
Output voltage:
-
3V~ 18V
-
Output current:
-
300mA-3000mA
-
Input Voltage:
-
AC 90-254V 50/60Hz
-
Output power:
-
18W Max
-
Material:
-
ABS+PC
-
Color:
-
Black
-
Output cable:
-
Customized
-
Plug type:
-
EU plug

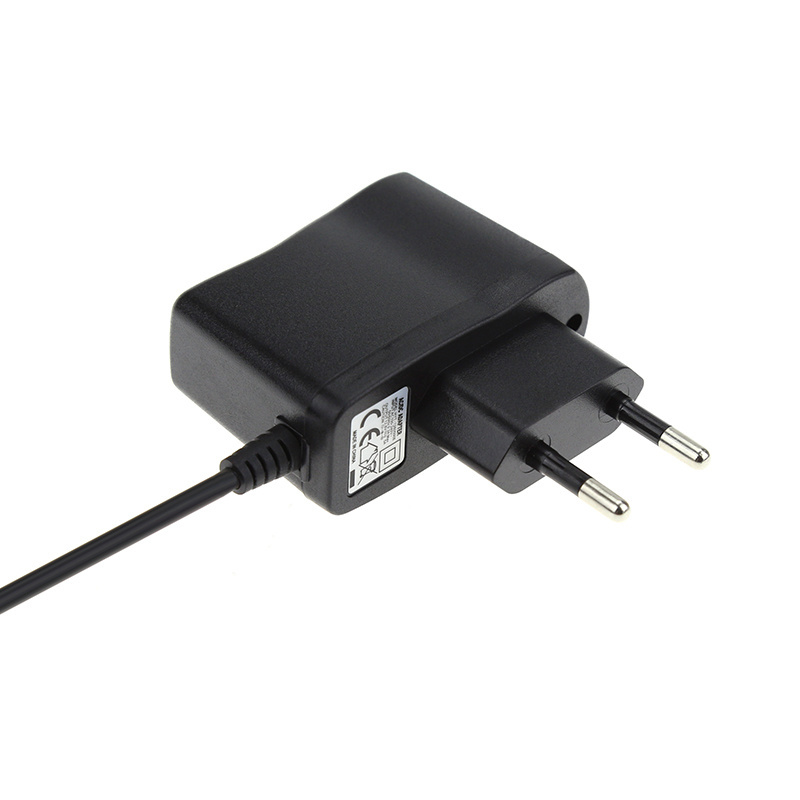

Intertek Approval 4.2V 8.4V 13.6V 500mA 1000mA 1A 2A Battery Charger
Product Description
| Technical specifications | Input Voltage Range | AC 100-240V |
| Input Frequency | 47Hz~63Hz | |
| Input current | ≤300mA(AC100V) | |
| The impact of the current | ≤50A(AC240V) | |
| Power Factor | ≥0.5(AC240V, Resistencia interna<0.1Ω) | |
| Efficiency | ≥76% | |
| Output voltage | 3V ~ 18V ±5% | |
| Nominal output current | 300mA-3000mA | |
| Nominal power | 18W Max | |
| The noise of the ripple | ≤120mV | |
| Start delay time | ≤3S(AC110V) | |
| Work temperature | 0℃-40℃ | |
| Storage temperature | -20℃- 75℃ | |
| Humidity | 5%-95% | |
| Atmospheric pressure | 70 — 106Mpa | |
| High pressure test | AC 3000V (Min), 3S, leakage current≤5mA | |
| Insulation resistance | ≥10MΩ (la presión atmosférica normal, humedad 90%, DC500V) |
