- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
SCW
-
Color:
-
Black or OEM color
-
Certification:
-
RoHS
Quick Details
-
Material:
-
PET
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CNYY
-
Model Number:
-
SCW
-
Color:
-
Black or OEM color
-
Certification:
-
RoHS
Product Description
Product Description

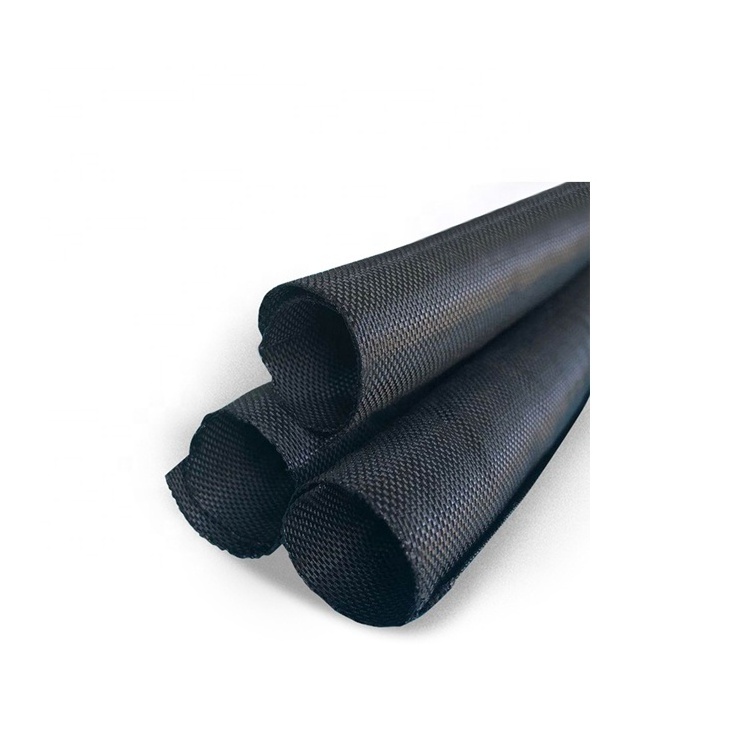

YY-SCW Since the volume woven casing belongs to our patented products,is a new type of cable protection sleeve,the use of polyester filament and polyester multifilament braided and,with good heat dissipation,fire resistance, abrasion resistance, simple operation is convenient wait ofr a characteristic,open type structure is favorable wire rod heavy,maintenance and overhaul
Product parameters
● Material:Polyester
● Operating temperature:-50℃~+150℃
● Melting point:240±10℃
● Flame retardant grade:VW-1
●Standard color:Black
● Certification:Rohs,UL halogen free certification
● Cutting tool:hot knife
● Product application:products are widely used in high-speed rail,automotive,automation equipment, computer wire especially in need of protection and thermal environment
● Operating temperature:-50℃~+150℃
● Melting point:240±10℃
● Flame retardant grade:VW-1
●Standard color:Black
● Certification:Rohs,UL halogen free certification
● Cutting tool:hot knife
● Product application:products are widely used in high-speed rail,automotive,automation equipment, computer wire especially in need of protection and thermal environment
Detailed Images
Size Information
|
Item No.
|
inner diamete(mm)
|
Expanded width(mm)
|
Max wire diameter(mm)
|
Packing(M/ROLL)
|
|
CNYY-SCW-05
|
5
|
25±5
|
6
|
100
|
|
CNYY-SCW-08
|
8
|
40±5
|
9
|
100
|
|
CNYY-SCW-10
|
10
|
50±5
|
11
|
100
|
|
CNYY-SCW-13
|
13
|
60±5
|
14
|
100
|
|
CNYY-SCW-16
|
16
|
78±8
|
17
|
100
|
|
CNYY-SCW-19
|
19
|
95±8
|
20
|
50
|
|
CNYY-SCW-25
|
25
|
125±8
|
27
|
25
|
|
CNYY-SCW-29
|
29
|
140±8
|
31
|
25
|
|
CNYY-SCW-32
|
32
|
150±8
|
34
|
25
|
|
CNYY-SCW-38
|
38
|
180±8
|
40
|
25
|
|
CNYY-SCW-50
|
50
|
250±8
|
52
|
25
|
Packing&Shipping
Company Instruction
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.And produce the goods by ourself.
Q: How long is your delivery time?
A: About the production time :
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
And the delivery time : Generally about 30days. It is according to your location.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
