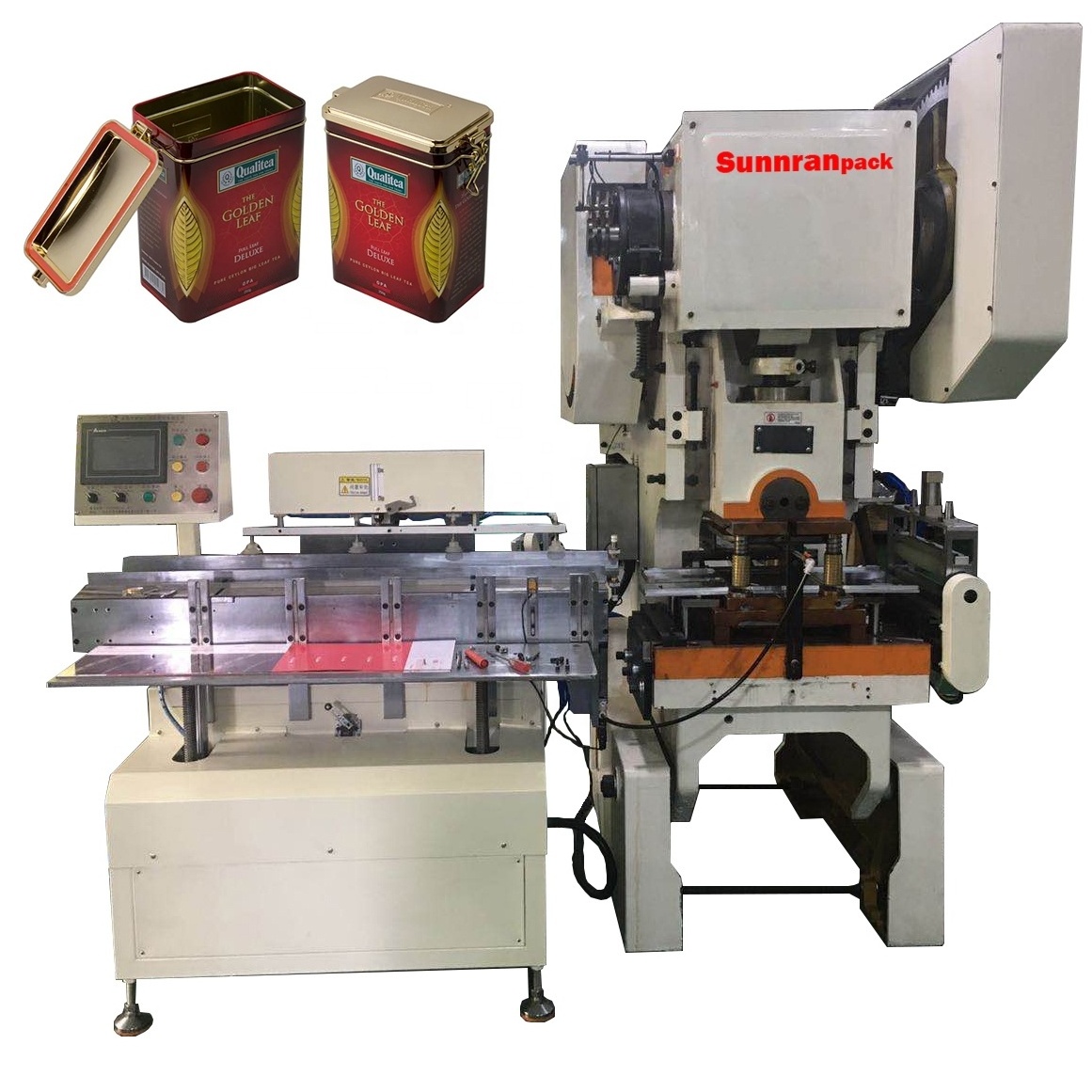

This machine combines can body stripe pre-bending , corner cutting , hook making , can body locking . It is controlled by PLC.
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
8000x2300x1700
-
Weight:
-
5000 KG
-
Name::
-
Tin can body locking machine
-
Capacity::
-
40-50cpm
-
Application::
-
Decorated tin box
-
Applicable can:
-
Round can ,irregular can, triangle can
-
Function:
-
corner cutting, bending, locking
-
Blank thickness:
-
0.16-0.38mm
-
Can Diameter:
-
55-290mm
-
Can Diagonal length:
-
70-200 / 200-300mm
-
Can height::
-
65-190/100-300mm
-
After Warranty Service:
-
Video technical support
-
Marketing Type:
-
Hot Product 2019
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sunnran
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
8000x2300x1700
-
Weight:
-
5000 KG
-
Name::
-
Tin can body locking machine
-
Capacity::
-
40-50cpm
-
Application::
-
Decorated tin box
-
Applicable can:
-
Round can ,irregular can, triangle can
-
Function:
-
corner cutting, bending, locking
-
Blank thickness:
-
0.16-0.38mm
-
Can Diameter:
-
55-290mm
-
Can Diagonal length:
-
70-200 / 200-300mm
-
Can height::
-
65-190/100-300mm
-
After Warranty Service:
-
Video technical support
-
Marketing Type:
-
Hot Product 2019
Products Description
Round box forming machine Automatic Metal Tin Box making machine Decorative Tin can container making machine
Decorative can making machine
|
Applicable can size
|
Can height(mm)
|
Speed(CPM)
|
Weight
|
|
D50-150mm(round), 70X70-120X120mm
|
30-210
|
40-45
|
2T
|
|
D55-200mm(round), 55x40-200x200mm
|
40-330
|
30-40
|
3T
|
|
D100-300mm(round), 100x100-230x230mm
|
40-230
|
20-30
|
3.5T
|
Combined curling and seaming machine
|
Can size(mm)
|
Can height(mm)
|
Speed(CPM)
|
Power(Kw)
|
|
Dia.80-200
|
80-200
|
30-40
|
10.4
|
Machine for neck-in and bottom crimping tin can
These machines are used to make the neck-in can and bottom crimping can
.
|
Can size(mm)
|
Can height(mm)
|
Speed(CPM)
|
Power(Kw)
|
|
Dia.80-200
|
80-200
|
25-30
|
10.4
|
Automatic decorated can components making line
Different types of transfer arm can be designed for making the decorative tin can cover or bottom. This transfer system attached is one of our design. Each transfer system is controlled by two Servo motor. Unfinished cover is conveyed by robot arm. This type of line is easy for the operator to move the presses, transfer system and change the mold
|
Can size(mm)
|
Can height
|
Speed
|
Power
|
Applicable press
|
|
Dia.55-260
55X55-300X260(square) |
5-35mm
|
25-30mm
|
1.5Kw
|
16T or 25T ,40T
|
