Quick Details
-
Model Number:
-
MTS-303
-
Max. Current:
-
6A
-
Mechanical Life:
-
50000 Cycles
-
Product Name:
-
Toggle Switch
-
Terminal:
-
Solder Terminal
-
Housing Color:
-
Red
-
Switch Type:
-
SPDT
-
Position:
-
3 Position
-
Number of Contact Terminals:
-
9 pin terminals
-
Material:
-
Metal, Plastic
-
Mounting Hole:
-
M6
-
Operating Temp:
-
-25°C to +85°C
-
Product type:
-
9 Pin toggle switch
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ABILKEEN
-
Model Number:
-
MTS-303
-
Max. Current:
-
6A
-
Mechanical Life:
-
50000 Cycles
-
Product Name:
-
Toggle Switch
-
Terminal:
-
Solder Terminal
-
Housing Color:
-
Red
-
Switch Type:
-
SPDT
-
Position:
-
3 Position
-
Number of Contact Terminals:
-
9 pin terminals
-
Material:
-
Metal, Plastic
-
Mounting Hole:
-
M6
-
Operating Temp:
-
-25°C to +85°C
-
Product type:
-
9 Pin toggle switch

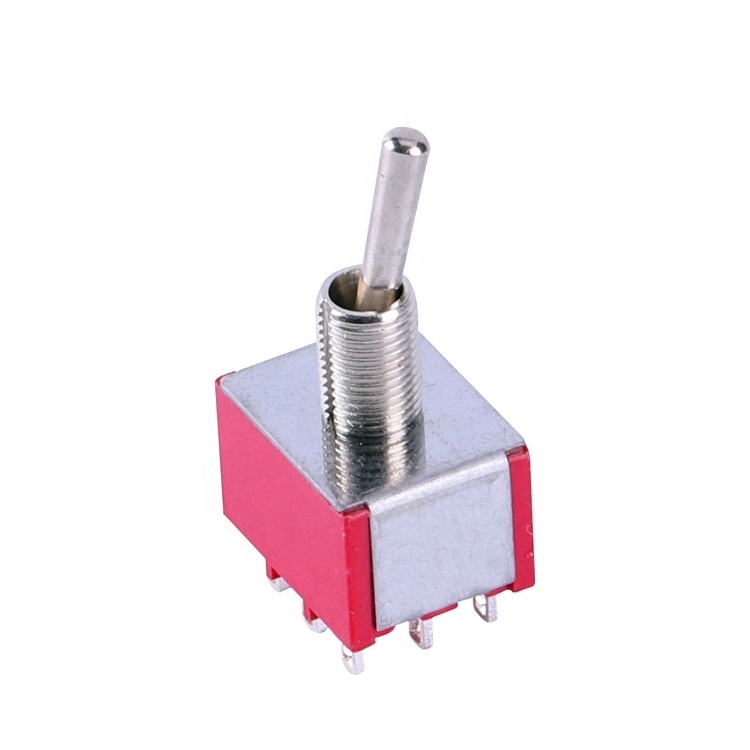

3 Position ON OFF ON Self Lock 3PDT 9 Pin Toggle Switch With Waterproof Rubber Cover
· Product name : 9 Pin Toggle switch; Type : 3 Pdt (on/ off/ on); 3 Position toggle switch
· Mounting hole diameter : 6Mm/0.24"; Voltage & current : 6A/125Vac, 3 A/250Vac
· Material : metal & Resin; color : as picture shown
9 pin
toggle switch
,
3
PDT (ON/OFF/ON) 3 Positions, easy installation.
Can be used on low voltage or high voltage circuits, ideal for switching lights or motors.
This switch is NOT momentary. There is a center position.
|
Product Name |
Toggle Switch |
|
Items |
MTS- 303 |
|
Mounting Hole |
M6 |
|
Operation Type |
Latching / Self Lock |
|
Rating |
6A 125VAC; 3A 250VAC |
|
Dielectric strength |
1000 V RMS (min) |
|
Mechanical life |
More than 50.000 cycles |
|
Electrical life |
More than 10,000 cycles |
|
Operating Temperature |
-25°C ~+80°C |
|
Customized colored housing or Connector |
Acceptable and with fast shipping |
|
Accessory hardware |
Metal washer, Locking tooth washer & Mounting nut. |
|
QTY/Box |
100 pcs |
|
Waterproof Cap |
Click here Waterproof Cap and choose item No.: WPC-05 |
|
What You Get |
100 Pcs Toggle switch Red, 9 Pins, ON OFF ON, 3 Position |
