Quick Details
-
Mounting Type:
-
None
-
Description:
-

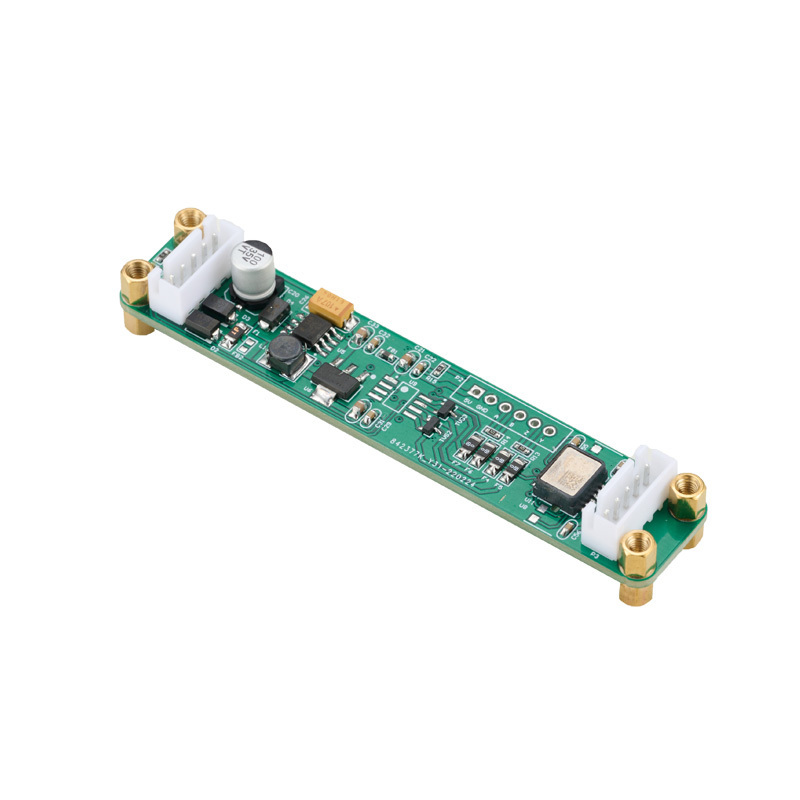

MEMS inclinometer
-
Model Number:
-
T700-D
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Maixinminwei
-
Brand:
-
Three-axis inclination angle monitoring
-
Operating Temperature:
-
-40~+85℃
-
Output Configuration:
-
RS232/RS485/TTL/RS422/CAN available
-
Voltage Rating:
-
DC9~36V (DC 5V can be customized)
-
Humidity Range:
-
IP67
-
Size / Dimension:
-
(92*18*16mm) (customizable)
-
Measuring Range:
-
Three-axis ±90°, single-axis ±180°(360°optional)
-
Resolution:
-
0.002°, 0.002°
-
Application:
-
Angle control of various engineering machinery etc
-
Product name:
-
Three-axis inclination angle monitoring (single-axis optional)
-
Full range accuracy:
-
0.01°
-
Wide temperature working:
-
-40~+85℃
-
Measuring range:
-
Triaxial ±90°, single-axis ±180°(360° optional)
-
Wide voltage input:
-
DC9~36V (DC 5V can be customized)
-
Baud rate:
-
2400~115200 adjustable
-
Protection level:
-
IP66
-
Output:
-
RS232/RS485/TTL/RS422/CAN available
Quick Details
-
Usage:
-
tilt monitoring
-
Series:
-
inclinometer
-
Features:
-
Small size, light weight, easy to integrate, -
-
Mounting Type:
-
None
-
Description:
-
MEMS inclinometer
-
Model Number:
-
T700-D
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Maixinminwei
-
Brand:
-
Three-axis inclination angle monitoring
-
Operating Temperature:
-
-40~+85℃
-
Output Configuration:
-
RS232/RS485/TTL/RS422/CAN available
-
Voltage Rating:
-
DC9~36V (DC 5V can be customized)
-
Humidity Range:
-
IP67
-
Size / Dimension:
-
(92*18*16mm) (customizable)
-
Measuring Range:
-
Three-axis ±90°, single-axis ±180°(360°optional)
-
Resolution:
-
0.002°, 0.002°
-
Application:
-
Angle control of various engineering machinery etc
-
Product name:
-
Three-axis inclination angle monitoring (single-axis optional)
-
Full range accuracy:
-
0.01°
-
Wide temperature working:
-
-40~+85℃
-
Measuring range:
-
Triaxial ±90°, single-axis ±180°(360° optional)
-
Wide voltage input:
-
DC9~36V (DC 5V can be customized)
-
Baud rate:
-
2400~115200 adjustable
-
Protection level:
-
IP66
-
Output:
-
RS232/RS485/TTL/RS422/CAN available
Specification
|
Parameter
|
Conditions
|
T700-D-10
|
T700-D-30
|
T700-D-90
|
T700-D-180
|
Unit
|
|||||
|
Measuring range
|
|
±10
|
±30
|
±90
|
±180
|
°
|
|||||
|
Measuring axis
|
|
X, Y, Z
|
X, Y, Z
|
X, Y, Z
|
X, Y, Z
|
|
|||||
|
Zero temperature drift
|
-40～85°
|
±0.001
|
±0.001
|
±0.001
|
±0.001
|
°/℃
|
|||||
|
Sensitivity temperature coefficient
|
-40～85°
|
≤100
|
≤100
|
≤100
|
≤100
|
ppm/℃
|
|||||
|
Frequency response
|
DC response
|
100
|
100
|
100
|
100
|
Hz
|
|||||
|
Resolution
|
|
0.002
|
0.002
|
0.002
|
0.002
|
°
|
|||||
|
Accuracy
|
|
0.01
|
0.02
|
0.03
|
0.05
|
°
|
|||||
|
Long term stability
|
|
<0.015
|
<0.021
|
<0.033
|
<0.052
|
°
|
|||||
|
Power-on start time
|
|
0.2
|
|
|
|
s
|
|||||
|
Response time
|
|
0.01
|
|
|
|
s
|
|||||
|
Output rate
|
5Hz, (15Hz, 35Hz, 50Hz, 100HZ can be set)
(RS485 does not have this function) |
|
|
|
|
|
|||||
|
Output signal
|
RS232/RS485/RS422/TTL/PWM/ CAN/(MODBUS Optional)
|
|
|
|
|
|
|||||
|
Average working hours
|
≥55000 hours/time
|
|
|
|
|
|
|||||
|
Impact resistance
|
20000g, 0.5ms, 3 times/axis
|
|
|
|
|
|
|||||
|
Anti-vibration
|
10grms、10～1000Hz
|
|
|
|
|
|
|||||
|
Insulation resistance
|
≥100MΩ
|
|
|
|
|
|
|||||
|
Waterproof level
|
IP66
|
|
|
|
|
|
|||||
|
Cable
|
Standard 10cm length, wear-resistant, oil-proof, wide temperature, shielded cable 4*0.3mm2
|
|
|
|
|
|
|||||
|
Weight
|
10g (excluding packaging box)
|
|
|
|
|
|
|||||
2. Electrical indicators
Glossary:
Resolution: It refers to the minimum change value of the measured value that the sensor can detect and distinguish within the measurement range.
Accuracy: Absolute accuracy refers to the comprehensive error of absolute linearity, repeatability, hysteresis, zero point
deviation, and horizontal axis error of the sensor under normal temperature conditions.
Long-term stability: Long-term stability refers to the deviation between the maximum value and the minimum value of the sensor after one year of long-term work under normal temperature conditions.
Response time: Response time is the time required for the sensor output to reach the standard value when the sensor angle changes once.
Resolution: It refers to the minimum change value of the measured value that the sensor can detect and distinguish within the measurement range.
Accuracy: Absolute accuracy refers to the comprehensive error of absolute linearity, repeatability, hysteresis, zero point
deviation, and horizontal axis error of the sensor under normal temperature conditions.
Long-term stability: Long-term stability refers to the deviation between the maximum value and the minimum value of the sensor after one year of long-term work under normal temperature conditions.
Response time: Response time is the time required for the sensor output to reach the standard value when the sensor angle changes once.
|
Parameter
|
Condition
|
Minimum value
|
Typical value
|
Maximum value
|
Unit
|
|
Supply
voltage |
|
9
|
12
|
36
|
V
|
|
|
customizable
|
|
5
|
|
|
|
Working current
|
no load
|
|
40
|
|
mA
|
|
Operating temperature
|
|
-40
|
|
+85
|
℃
|
|
Storage temperature
|
|
-55
|
|
+125
|
℃
|
