Quick Details
-
Brand Name:
-
Pantera
-
Model Number:
-
PT110-I8
-
Place of Origin:
-
Chongqing, China
-
Engine Type:
-
4-Stroke
-
Fuel:
-
Gas / Diesel
-
Displacement (ml)::
-
107
-
Bore X Stroke(mm)::
-
52.4x49.5
-
Compression Ratio::
-
9.1:1
-
Max. Power(kw/r/min):
-
5.2/8000
-
Max. Torque (N.m/r/min)::
-
7.2/5000
-
Max. Speed (Km/h)::
-
≥85
-
Ignition::
-
CDI
-
Brake(F/R):
-
DISK /DRUM
Quick Details
-
Motorcycle Type:
-
Underbone/cub bike
-
Max. Speed:
-
> 80km/h
-
Voltage:
-
36V
-
Brand Name:
-
Pantera
-
Model Number:
-
PT110-I8
-
Place of Origin:
-
Chongqing, China
-
Engine Type:
-
4-Stroke
-
Fuel:
-
Gas / Diesel
-
Displacement (ml)::
-
107
-
Bore X Stroke(mm)::
-
52.4x49.5
-
Compression Ratio::
-
9.1:1
-
Max. Power(kw/r/min):
-
5.2/8000
-
Max. Torque (N.m/r/min)::
-
7.2/5000
-
Max. Speed (Km/h)::
-
≥85
-
Ignition::
-
CDI
-
Brake(F/R):
-
DISK /DRUM

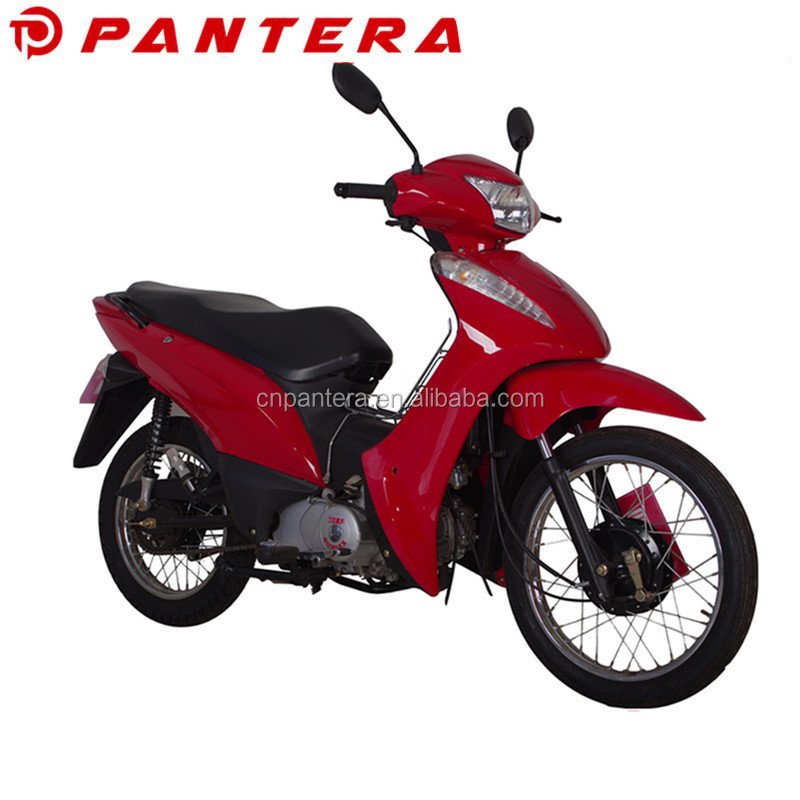

Hot Sale Drum Brake Pantera Electric Bike Motorcycle Brands
| Technical | |
| Engine | |
| Engine Type : | Single cylinder,wind-cooled, four stroke |
| Displacement (ml): | 107 |
| Bore X Stroke (mm): | 52.4x49.5 |
| Compression Ratio : | 9.1:1 |
| Max. Power (kw/r/min) | 5.2/8000 |
| Max. Torque (N.m/r/min): | 7.2/5000 |
| Max. Speed (Km/h): | ≥85 |
| Lubrication : | Pressure ,splash |
| Clutch Type : | Multiplate wet clutch, Manual |
| Ignition : | CDI |
| Starting System : | E-start |
| Transmission System : | Chain drive |
| CHASSIS | |
| Front Brake : | disk brake |
| Rear Brake : | Drum brake |
| Front Tire : 2 | 2.50-17 |
| Rear Tire : | 3.00-14 |
| Battery : | 12V/5Ah |
| DIMENSIONS | |
| L X W X H (mm) : | 1830*690*1010 |
| Seat Height (mm): | 710 |
| Wheelbase (mm): | 1270 |
| Min. Ground Clearance (mm): | 120 |
| Max. Permissionable Weight (kg): | 150 |
| Rider Capacity : | 1 Person |
| Dry. Weigth (kg): | 92 |
| Engine Oil (L): | 1L SAE15W/40 |
| Fuel Tank Capacity (L): | 4.3 |
| Others | |
| Packing Size (mm): | 1700×460×860 |
| Packing Weight (kg): | 112 |
|
Container Loading
(
40HQ
)
:
|
105 |
Panorama View
For Different Color
Warranty
|
1.we offer engine 6000 kms and one year warranty on the basis of normal riding. |
|
|
2.we offer 1% easy broken spare parts freely. |
|
|
easy broken spare parts list: |
|
|
easy broken spare parts list: |
|
|
No. |
spare parts name |
|
1 |
carburetor |
|
2 |
electric parts |
|
3 |
headlight assy |
|
4 |
meter assy |
|
5 |
L. front turning light |
|
6 |
R. front truning litht |
|
7 |
L. rear turning light |
|
8 |
R. raer turning light |
|
9 |
tail light assy |
|
10 |
front and rear inner tube |
|
11 |
rearview mirror |
|
12 |
pasoes |
|
13 |
chain |
|
14 |
handle switch |
|
15 |
handle bar |
|
16 |
cable |
|
17 |
battery |
|
18 |
seat |
|
19 |
rear shock |
|
20 |
footrest |
|
21 |
starting arm |
|
22 |
gear pedal |
|
23 |
muffler |
|
Note: the above spare parts packaged separately, carton packaging, standard marks. |
|
There are two ways to pack the products: one is SKD, another is CKD.
SKD ( S emi-Complete Knock Down ): For SKD, we provide you with steel frame, carton or wooden frame to pack the motorcycle.
CKD (Complete Knock Down): For CKD, we provide you with wooden case or carton .
