Quick Details
-
Power:
-
Electric
-
Pressure:
-
High Pressure
-
Standard or Nonstandard:
-
Nonstandard
-
Theory:
-
Piston Pump
-
Application:
-
Waterproofing
-
Function:
-
injection machine for waterproofing construction
-
other name:
-
Grouting Injection Pump for Polyurethane resin foam
-
Usage:
-
Waterproofing,water sealing,concrete repair
-
After-sales Service Provided:
-
Online support
Quick Details
-
Weight (KG):
-
17
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
RUTH OR OEM
-
Power:
-
Electric
-
Pressure:
-
High Pressure
-
Standard or Nonstandard:
-
Nonstandard
-
Theory:
-
Piston Pump
-
Application:
-
Waterproofing
-
Function:
-
injection machine for waterproofing construction
-
other name:
-
Grouting Injection Pump for Polyurethane resin foam
-
Usage:
-
Waterproofing,water sealing,concrete repair
-
After-sales Service Provided:
-
Online support

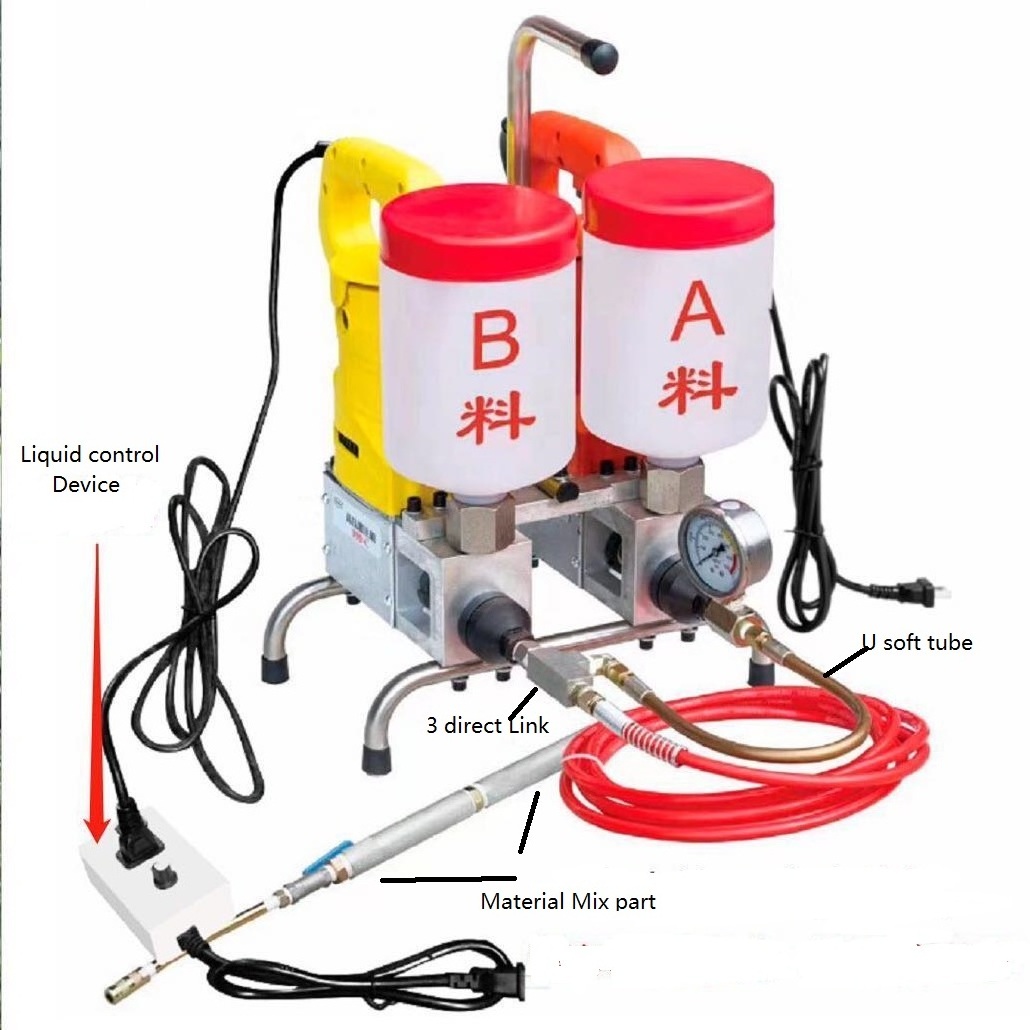

Injection grout pump
Material of application
WPU and OPU foam stop leakage agent, Epoxy resin.
Application Field
Subway Station, Tunnel, Culvert, Foundation Improvement, Soil Settlement, Reservoir, Port Project, Top Slab, Crack, Construction Join, Shrinkage Crack, Basement hairline crack etc. water stop projects.
Specification
|
Weight |
17 kg |
|
Maximum output pressure |
70MPa |
|
Pressure of restarting |
less than 20 MPa |
|
Safe range of high-pressure hose |
less than 70 MPa |
|
Safe range of switch valve |
less than 50 MPa |
Full set of machine include:
- The machine
- Accessories, including high pressure hose (4.5m), on &off valve, grease head.
- Standby tools
NOTE:
We are speicalize in the whole series of water stop system: high pressure injection pump, injection packer, Polyurethane grouting material, epoxy injection resin, etc.
