Quick Details
-
Power:
-
12kw
-
Dimension(L*W*H):
-
2270 x 228 x 1940mm
-
Weight:
-
570 KG
-
Name:
-
Hot selling continuous feed wiped thin film molecular distillation
-
Main uses:
-
Industrial Distillation
-
Motor power(W):
-
120W
-
Function:
-
Extract Essential Oil
-
Feed Rate (kg/hr):
-
2.5-40
-
Effective Evaporation Area:
-
0.25㎡
-
Internal Condenser Area:
-
0.4㎡
-
Barrel Diameter:
-
150mm
-
Operation Temperature:
-
Up to 250℃
-
After-sales Service Provided:
-
Free spare parts
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Jinghua
-
Voltage:
-
220V/50Hz
-
Power:
-
12kw
-
Dimension(L*W*H):
-
2270 x 228 x 1940mm
-
Weight:
-
570 KG
-
Name:
-
Hot selling continuous feed wiped thin film molecular distillation
-
Main uses:
-
Industrial Distillation
-
Motor power(W):
-
120W
-
Function:
-
Extract Essential Oil
-
Feed Rate (kg/hr):
-
2.5-40
-
Effective Evaporation Area:
-
0.25㎡
-
Internal Condenser Area:
-
0.4㎡
-
Barrel Diameter:
-
150mm
-
Operation Temperature:
-
Up to 250℃
-
After-sales Service Provided:
-
Free spare parts

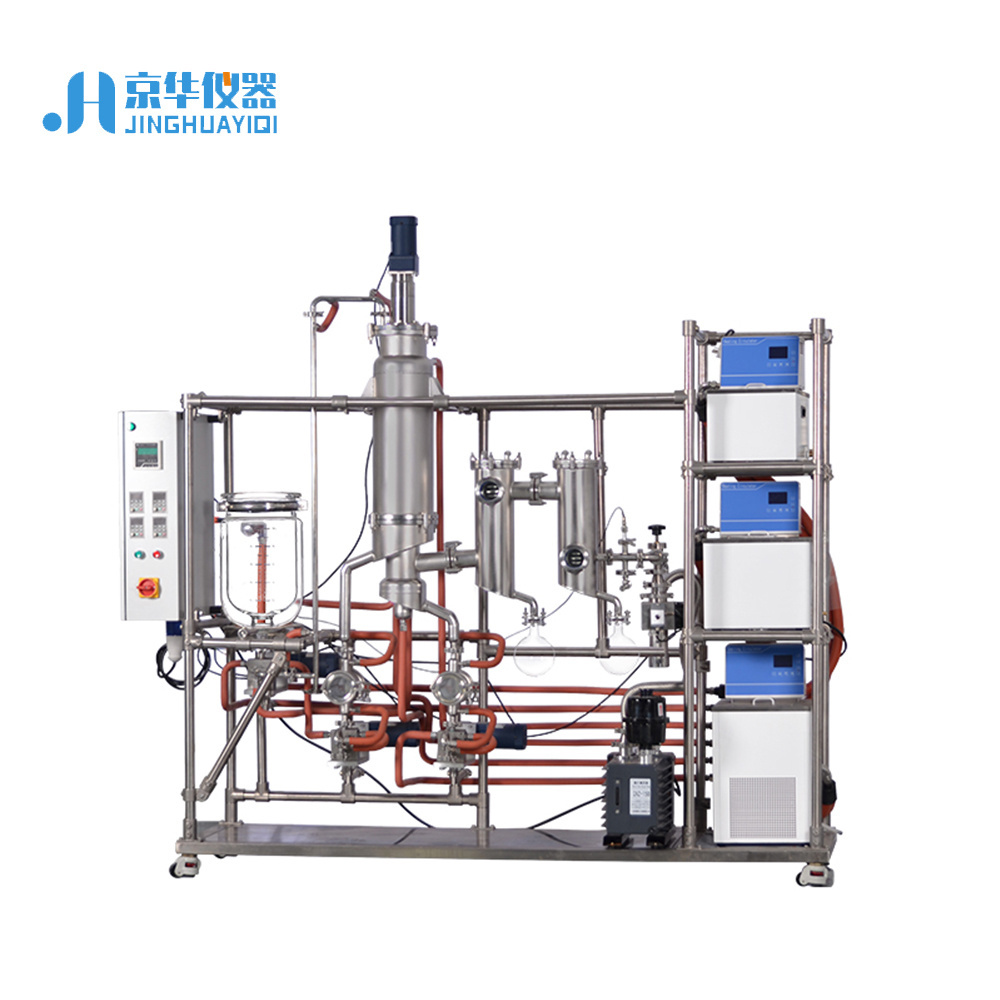

Lab Terpenes Ethanol Purification Extraction Evaporator Equipment Short Path Molecular Distillation
|
Stainless Steel Molecular Distillation Machine |
|
|
Feed Rate (kg/hr) |
2.5-40 |
|
Estimate Throughtput at End of 8-10 hr. day for oil |
20kg |
|
Effective Evaporation Area |
0.25square |
|
Motor Power |
120w |
|
Maximum Speed |
350rpm |
|
Barrel Diameter |
150mm |
|
Feeding Funnel Volume |
3L |
|
Dimension (W x H x D) |
2270 x 228 x 1940mm |
|
Internal Condenser Area |
0.4square |
|
Jacketed Feeding Vessel Volume |
3L |
|
Distillate Receiving Vessel Volume |
5L. |
|
Residue Receiving Vessel Volume |
3L |
|
Stirrer Seal |
Oil-less Magnetic, High Vacuum |
|
Wiper |
PTFE Scraper |
|
Structure Material |
Borosilicate Glass 3.3 |
|
Vacuum Gauge |
Pirani style |
|
Operation Temperature |
Up to 250℃ |
|
Vacuum Level |
Better than 10 Pa |
|
Voltage |
220V-single phase |
