Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Right
-
Dimensions(L*W*H):
-
2500*1200*1500
-
Weight:
-
1800 KG
-
Certification:
-
CE
-
Warranty of core components:
-
1 years
-
Screen Frames Min Size:
-
1100*300 mm
-
Screen Frames Max Size:
-
1800*750 mm
-
Screen Frames Thickness:
-
20~40 mm
-
PCB Min Size:
-
80*50 mm
-
PCB Max Size:
-
1500*450 mm
-
PCB Thickness:
-
0.4~6 mm
-
PCB Warpage:
-
<1%
-
Printing Accuracy:
-
±0.025 mm
-
Repeat Position Accuracy:
-
±0.015 mm
-
Control Method:
-
PC control
Quick Details
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Voltage:
-
220 V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Right
-
Dimensions(L*W*H):
-
2500*1200*1500
-
Weight:
-
1800 KG
-
Certification:
-
CE
-
Warranty of core components:
-
1 years
-
Screen Frames Min Size:
-
1100*300 mm
-
Screen Frames Max Size:
-
1800*750 mm
-
Screen Frames Thickness:
-
20~40 mm
-
PCB Min Size:
-
80*50 mm
-
PCB Max Size:
-
1500*450 mm
-
PCB Thickness:
-
0.4~6 mm
-
PCB Warpage:
-
<1%
-
Printing Accuracy:
-
±0.025 mm
-
Repeat Position Accuracy:
-
±0.015 mm
-
Control Method:
-
PC control
Products Description

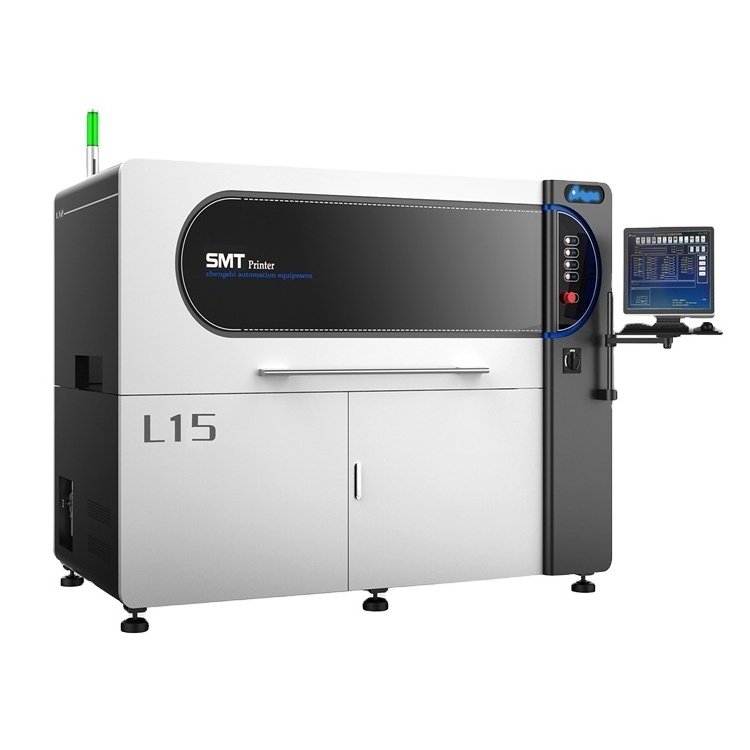

SMT High Quality Machine, Fully Automatic Vision Solder Paste Printer, PCB Printer
L15 automatic vision printing machine is mainly used in mini LED, semiconductor printing, smart phone fields, smart wear, can perfectly meet the fine pitch of 0.015, 0.15 Pich, and high precision requirements.
Our Advantages
Calibration System
Use the world's most advanced UVW platform, with servo motor and lead screw. Three axes linkage is designed with super-high dynamic characteristics.
Image System
Squeegee System
Arch bridge type suspending direct-connected scraper. Four wheel positioning slide type with bilateral double sliders.
Transport System
Unique belt transmission system is used to avoid being stuck or fall-off of PCB. Use flexible side clamp and vacuum block.
Cleaning System
Three options of dry cleaning, wet cleaning and vacuum cleaning can be selected. Sprinkler system ensures spraying evenly, from top to bottom.
Option Function
Stencil Inspection System
Through light source compensation at stencil and CCD real time inspection check on stencil holes.
Automatic Dispensing System
In view of the different printing requirement and different PCB board.
Automatic Add Solder
It can automatic add solder at periodic time and position.
SPI On Line
It can seamless connection and realized with customer MES system.
Industry 4.0
It can provide customer with industry 4.0 intelligence production.
Specifications
|
Model
|
L15
|
|
Screen Frames
|
1100*300 ~ 1800*750 mm
|
|
PCB Size
|
80*50 ~ 1500*450 mm
|
|
PCB Thickness
|
0.4 ~ 6 mm
|
|
PCB Warpage
|
< 1%
|
|
Transport Direction
|
Left - Right ; Right - Left ; Left - Left ; Right - Right
|
|
Transport Speed
|
Max 1500 mm/s Programmable
|
|
Repeat Printing Accuracy
|
± 0.015 mm
|
|
Control Method
|
PC control
|
|
Machine Weight
|
Approx: 1800 kg
|
|
Machine Dimensions
|
2500 (L) * 1200（Ｗ）* 1500（Ｈ）ｍｍ
|
Certifications
Product packaging
