- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
HDPE-WS
-
Specification:
-
20mm-1200mm
-
Length:
-
5.8m/11.6m/11.8m, 5.8m/11.6m/11.8m
-
Thickness:
-
2.3mm-67.9mm, 2.3mm-67.9mm
-
Standard:
-
ISO,GB/T,CE
-
Product name:
-
Haojia High Density PE100 Polyethylene Pipe
-
Application:
-
Drainage,Water Supply
-
Color:
-
black with blue line
-
Usage:
-
Delivery Water
-
Size:
-
20mm-1200mm
-
Certification:
-
CE ISO GB/T
-
Advantage:
-
Environment Friendly
Quick Details
-
Processing Service:
-
Cutting, Moulding
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Haojia
-
Model Number:
-
HDPE-WS
-
Specification:
-
20mm-1200mm
-
Length:
-
5.8m/11.6m/11.8m, 5.8m/11.6m/11.8m
-
Thickness:
-
2.3mm-67.9mm, 2.3mm-67.9mm
-
Standard:
-
ISO,GB/T,CE
-
Product name:
-
Haojia High Density PE100 Polyethylene Pipe
-
Application:
-
Drainage,Water Supply
-
Color:
-
black with blue line
-
Usage:
-
Delivery Water
-
Size:
-
20mm-1200mm
-
Certification:
-
CE ISO GB/T
-
Advantage:
-
Environment Friendly
Description

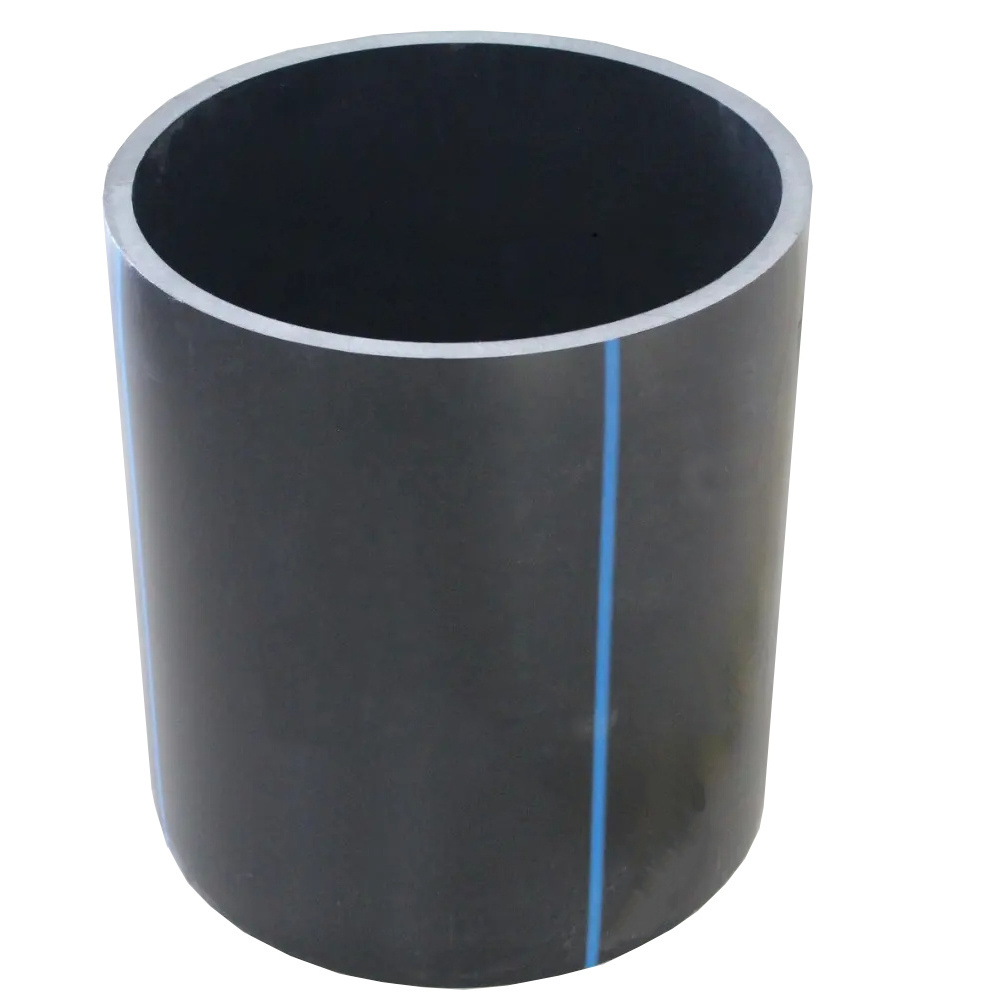

PE100 HDPE Water and Drainage Pipe
PE(polyethylene) materials are widely used in the field of water supply pipe manufacturing due to their high strength, corrosion resistance and non-toxicity. Because it does not rust, it is an ideal pipe to replace the ordinary iron water supply pipe. PE water supply pipe implementation product national standard: GB/T 13663-2000 "water supply polyethylene (PE) pipe".
Specification
|
PE100 HDPE Pipe
|
|
|
|
|
|
|||||
|
Standard:GB/T 13663-2000,ISO4427-2007
|
|
|
|
|
|
|||||
|
Nominal Diameter (mm) |
Standard Dimension Ratio
|
|
|
|
|
|||||
|
|
SDR26
|
SDR21
|
SDR17
|
SDR13.6
|
SDR11
|
|||||
|
|
Nominal Pressure (MPa)
|
|
|
|
|
|||||
|
|
0.6
|
0.8
|
1.0
|
1.25
|
1.6
|
|||||
|
|
Nominal Thickness(en,mm)
|
|
|
|
|
|||||
|
20
|
--
|
--
|
--
|
2.3
|
2.3
|
|||||
|
25
|
--
|
--
|
2.3
|
2.3
|
2.3
|
|||||
|
32
|
--
|
2.3
|
2.3
|
2.4
|
3.0
|
|||||
|
40
|
2.3
|
2.3
|
2.4
|
3.0
|
3.7
|
|||||
|
50
|
2.3
|
2.3
|
2.9
|
3.7
|
4.6
|
|||||
|
63
|
2.5
|
3.0
|
3.7
|
4.7
|
5.8
|
|||||
|
75
|
2.9
|
3.6
|
4.5
|
5.6
|
6.8
|
|||||
|
90
|
3.5
|
4.3
|
5.4
|
6.7
|
8.2
|
|||||
|
110
|
4.2
|
5.3
|
6.6
|
8.1
|
10.0
|
|||||
|
125
|
4.8
|
6.0
|
7.4
|
9.2
|
11.4
|
|||||
|
140
|
5.4
|
6.7
|
8.3
|
10.3
|
12.7
|
|||||
|
160
|
6.2
|
7.7
|
9.5
|
11.8
|
14.6
|
|||||
|
180
|
6.9
|
8.6
|
10.7
|
13.3
|
16.4
|
|||||
|
200
|
7.7
|
9.6
|
11.9
|
14.7
|
18.2
|
|||||
|
225
|
8.6
|
10.8
|
13.4
|
16.6
|
20.5
|
|||||
|
250
|
9.6
|
11.9
|
14.8
|
18.4
|
22.7
|
|||||
|
280
|
10.7
|
13.4
|
16.6
|
20.6
|
25.4
|
|||||
|
315
|
12.1
|
15.0
|
18.7
|
23.2
|
28.6
|
|||||
|
355
|
13.6
|
16.9
|
21.1
|
26.1
|
32.2
|
|||||
|
400
|
15.3
|
19.1
|
23.7
|
29.4
|
36.3
|
|||||
|
450
|
17.2
|
21.5
|
26.7
|
33.1
|
40.9
|
|||||
|
500
|
19.1
|
23.9
|
29.7
|
36.8
|
45.4
|
|||||
|
560
|
21.4
|
26.7
|
33.2
|
41.2
|
50.8
|
|||||
|
630
|
24.1
|
30.0
|
37.4
|
46.3
|
57.2
|
|||||
|
710
|
27.2
|
33.9
|
42.1
|
52.2
|
--
|
|||||
|
800
|
30.6
|
38.1
|
47.4
|
58.8
|
--
|
|||||
|
900
|
34.4
|
42.9
|
53.3
|
--
|
--
|
|||||
|
1000
|
38.2
|
47.7
|
59.3
|
--
|
--
|
|||||
|
1200
|
--
|
57.2
|
67.9
|
--
|
--
|
|||||
