Quick Details
-
Warranty:
-
12 months, 1 Year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sealine Or OEM
-
Model Number:
-
SDG6500SE WITH 186FA DEISLE ENGINE
-
Speed:
-
3000/3600rpm
-
Engine:
-
186FA diesel engine
-
Alternator:
-
100% copper
-
Color:
-
Yellow/ Any color for using
-
Type:
-
Silent Type
-
Control panel:
-
Standard Panel/ or Advanced Panel
-
Certificate:
-
ISO9001:2008
-
Options:
-
Customer's Logo
-
Certification:
-
CE, ISO9001
Quick Details
-
Rated Voltage:
-
220V
-
Rated Current:
-
12V/8.3A
-
Frequency:
-
50/60HZ
-
Warranty:
-
12 months, 1 Year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sealine Or OEM
-
Model Number:
-
SDG6500SE WITH 186FA DEISLE ENGINE
-
Speed:
-
3000/3600rpm
-
Engine:
-
186FA diesel engine
-
Alternator:
-
100% copper
-
Color:
-
Yellow/ Any color for using
-
Type:
-
Silent Type
-
Control panel:
-
Standard Panel/ or Advanced Panel
-
Certificate:
-
ISO9001:2008
-
Options:
-
Customer's Logo
-
Certification:
-
CE, ISO9001
|

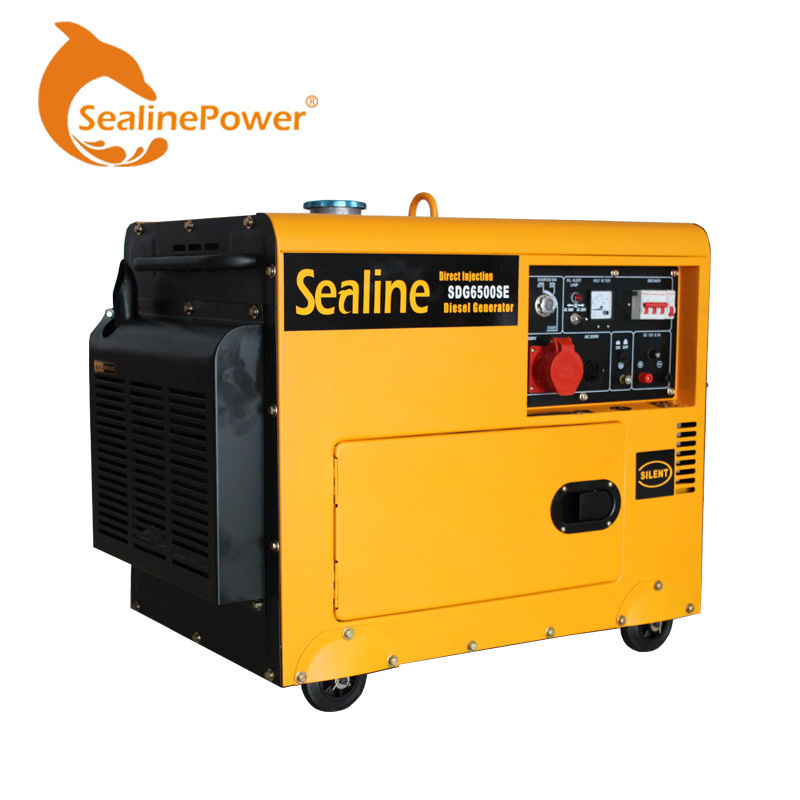

Silent Type Diesel Generator(Low Noise) |
||
|
Generator |
Model |
SE6500SE |
|
Rated Output(KVA) |
4.6/5.0 |
|
|
Max Output(KVA) |
5.0/5.5 |
|
|
Rated Frequency(Hz) |
50/60 |
|
|
Rated AC Voltage(V) |
110/220, 120/240, 220/380, 240/400 |
|
|
DC Outpu(V) |
12V/8.3A |
|
|
Power Factor(cosθ) |
1/0.8(Three Phase) |
|
|
Phase |
Single or Three Phase |
|
|
Starting System |
Electric Starter |
|
|
Noise Level(Dba/7m) |
68-72 |
|
|
Fuel Tank Capacity(L) |
16 |
|
|
Continuous Running Time(Hr) |
8.5/7.8 |
|
|
Engine |
Model |
SE186FAE |
|
Power(HP) |
6.3 |
|
|
Engine Type |
Air-Cooled; Single-Cylinder; 4-Stroke; OHV |
|
|
Fuel Type |
0#(Summer), -10#(Winter)Diesel Oil |
|
|
Displacement(cc) |
418 |
|
|
Min Fuel Consumption(g/kw/h) |
280 |
|
|
Lube Oil Capacity(L) |
1.65 |
|
|
Dimension & Packing |
Dimension(L*W*H)(mm) |
910*530*740 |
|
Net Weight(kg) |
150 |
|
|
Packing |
In Strong Corrugated Board Carton |
|
|
20FT Loading Quantity |
72 |
|
|
40HQ Loading Quantity |
144 |
|
|
Payment |
Payment Terms |
T/T or L/C |
|
Minimum Order Quantity |
5 PCS |
|
|
Delivery Lead Time |
Within 15days after received the depsoite |
|
|
Warranty |
One Year or 500 Working Hours |
|
1.Modern workshops have advanced production lines with whole set of inspection, testing equipment. 2.Skilled assemblers is vital to promise high quality production.
3.Flow card to record each details carefully.
4.Test engine at least 45mins to adjust the best state.
Pack with 7 layer corrugated carton box and wooden pallet to ensure safty during transportation.
