Quick Details
-
Mounting Type:
-
Standard or customized connector
-
Description:
-
Hot Resistant Ultrasonic Sensor, Ultrasonic sensor
-
Model Number:
-
HT-1MPLT/R2317-1
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
HTW
-
Theory:
-
Ultrasonic sensing
-
Output:
-
Analogue output
-
Structure:
-
Water proof
-
Norminal frequency:
-
1Mhz
-
Max. input voltage:
-
150
-
Working temp. range:
-
0~+150
-
Storage temp. range:
-
-20~-+80
-
Case material:
-
stainless steal
-
Paint (primer only):
-
Yellow
Quick Details
-
Usage:
-
Distance/Object detection
-
Series:
-
HT-1MPLT/R2317-1
-
Features:
-
Transceiver
-
Mounting Type:
-
Standard or customized connector
-
Description:
-
Hot Resistant Ultrasonic Sensor, Ultrasonic sensor
-
Model Number:
-
HT-1MPLT/R2317-1
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
HTW
-
Theory:
-
Ultrasonic sensing
-
Output:
-
Analogue output
-
Structure:
-
Water proof
-
Norminal frequency:
-
1Mhz
-
Max. input voltage:
-
150
-
Working temp. range:
-
0~+150
-
Storage temp. range:
-
-20~-+80
-
Case material:
-
stainless steal
-
Paint (primer only):
-
Yellow

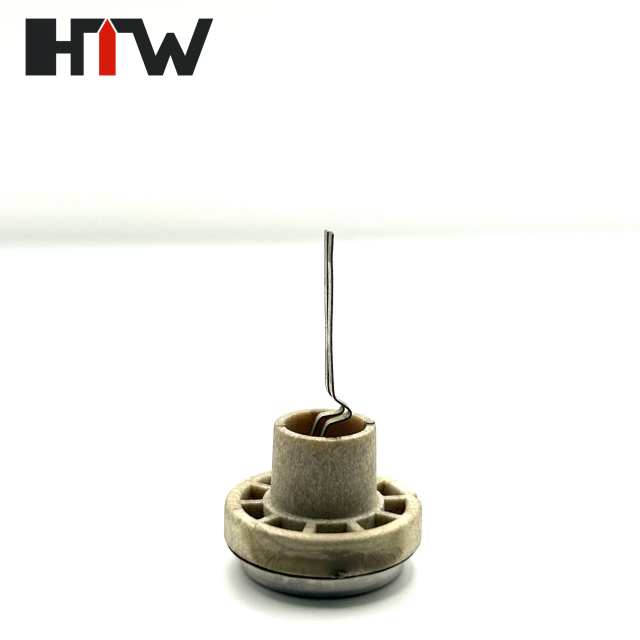

HT-1MPLT/R2317-1 is perfect to use to detect water flow in hot environments, the transducer is hot resistant and can be applied in environments with temperatures up to 150℃/302℉
| Parameters | Value |
| Nominal frequency (MHz) | 0.97±0.04 |
| Echo voltage (mV) | ≥720 |
| Normal Input voltage (Vp-p) | 3 |
| Capacitance (pF) | 500±30% |
| Max. input voltage (Vp-p) | 5 |
| Shell material | PEI(Ultrason E 2010 G6) |
| Metal case | 316 stainless steal |
| Pin | Neusilber |
| Transmission media | Water |
| Work temp. range (℃) | -0—+150 |
| Storage temp. range (℃) | -20—+80 |
| Work humidity range (%RH) | 15—90 |
| Storage humidity range (%RH) | 10—60 |
1. The product only can be used in neutral water.
2. Don’t knock the surface of stainless steel.
3. Avoid the air bubbles or other things being attached to the surface of the sensor.
4. Normal test conditions: Water temperature: +5 ℃ to +35℃; Humidity: 45-85%;
Air pressure: 86-106KPa
5. Standard test conditions : Water temperature: 25±2℃, Humidity: 60-70%;
Air pressure: 86-106KPa
