Quick Details
-
Voltage:
-
380V, 50 HZ
-
Power:
-
33.5-116kw
-
Dimension(L*W*H):
-
10*6*4.5m
-
Weight:
-
3000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product Name:
-
paper pulp egg tray molding machine
-
capacity:
-
1000-4000pieces/h
-
raw materials:
-
waste paper,old newspaper,magazine and so on
-
final product:
-
egg carton, egg box, egg tray, bottle tray and so on
-
dryer:
-
trailer,conveyor,metal
-
fuel:
-
coal,natural gas,dieseal oil
-
Layout:
-
Professional layout design
-
whole line:
-
pulp molding system,forming system,drying system
-
Factory Visit:
-
Welcome
Quick Details
-
Production Capacity:
-
1000-5000kg/h
-
Place of Origin:
-
China
-
Brand Name:
-
HengYuan
-
Voltage:
-
380V, 50 HZ
-
Power:
-
33.5-116kw
-
Dimension(L*W*H):
-
10*6*4.5m
-
Weight:
-
3000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product Name:
-
paper pulp egg tray molding machine
-
capacity:
-
1000-4000pieces/h
-
raw materials:
-
waste paper,old newspaper,magazine and so on
-
final product:
-
egg carton, egg box, egg tray, bottle tray and so on
-
dryer:
-
trailer,conveyor,metal
-
fuel:
-
coal,natural gas,dieseal oil
-
Layout:
-
Professional layout design
-
whole line:
-
pulp molding system,forming system,drying system
-
Factory Visit:
-
Welcome
Excellent performance and large capacity top paper pulp egg tray molding machine
Cell/whatsapp 0086 18039505731
This machine is controlled highly automation, easily learned, convenient services, and can
widely use in different business.
It can produce egg carton, egg box, egg tray, bottle tray, agricultural train seeding cup, industrial
production packing. The equipment is best-selling nation and is sold abroad.
|
1 |
Egg tray mould quantity |
HY-2 |
HY-4 |
HY-16 |
HY-32 |
|
2 |
Raw material |
Waste paper |
Waste paper |
Waste paper |
Waste paper |
|
3 |
Output for egg tray |
500pcs/hour |
1000pcs/hour |
2000-3000pcs/hour |
3000-4000pcs/hour |
|
4 |
Net weight per piece (gram) |
70g-75g |
70g-75g |
70g-75g |
70g-75g |
|
5 |
The volume of waste paper consumed |
0.06ton / hour |
0.1ton / hour |
0.13ton / hour |
0.2ton / hour |
|
6 |
The volume of water consumed |
0.12tons |
0.15ton / hour |
0.2ton / hour |
0.4ton / hour |
|
7 |
Operators number |
3-4workers |
4-6workers |
4-6workers |
5-7workers |
The whole production line include pulp making system + egg tray molding system + egg tray drying system + egg tray packing system.
Pulping system: Hydrapulper ,Pulp pump ,Air compressor,agitator,Self priming pump,pulping machine.
Forming system: Full automatic egg tray forming machine, Vacuum pump , High pressure washer , Negative pressure tank , mould, Transfer mould, baler .
Drying system: There are 2 kinds of drying system. One is metal, the other is brick. The conveyor plate can be one layer and multi-layer, direct combustion hot air circulation. Using the imported or joint venture brand burner (domestic uses the stove bar), equipped with an automatic control cabinet.
Note : The country with very high-temperature can choose the natural drying method, no need for the drying system. This way can reduce the cost.
Packing system : baling machine.
Mold for egg packaging tray machine
The moulds material can use plastic or aluminous depend on buyer's request.
1.What kind of material we can use as the raw material?
Any kind of waste paper like old newspaper,magazines,books,A4 paper etc, and easy to get.
2.What kind of Fuel can be used for the whole production line?
Gernerally is coal,natural gas,dieseal oil can be selectable.
3. What kind of finished products it can make?
All paper trays like paper egg tray,egg carton,egg box,fruit tray,bottle tray,electric product packing,shoes tray etc.
4. If we want to visit your factory, what is the best route? Which city is near your factory?
From Beijng,Shanghai, Hangzhou, Nanjing, Xiamen, Guangzhou, Shenzhen, Chengdu, Chongqing etc to Zheng Zhou city has direct flight to XinZheng international Airport.we could pick up you at airport.
5. How many countries you have shipped to foreign county.
Many countries like India,Algeria,Nigera,Malawi,Bolivia,Egypt, Turkey etc.
Q: The cover area is large , can you provide us a layout diagram?
A :

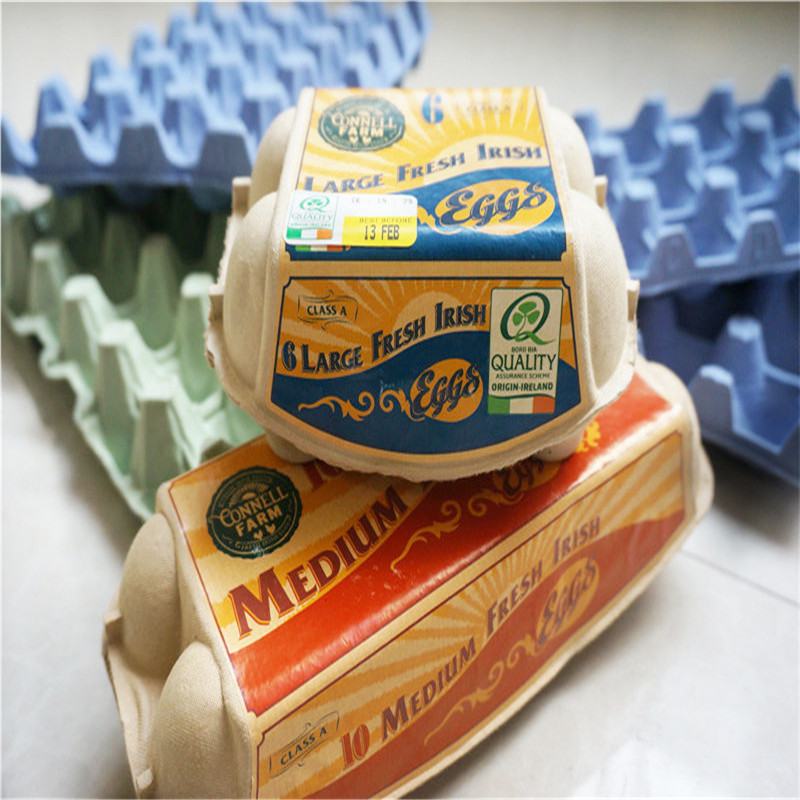

Final product of egg packaging tray machine
Wooden case for egg packaging tray machine.
1.
One year warranty
for whole machines.
2.Providing free quick-wear partc.
3.Low charge for continue maintenance when warranty is expired.
4.Exclusive engineer support at any time.
5.We can provide free training to end-users.
