Quick Details
-
Dimension(L*W*H):
-
500*500*950mm
-
Weight (T):
-
0.08 T
-
Power (kW):
-
5
-
Product Name:
-

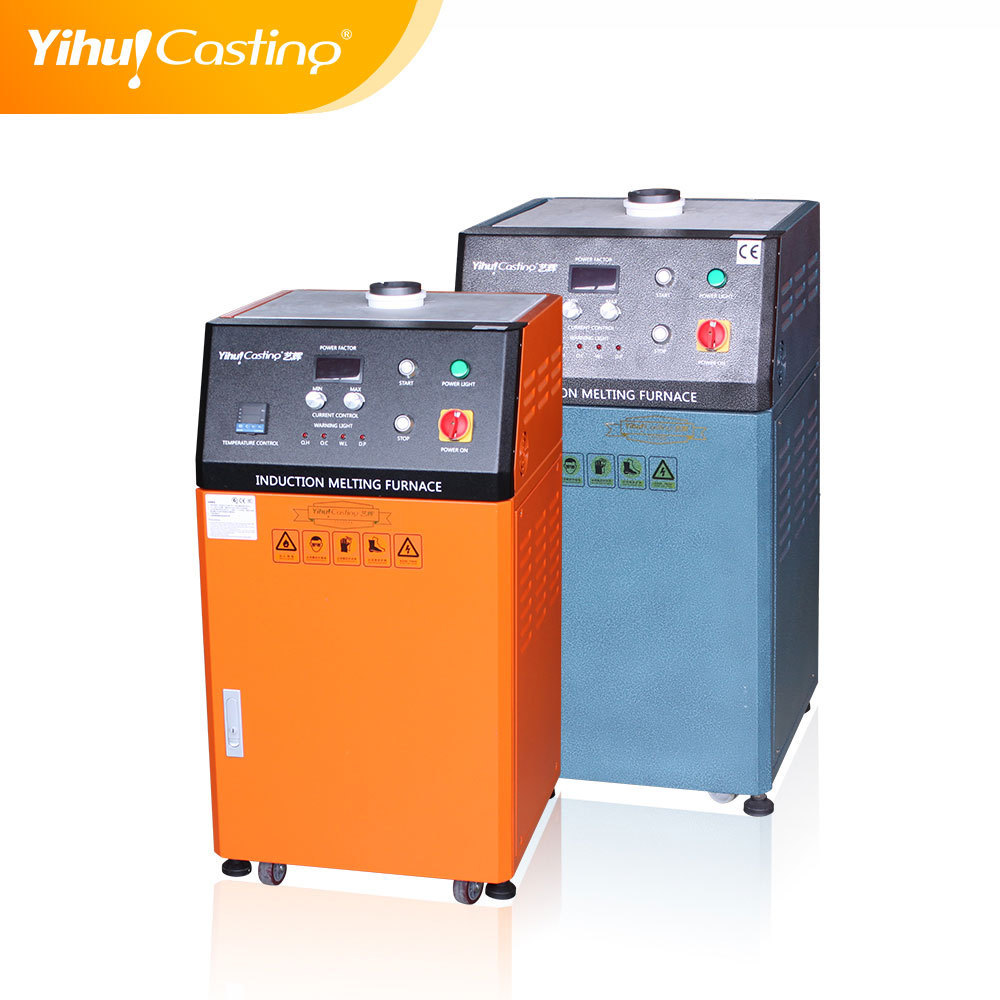

Hot sale induction Melting furnace made by Yihui
-
After-sales Service Provided:
-
overseas service provided all over the world
-
Supply voltage:
-
220V/50Hz 1Phase or 380V,50HZ,3phase
-
Power consumption:
-
5/12kw
-
Weight:
-
80KGS
-
Suitable Metal:
-
Gold,silver,copper,aluminum,brass
-
Working Temperature:
-
50-1350Degree
-
Working time:
-
1-3min
-
Heating method:
-
Medium Frequency Induction Heating
-
Capacity:
-
2-8kg gold melting
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yihui Casting
-
Voltage:
-
220V/50HZ1Phase or 380V,50HZ,3Phase
-
Dimension(L*W*H):
-
500*500*950mm
-
Weight (T):
-
0.08 T
-
Power (kW):
-
5
-
Product Name:
-
Hot sale induction Melting furnace made by Yihui
-
After-sales Service Provided:
-
overseas service provided all over the world
-
Supply voltage:
-
220V/50Hz 1Phase or 380V,50HZ,3phase
-
Power consumption:
-
5/12kw
-
Weight:
-
80KGS
-
Suitable Metal:
-
Gold,silver,copper,aluminum,brass
-
Working Temperature:
-
50-1350Degree
-
Working time:
-
1-3min
-
Heating method:
-
Medium Frequency Induction Heating
-
Capacity:
-
2-8kg gold melting
.
.
| Description | Model |
Voltage |
Phase | Weight | Power input | Size |
| 1kg mini furnace | Z.M.MF.ML001 | AV220V 50/60Hz | 1 | 28kg | 3KW | 58x33x30 |
|
2kg mini furnace |
Z.M.MF.ML00 2 |
AV220V 50/60Hz | 1 | 28kg | 5KW | 58x33x30 |
| 1kg melting furnace | Z.M.MF. 00001 | 220V/380V ±15% | 1/3 | 28kg | 5KW,10KW | 5 0 x 50 x 95 |
| 2 kg melting furnace | Z.M.MF. 00002 | 220V/380V ±15% | 1/3 | 28kg | 5 KW/12KW | 5 0 x 50 x 95 |
| 2.5 kg melting furnace | Z.M.MF. 00025 | 220V/380V ±15% | 1/3 | 28kg | 5 KW/12KW | 5 0 x 50 x 95 |
| 3 kg melting furnace | Z.M.MF. 00003 | 220V/380V ±15% | 1/3 | 28kg | 5 KW/12KW | 5 0 x 50 x 95 |
| 4kg melting furnace | Z.M.MF. 00004 | 220V/380V ±15% | 1/3 | 28kg | 5KW/12KW | 5 0 x 50 x 95 |
| 5 kg melting furnace | Z.M.MF. 00005 | 380V ±15% | 3 | 28kg | 12KW | 5 0 x 50 x 95 |
| 5.5 kg melting furnace | Z.M.MF. 00055 | 380V ±15% | 3 | 28kg | 12KW | 50x50x95 |
| 6kg melting furnace |
Z.M.MF. 00006 |
380V ±15% | 3 | 28kg | 15KW | 50x50x95 |
| 8kg melting furnace | Z.M.MF. 00008 | 380V ±15% | 3 | 28kg | 15KW |
50x50x95 |
