Quick Details
-
Engine Type:
-
4-Stroke
-
Fuel:
-
Gas / Diesel
-
Condition:
-
New
-
Displacement:
-
50CC
-
Max. Speed:
-
> 80km/h
-
Product Name:
-
Gas Moped With Pedals
-
Color:
-
Optional
-
Displacement (ml)::
-
49
-
Max. Speed (Km/h)::
-
40-60
-
Compression::
-
4.7: 1
-
Front Brake::
-
Drum brake
-
Rear Brake::
-
Drum brake
-
Front Tire::
-
2.50-17
-
Rear Tire::
-
2.75-17
-
Dry. Weigth (kg)::
-
88
-
Certification:
-
CCC
-
Type:
-
Cub Motorcycle
-
Brake(F/R):
-
Drum/ Drum
Quick Details
-
Place of Origin:
-
Chongqing, China
-
Model Number:
-
PT-NC90
-
Brand Name:
-
Pantera
-
Engine Type:
-
4-Stroke
-
Fuel:
-
Gas / Diesel
-
Condition:
-
New
-
Displacement:
-
50CC
-
Max. Speed:
-
> 80km/h
-
Product Name:
-
Gas Moped With Pedals
-
Color:
-
Optional
-
Displacement (ml)::
-
49
-
Max. Speed (Km/h)::
-
40-60
-
Compression::
-
4.7: 1
-
Front Brake::
-
Drum brake
-
Rear Brake::
-
Drum brake
-
Front Tire::
-
2.50-17
-
Rear Tire::
-
2.75-17
-
Dry. Weigth (kg)::
-
88
-
Certification:
-
CCC
-
Type:
-
Cub Motorcycle
-
Brake(F/R):
-
Drum/ Drum

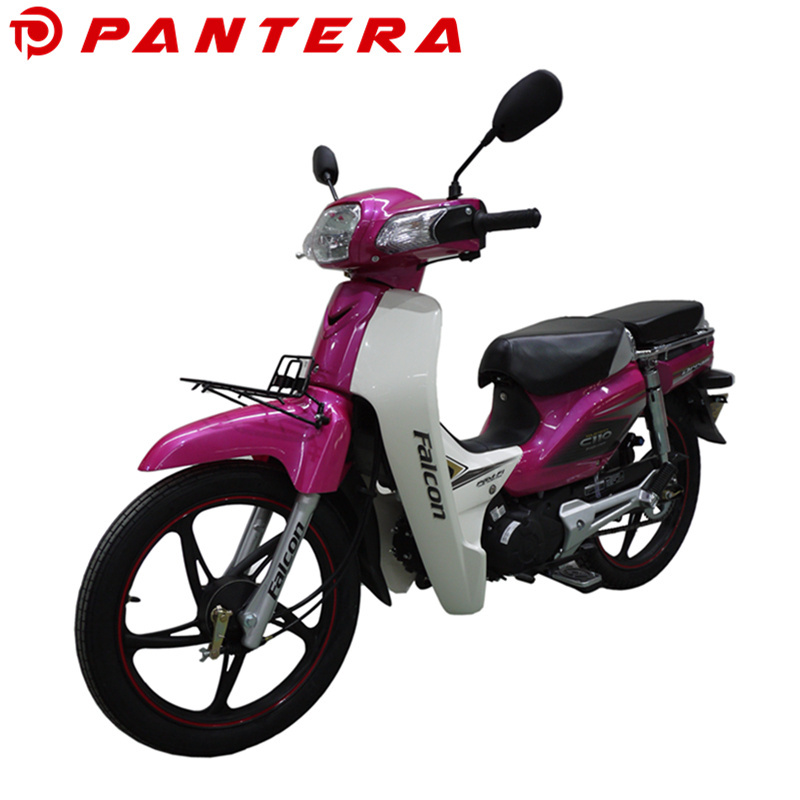

50cc Docker C90 Gas Moped With Pedals
| Technical | |
| ENGINE | |
| Engine Type: : | Single cylinder,wind-cooled,Four-stroke |
| Displacement (ml): | 49 |
| Output, Max(Kw/Rpm): | 1.8 / 8000 (1 ± 5%) |
| Torque, Max(N.M/Rpm): | 2.4 / 6000 (1 ± 5%) |
| Max. Speed (Km/h): | 40-60 |
| Compression: | 4.7: 1 |
| Constant-Speed Fuel Economy: | 1.4L/100km |
| Starting System: |
Electric/Kick
|
| Transmission System: | 4-speed sequential gearbox |
| ClASSIS | |
| Front Brake: | Drum brake |
| Rear Brake: | Drum brake |
| Front Tire: | 2.50-17 |
| Rear Tire: | 2.75-17 |
| DIMENSIONS | |
| L X W X H (mm): | 1855×665×1043 (L×W×H) |
| Max. Permissionable Weight (kg): | 150 |
| Dry. Weigth (kg): | 88 |
| Others | |
| Options: |
Alarm system remote control starter/front disc brake/digital speedometer/L&R fender printing colors
|
|
Container Loading(20'GP) |
Qty / 20' GP: 70 sets by SKD (steel frame + carton) |
| Container Loading(40'HQ): |
Qty / 40' HQ: 144 sets by SKD (steel frame + carton) |
Overview
Different Angles
Optional Colors
Details
left handbar digital speedmeter right handbar
Blue light headlight and side mirror
front drumbrake engine rear drumbrake
EEC Certification
Warranty:
We can offer one year warranty or engine 6000kms. And 1% easy-damaging spare parts are provided for free
| easy broken spare parts list: | |
| No. | spare parts name |
| 1 | carburetor |
| 2 | electric parts |
| 3 | headlight assy |
| 4 | meter assy |
| 5 | L. front turning light |
| 6 | R. front truning litht |
| 7 | L. rear turning light |
| 8 | R. raer turning light |
| 9 | tail light assy |
| 10 | front and rear inner tube |
| 11 | rearview mirror |
| 12 | pasoes |
| 13 | chain |
| 14 | handle switch |
| 15 | handle bar |
| 16 | cable |
| 17 | battery |
| 18 | seat |
| 19 | rear shock |
| 20 | footrest |
| 21 | starting arm |
| 22 | gear pedal |
| 23 | muffler |
| Note: the above spare parts packaged separately, carton packaging, standard marks. | |
SKD steel frame + cartoon or wooden frame
CKD wooden case or cartoon
