Quick Details
-
Place of Origin:
-
Guangdong, China
-
FrequencyRange (MHz):
-
DC-3000MHz
-
Return Loss(dB):
-
≥19
-
VSWR(dB):
-
≤ 1.25
-
PIM3(dBm):
-
≤ -110 dBc (with 2 x 43dBm)
-
Maximum Input (W):
-
100 W
-
Operating temperature(℃):
-
-25℃ to +70℃
-
Relative humidity(℃):
-
0 ~ 95 %
-
Connector Type:
-
DIN-M
-
Ingress protection:
-
IP65
-
Color:
-
Black
Quick Details
-
Brand Name:
-
REBANO
-
Type:
-
Dummy Load
-
Model Number:
-
RB-Load 100W
-
Place of Origin:
-
Guangdong, China
-
FrequencyRange (MHz):
-
DC-3000MHz
-
Return Loss(dB):
-
≥19
-
VSWR(dB):
-
≤ 1.25
-
PIM3(dBm):
-
≤ -110 dBc (with 2 x 43dBm)
-
Maximum Input (W):
-
100 W
-
Operating temperature(℃):
-
-25℃ to +70℃
-
Relative humidity(℃):
-
0 ~ 95 %
-
Connector Type:
-
DIN-M
-
Ingress protection:
-
IP65
-
Color:
-
Black

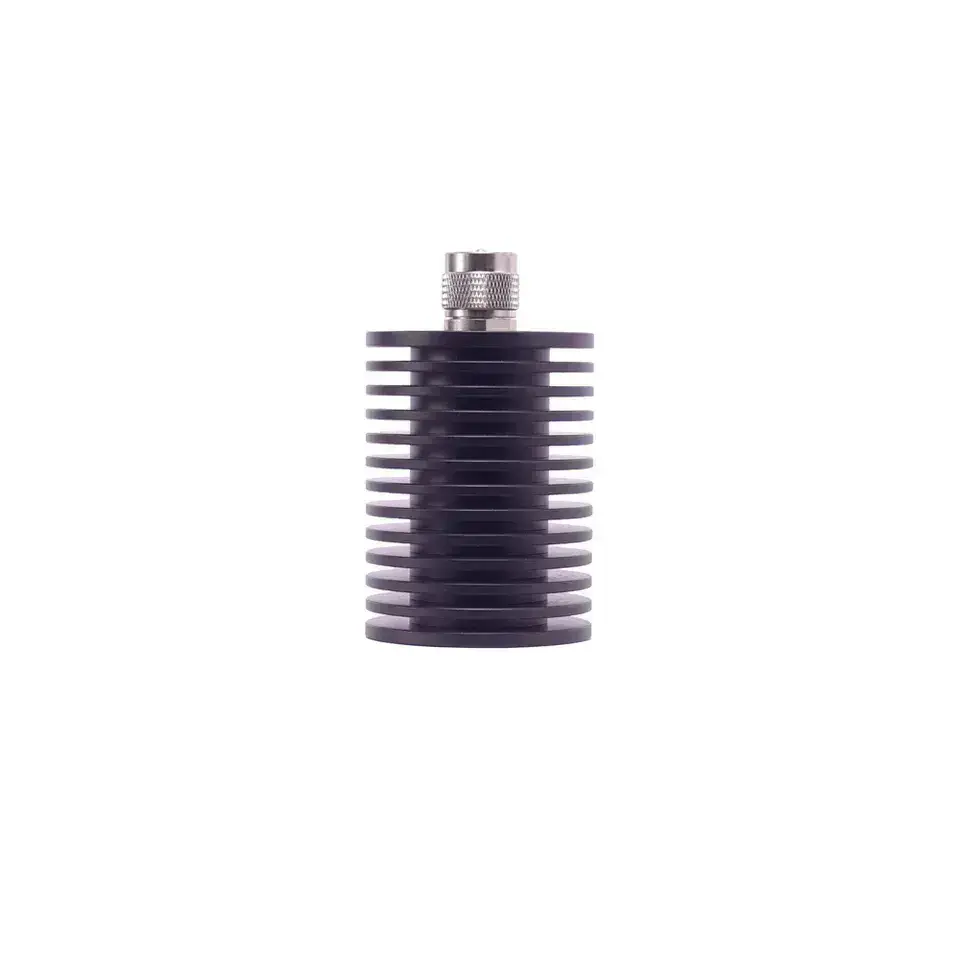

Products Description
Product Paramenters
|
1
|
Product Name
|
LOAD
|
|
2
|
Frequency Range(MHz)
|
DC-3000MHz
|
|
3
|
Return Loss(dB)
|
≥19
|
|
4
|
VSWR(dB)
|
≤ 1.25
|
|
5
|
PIM3(dBm)
|
≤ -110 dBc (with 2 x 43dBm)
|
|
6
|
Maximum Input (W)
|
100 W
|
|
7
|
Operating temperature(℃)
|
-25℃ to +70℃
|
|
8
|
Impedance(Ω)
|
50 Ω
|
|
9
|
Size(mm)
|
110 x 80 x 50 mm
|
|
10
|
Weight(g)
|
1500g
|
|
11
|
Connector Type
|
DIN Female
|
|
12
|
Ingress protection
|
IP65
|
|
13
|
Color
|
Black
|
