* The machine welding is made by welding plant and welding robots.
* After the welding,we make stress relief process by vibration system.
* After the stress relief process machine frame goes to CNC 5 axes machining centers for accuracy.
* All reference surfaces and connection holes are machined.
- Product Details
- {{item.text}}
Quick Details
-
Blade Length (mm):
-
4000 mm
-
Backgauge Travel (mm):
-
20 - 800 mm
-
Throat Depth (mm):
-
150 mm
-
Brand Name:
-
AHYW
-
Power (kW):
-
22 kW
-
Weight (KG):
-
14000 KG
-
Place of Origin:
-
Anhui, China
-
Dimension(L*W*H):
-
4600x1960x2510(mm)
-
Year:
-
2019
-
Product name:
-

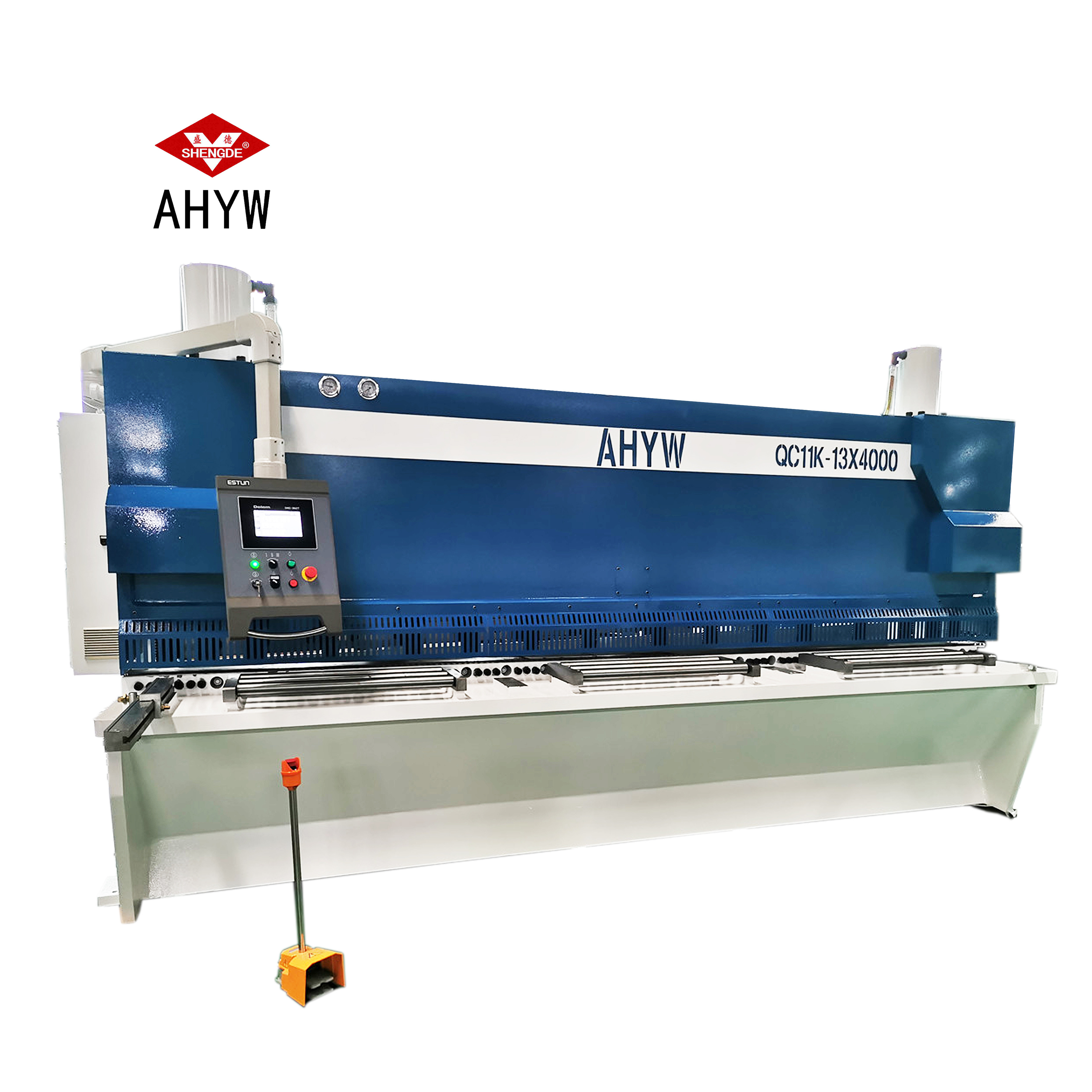

Guillotine hydraulic shearing machine sheet metal QC11K-12X4000
-
CNC System:
-
Nanjin Estun(E21S)
-
Electrical components:
-
Schneider TE France
-
Main Motor:
-
Anhui Sangta
-
Hydraulic Valve:
-
China Brand
-
Oil Pump:
-
SUNNY USA Brand
Quick Details
-
Max. Cutting Width (mm):
-
4000 mm
-
Max. Cutting Thickness (mm):
-
12 mm
-
Shearing Angle:
-
0.5-2.5°
-
Blade Length (mm):
-
4000 mm
-
Backgauge Travel (mm):
-
20 - 800 mm
-
Throat Depth (mm):
-
150 mm
-
Brand Name:
-
AHYW
-
Power (kW):
-
22 kW
-
Weight (KG):
-
14000 KG
-
Place of Origin:
-
Anhui, China
-
Dimension(L*W*H):
-
4600x1960x2510(mm)
-
Year:
-
2019
-
Product name:
-
Guillotine hydraulic shearing machine sheet metal QC11K-12X4000
-
CNC System:
-
Nanjin Estun(E21S)
-
Electrical components:
-
Schneider TE France
-
Main Motor:
-
Anhui Sangta
-
Hydraulic Valve:
-
China Brand
-
Oil Pump:
-
SUNNY USA Brand
Products Description
YWGS SERIES CNC HEAVY DUTY GUILLOTINE SHEARING MACHINE
The Guillotine shear machine makes heavy-duty shear affordable. Frame and cutting beam offer maximum rigidity and resistance to deflection and torsional force for accurate shearing of mild steel up to 30mm. This guillotine shear features four cutting edges that can be turned three times before grinding for increased production life. Cost-efficiently manufactured. Our guillotine shear machine fit your needs and your budget.
Features:
Working Environment:
Power supply: three phase AC 380V 50Hz / customized
Ambient temperature: 0 ℃ ～ 45 ℃
Relative humidity: 20% ～ 80%
Advantages
Application Area
Building & Decoration
Electricity & Appliances
Automobile & Shipbuilding Aerospace
Details Images
DELEM DAC-360T CNC Controller
●Panel based housing
●Bright LCD screen
●Back / front gauge control
●Retract function
●Cutting angle and gap control
●Stroke length limitation
●Manual movement of all axes
●Force control
●Sheet thickness measurement
●RTS, Return to Sender function
●Second servo axis (DAC-362T)
●Sheet support
●Bright LCD screen
●Back / front gauge control
●Retract function
●Cutting angle and gap control
●Stroke length limitation
●Manual movement of all axes
●Force control
●Sheet thickness measurement
●RTS, Return to Sender function
●Second servo axis (DAC-362T)
●Sheet support
Roller Feeding Workbench
Roller on the workbench can reduce friction and protect the workpiece surface; delicate design is convenient for cutting petty materials by hand.
Safety Fence
Protective guards on each side can protect the operator's safety, and can clearly see the shearing situation, which is safe and convenient.
Presser
The pressing device adopts integral circuit and independent parallel pressing cylinder. When the sheet metal is uneven, it can be freely expanded and compressed on the sheet metal, and the pressing force can also be adjusted with the sheet material and thickness, without damage to the plate surface.
Schneider Electrics
High quality electric parts are adopted to ensure machine stability, which can perform well even when the electricity is unstable. The users can easily get the replacement anywhere worldwide.
SUNNY Pump
American world famous brand for hydraulic pump performs well and provides great power for the whole hydraulic system
HIWIN Ball Screw & Linear Guide
High performance decelerating motor, precision HIWIN ball screw and dual linear guide rail are adopted for CNC rear stop device, and the transmission positioning accuracy is less than ±0.1mm.
Rear Pneumatic Sheet Support
Rear pneumatic support system
provides support and allows more precise cuts by keeping the material lifted throughout the cut,
avoiding hanging down the wide and thin sheets.
|
TYPE
|
Throat Depth
(mm)
|
Cutting Width
(mm)
|
Width
(mm)
|
Dimension
(mm)
|
Cutting thickness
(mm)
|
Stroke
Number
(t/m)
|
Weight
(t)
|
Power
(kw)
|
|
6*2500
|
100
|
2500
|
410
|
3120*1600*1900
|
6
|
≥15
|
5
|
7.5
|
|
6*3200
|
100
|
3200
|
410
|
3800*1600*1900
|
6
|
≥15
|
5.7
|
7.5
|
|
6*4000
|
100
|
4000
|
500
|
4600*1600*2040
|
6
|
≥13
|
7.5
|
7.5
|
|
8*2500
|
100
|
2500
|
410
|
3030*1620*1930
|
8
|
≥12
|
5
|
7.5
|
|
8*3200
|
100
|
3200
|
570
|
3800*1800*2100
|
8
|
≥12
|
7.5
|
11
|
|
8*4000
|
100
|
4000
|
570
|
4600*1800*2170
|
8
|
≥12
|
/
|
11
|
|
10*2500
|
100
|
2500
|
570
|
3100*1850*2100
|
10
|
≥10
|
6.5
|
11
|
|
10*3200
|
100
|
3200
|
570
|
3800*2000*2130
|
10
|
≥10
|
8.5
|
11
|
|
10*4000
|
100
|
4000
|
570
|
4600*2000*2130
|
10
|
≥10
|
11
|
11
|
|
12*2500
|
100
|
2500
|
540
|
3200*2000*2050
|
12
|
≥10
|
7
|
18.5
|
|
12*3200
|
100
|
3200
|
600
|
3900*2100*2500
|
12
|
≥10
|
11
|
18.5
|
|
16*2500
|
100
|
2500
|
550
|
3330*2000*2240
|
16
|
≥10
|
8.5
|
22
|
|
16*3200
|
100
|
3200
|
600
|
3850*2020*2460
|
16
|
≥6
|
11.4
|
22
|
|
16*4000
|
100
|
4000
|
600
|
4700*2000*2550
|
16
|
≥7
|
14.6
|
22
|
|
20*2500
|
120
|
2500
|
600
|
3100*2000*2510
|
20
|
≥6
|
12
|
30
|
|
20*3200
|
120
|
3200
|
800
|
3920*2300*2800
|
20
|
≥5
|
17.6
|
30
|
|
20*4000
|
120
|
4000
|
800
|
4900*2200*2800
|
20
|
≥4
|
21.5
|
30
|
|
25*2500
|
120
|
2500
|
780
|
3100*2330*2850
|
25
|
≥6
|
18.2
|
37
|
|
30*2500
|
120
|
2500
|
780
|
3200*2350*2800
|
30
|
≥6
|
20
|
45
|
Production Process
Recommend Products
Packing & Delivery
|
Packing
|
|
|
|
Size
|
(L) * (W) * (H)
|
|
|
Weight
|
T
|
|
|
Details
|
The normal package is water proof plastic package, the optional ply wooden case is after fumigation treatment. Needn’t timber inspection, saving shipping time.If container is too tigher, we will use pe film for packing or pack it according to customers special request.
|
|
|
Delivery
|
|
|
|
Means
|
by sea, by rail
|
|
|
Container
|
20' GP 40 'GP 40' HQ or OT RT
|
|
|
Details
|
According to the size and weight of machines, we will provide our customers with optimized shipping solution.
|
|
