Quick Details
-
Warranty(Year):
-
1-Year
-
Product Weight（kg）:
-
38
-
Input Voltage(V):
-
AC 90-240V, 50/60hz
-
Lamp Luminous Flux(lm):
-
22000
-
CRI (Ra>):
-
90
-
Working Temperature(℃):
-
-15 - 50
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
grace
-
Emitting Color:
-
rgb
-
color:
-
rgb colorful, Changeable
-
color temperature:
-
3200K +4500K +5600K
-
dimmer:
-
0-100% linear dimmer
-
beam angle:
-
7-13degree
-
light source:
-
350W LED
-
focus:
-
manual
-
lum flux:
-
20000-24000 Lm
-
good effect distance:
-
spot beam clear be seen at 100-150 meters
-
Certification:
-
ce
Quick Details
-
Color Temperature(CCT):
-
3200K 4500K 6500K
-
Type:
-

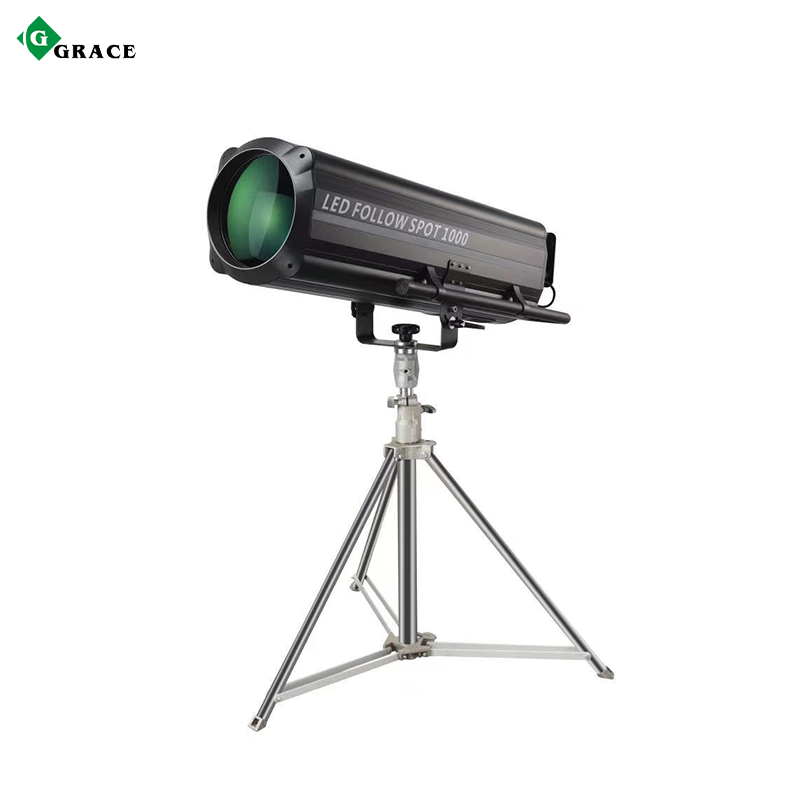

Follow Spot Lights
-
Application:
-
wedding /show /stage
-
Warranty(Year):
-
1-Year
-
Product Weight（kg）:
-
38
-
Input Voltage(V):
-
AC 90-240V, 50/60hz
-
Lamp Luminous Flux(lm):
-
22000
-
CRI (Ra>):
-
90
-
Working Temperature(℃):
-
-15 - 50
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
grace
-
Emitting Color:
-
rgb
-
color:
-
rgb colorful, Changeable
-
color temperature:
-
3200K +4500K +5600K
-
dimmer:
-
0-100% linear dimmer
-
beam angle:
-
7-13degree
-
light source:
-
350W LED
-
focus:
-
manual
-
lum flux:
-
20000-24000 Lm
-
good effect distance:
-
spot beam clear be seen at 100-150 meters
-
Certification:
-
ce
Product paramenters
|
Light Sources
|
|
|
|
|
||||
|
LED
|
1pc 1000W brightness LED lamp
|
|
|
|
||||
|
|
Lifespan: more than 50000hours
|
|
|
|
||||
|
|
Color temperature: 8000-8500K
|
|
|
|
||||
|
Optics
|
|
|
|
|
||||
|
Color wheel
|
5 colors + white
|
|
|
|
||||
|
Color temperature wheel
|
3200K +4500K +5600K
|
|
|
|
||||
|
Beam angle
|
7-13degree
|
|
|
|
||||
|
Focus
|
manual
|
|
|
|
||||
|
Dimmer
|
0-100% linear dimmer
|
|
|
|
||||
|
Strobe
|
1-20 times/second
|
|
|
|
||||
|
Light Output
|
|
|
|
|
||||
|
Luminous flux:
|
20000-24000 Lm
|
|
|
|
||||
|
Optimal projection distance
|
100-150m/3937 - 5905in
|
|
|
|
||||
|
channel
|
function
|
value
|
|
|
||||
|
1
|
CTO
|
Every five values corresponds to a CTO；
|
|
|
||||
|
2
|
IRIS
|
0--255
|
|
|
||||
|
3
|
DIMMING
|
0--255
|
|
|
||||
|
4
|
STROBE
|
0-9 Shut down，10—255，low to fast
|
|
|
||||
|
5
|
COLOR
|
0—9 white；
10-49 color 1； 50-99 color 2； 100-149 color 3； 150-199 color 4； 200-255 color 5； |
|
|
||||
|
Color rendering index exceeds CRI>90
|
|
|
|
|
||||
|
The lamp body is made of all-aluminum alloy material, small in size, light in weight and high in brightness
|
|
|
|
|
||||
|
For the better operation of the lighting engineer, we made a rotating design on the opposite control panel
|
|
|
|
|
||||
|
Twelve 8mm thick copper tubes are used to conduct heat and then
|
|
|
|
|
||||
|
dissipate heat through a large area of aluminum sheet to ensure the best
|
|
|
|
|
||||
|
heat dissipation effect of LED lamp beads
|
|
|
|
|
||||
|
This product has white light and five color changes of red, yellow, green, blue and orange
|
|
|
|
|
||||
|
0-100% linear dimming
|
|
|
|
|
||||
|
6-10 degree linear magnification and focus function, and all use electronic push rod and 512 control, no manual operation
|
|
|
|
|
||||
|
Body size:
|
120.5×37.55×42.27cm/47.44×14.78×16.64in
|
|
|
|
||||
|
Body net weight:
|
38kg/83.77lb
|
|
|
|
||||
|
Bracket size:
|
120×24×20cm/47.24×9.84×7.87in
|
|
|
|
||||
|
Flight case size:
|
131×60×62cm/51.57×23.62×24.10in
|
|
|
|
||||
|
The total weight of air box packaging:
|
80kg/176.36lb
|
|
|
|
||||
