Quick Details
-
Lamp Body Material:
-
Aluminum
-
Color Rendering Index(Ra):
-
87
-
PPFDμmol/(m2·s):
-
1229 at 0.3m
-
Input Voltage(V):
-
AC230V
-
Lamp Luminous Flux(lm):
-
20000
-
Working Temperature(℃):
-
-30 - 40
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Koray
-
Model Number:
-
RX-G1910-90D-K1
-
Warranty(Year):
-
3
-
Luminous Efficacy(μmol/J):
-
2.5
-
Light Output(μmol/s):
-
300
-
Dimension (in, mm):
-
12.8*7.5*2.95, 325*190*75
-
Net Weight (kg):
-
3.3
-
LED Source:
-
Samsung Lm301H + OSR 660nm 730nm
-
Beam Angle (°):
-
90
-
Recommended Hanging Height (in, m):
-
8~20, 0.2~0.5
-
Footprint (in, m):
-
24*24, 0.6*0.6
-
Temperature Rise (K):
-
28
-
Certification 1:
-
ce FCC RoHS
-
Certification 2:
-
Energy Star
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
197
-
Support Dimmer:
-
Yes
-
Application:
-
BLOOM, VEG
-
Lamp Body Material:
-
Aluminum
-
Color Rendering Index(Ra):
-
87
-
PPFDμmol/(m2·s):
-
1229 at 0.3m
-
Input Voltage(V):
-
AC230V
-
Lamp Luminous Flux(lm):
-
20000
-
Working Temperature(℃):
-
-30 - 40
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Koray
-
Model Number:
-
RX-G1910-90D-K1
-
Warranty(Year):
-
3
-
Luminous Efficacy(μmol/J):
-
2.5
-
Light Output(μmol/s):
-
300
-
Dimension (in, mm):
-
12.8*7.5*2.95, 325*190*75
-
Net Weight (kg):
-
3.3
-
LED Source:
-
Samsung Lm301H + OSR 660nm 730nm
-
Beam Angle (°):
-
90
-
Recommended Hanging Height (in, m):
-
8~20, 0.2~0.5
-
Footprint (in, m):
-
24*24, 0.6*0.6
-
Temperature Rise (K):
-
28
-
Certification 1:
-
ce FCC RoHS
-
Certification 2:
-
Energy Star
|
Description
|
|
|
|
Model Number
|
RX-G1910-90D-K1-F16
|
|
|
Dimension
|
325×190×75mm (12.8×7.5×2.95in)
|
|
|
Input Voltage
|
AC100~305V
|
|
|
AC Input Power
|
120W
|
|
|
Beam Angle
|
90°
|
|
|
PPF
|
300μmol/s
|
|
|
PPFD
|
1229μmol/m²/s @ 0.3m
|
|
|
Lifetime
|
50,000 hrs
|
|
|
Warranty
|
3 yrs
|
|

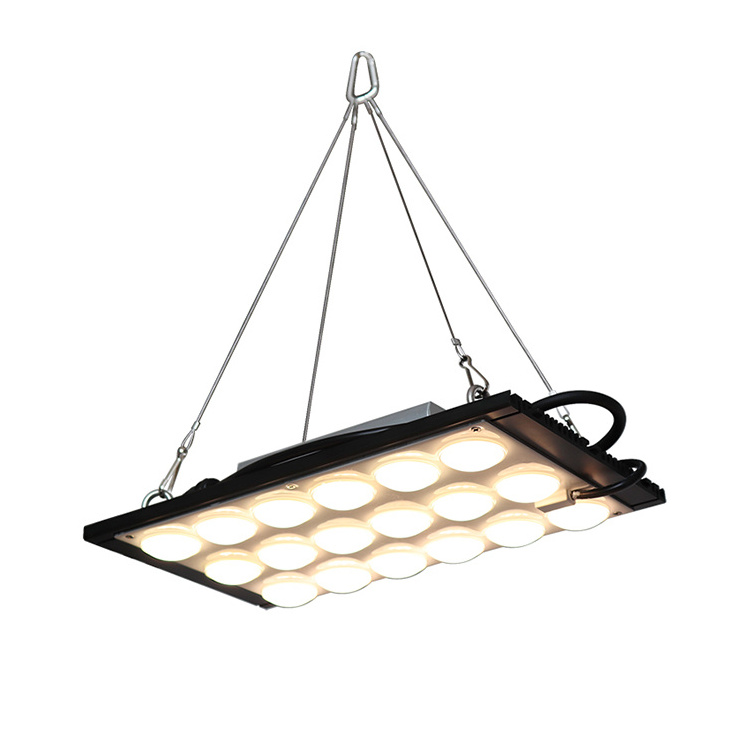

RX-G1910-90 Series LED Grow Light: Patent design from Koray. Reflector Cup or Frosted Lens + Reflector Cup type can be optional for 30~50% stronger canopy penetration and evener light distribution than traditional quantum boards. It’s made of Samsung LM301B/LM301H and OSR Oslon-SSL 660nm or 660nm + 730nm, creating tailor-made light recipes for faster growing and higher gram buds. It can be waterproof IP65 for safer operation in high humidity environment. Forget the traditional LED grow light boards, choose the RX-G1910-90 series for your grow tents cultivation.
2. Made of Samsung + OSR LED, creating up to 2μmol/J high efficacy.
3. Tailor-made light recipes for fast growing and high gram buds.
4. Waterproof up to IP65 for safe operation in high humidity environment.
5. 15mm thickness heatsink with 20mm spacing to LED driver for great heat dissipation.
6. Input Voltage: AC100~305V,Maximum Power: 120W, PF>0.9.
7. Lifetime: 50,000hrs, Warranty: 3yrs for 90D board and power supply, 1yr for 90 board.
8. CE RoHS FCC.
|
Model
|
RX-G1910-90-F15
|
RX-G1910-90-F16
|
RX-G1910-90-K1-F15
|
RX-G1910-90D-K1-F16
|
||||
|
Dimension
|
286×180×14mm
11.3×7.1×0.6in
|
|
325×190×70mm
12.8×7.5×2.8in
|
325×190×75mm
12.8×7.5×2.95in
|
||||
|
Net Weight
|
0.29kg
|
|
3kg
|
3.3kg
|
||||
|
Light Recipe
|
F15
|
F16
|
F15
|
F16
|
||||
|
PPFD (µmol/m²/s)
|
A: 1164/0.3m
B: 767/0.3m
C: 433/0.3m
|
A: 1011/0.3m
B: 656/0.3m
C: 369/0.3m
|
2
092/0.2m
1069/0.3m
416/0.5m
|
2400/0.2m
1229/0.3m
466/0.5m
|
||||
|
Illuminance (Lx)
|
A: 50827/0.3m
B: 28753/0.3m
C: 7688/0.3m
|
A: 62259/0.3m
B: 40555/0.3m
C: 22877/0.3m
|
129100/0.2m
65597/0.3m
25449/0.5m
|
159353/0.2m
80975/0.3m
30700/0.5m
|
||||
|
PPF (
µmol/s
)
|
A: 309
B: 205
C: 117
|
A: 286
B: 189
C: 108
|
270
|
300
|
||||
|
Power Input
|
A: 2.8A @ 38V
B: 1.8A @ 37V
C: 1.0A @ 36V
|
A: 2.8A @ 38V
B: 1.8A @ 37V
C: 1.0A @ 36V
|
120W
(At AC230V)
|
|
||||
|
Comment
|
A: 106W
2.9µmol/J
B: 67W 3.1µmol/J
C: 36W
3.2µmol/J
|
A: 106W
2.7µmol/J
B: 67W 2.8µmol/J
C: 36W
3.0µmol/J
|
Heatsink + MEANWELL LED Driver XLG-150-H-AB
For 24×24in area
|
|
||||
|
Above data is showed as
A
to
A
,
B
to
B
and
C
to
C
. And heat sink is required in condition
"
C
".
Surface Temperature Rise:
Tc 32K.
Operating Temperature:
-30°C~40°C.
Lifetime:
50,000hrs (Ta≤25°C).
Tolerance Range for Optical and Electrical Data: ±10%. Beam Angle: 90°.
Recommended Irradiation Distance:
0.2m~0.5m (8in~20in).
Footprint:
60×60cm (24×24in).
|
|
|
|
|
||||
Do plants need high Lumen/Lux?
Lumen/Lux is only for human eyes perceiving, not for plants growth. So if someone tell you to choose high Lumen/Lux grow lights, please tell them 'It's cool', then walk away XD. What's plants really need is enough PPFD.
What's the PPFD?
PPFD (Photosynthetic Photon Flux Density) is a measure of the number of photons in the 400-700nm range of the visible light spectrum (Photosynthetic Active Radiation or PAR) that fall on a square meter of target area per second.
Full Spectrum=Simulated Sunlight?
Not all wavelengths are good for plants. In general, red+blue is enough for plants growth. Adding little green with be pleasant for human eyes, but High CRI ≠ High Efficiency. Red (660nm) should be strengthen when green added.
What's LCP?
LCP
(Light Compensation Point)
is the lowest photosynthesis demands of PPFD. Plants start to grow only when PPFD exceeds LCP.
What's LSP?
When PPFD reaches a certain intensity, the photosynthetic rate will no longer be increased. That called LSP
(Light Saturation Point)
.
