Quick Details
-
Brand Name:
-
PIOGOODS
-
Use:
-
ftth, FTTH
-
Warranty Time:
-
13 months
-
Network:
-
optical fiber network
-
Product name:
-
FTTH with wdm Filter catv Optical Receiver nodes mini optical node
-
Input wavelength:
-
1540~1560nm
-
Reflection loss:
-
≥50dB
-
Fiber linker:
-
SC/APC
-
Output level:
-
AGC: -2~-12dBm/82dBuv
-
Working Temperature:
-
-25~55℃
-
Storage Temperature:
-
-40~75℃
-
Size:
-
90*60*22mm
Quick Details
-
Type:
-
Fiber Optic Transceivers
-
Model Number:
-
PG-1000GSD
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
PIOGOODS
-
Use:
-
ftth, FTTH
-
Warranty Time:
-
13 months
-
Network:
-
optical fiber network
-
Product name:
-
FTTH with wdm Filter catv Optical Receiver nodes mini optical node
-
Input wavelength:
-
1540~1560nm
-
Reflection loss:
-
≥50dB
-
Fiber linker:
-
SC/APC
-
Output level:
-
AGC: -2~-12dBm/82dBuv
-
Working Temperature:
-
-25~55℃
-
Storage Temperature:
-
-40~75℃
-
Size:
-
90*60*22mm

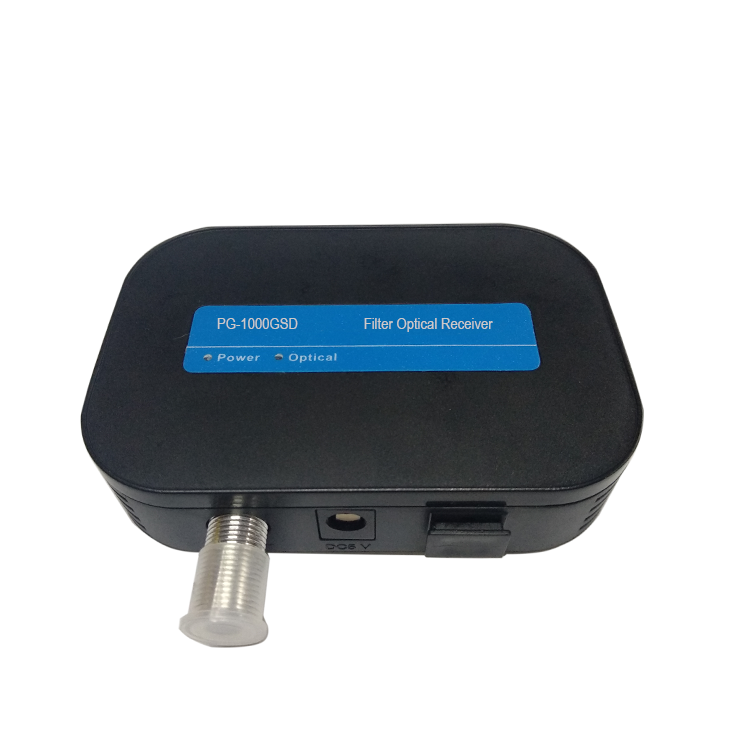

PG-1000GSD FTTH with wdm Filter catv Optical Receiver nodes mini optical node indoor
Products Description
Fiber to the home broadband access is the ultimate development goal, FTTH fitering optical receiver FWR-1000GSD is the target terminal products for this goal. It selects low optical power receiving and RF technique which can achieve the requirement of FTTH that CATV & xPON optical network receiving 1550nm wavelength in CATV signal., FWR-1000GSD is provided with the optical power receiving monitoring indicator LED on the panel（≥-15dBm).“FWR-1000GSD”means the function of filtering.
Product Specification
|
Item
|
|
Unit
|
FWR-1000GSD
|
|
|
Optical characteristic
|
input wavelength
|
nm
|
1540~1560
|
|
|
|
responsivity
|
(A/W)
|
≥0.85/≥0.9
|
|
|
|
receive power range
|
dB
|
2～-15
|
|
|
|
reflection loss
|
dB
|
≥50
|
|
|
|
fiber linker
|
/
|
SC/APC
|
|
|
RF characteristic
|
bandwidth/flatness
|
MHz/dB
|
45～1000
|
|
|
|
output level
|
dBuv
|
AGC: -2~-12dBm/82
|
|
|
|
reflection loss
|
dB
|
≥14（characteristic impedance75Ω）
|
|
|
|
RF output impedance
|
Ω
|
75(RF Output Interface Metric F)
|
|
|
|
MER
(Closed Equalization) |
dB
|
≥25(64QAM)
≥31(256QAM)
|
|
|
|
MER
(Open Equalization) |
dB
|
≥32(64QAM)
≥34(256QAM)
|
|
|
|
Bit Error Rate(BER)
|
/
|
≤1×10-4
|
|
|
|
CNR/CTB/CSO
|
dB
|
≥43/≥54/≥54(-9dBm/Nominal Level)
|
|
|
Others
|
Power Supply/Consumption
|
V/W
|
External AC90~250V→DC5/≤2
|
|
|
|
Working/Storage Temperature
|
℃
|
-25~55 / -40~75
|
|
|
|
Working/Storage Humidity
|
%
|
5~90(No Condensation)
|
|
