Quick Details
-
Model Number:
-
SEN-Brass Flow Sensor
-
Material:
-
Brass Copper
-
Connection:
-
G / NPT 1/4", 1/2", 3/4", 1"
-
Medium:
-
Liquid Water
-
Application:
-
Water Heater
-
Flow Range:
-
0.3-5.0L/Min, 1-30L/min, 2-45L/Min, 4-45L/Min
-
Water Temperature:
-
Less than 80 ℃
-
Insulated Resistor:
-
>100MΩ
-
Pressure Performance:
-
Less Than 1.75MPa
-
Electrical Strength:
-
AC500V, 50Hz
-
Rated Voltage / Electric Current:
-
DC5V, ≤10mA
Quick Details
-
Type:
-
Flow Sensors
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SAIER
-
Model Number:
-
SEN-Brass Flow Sensor
-
Material:
-
Brass Copper
-
Connection:
-
G / NPT 1/4", 1/2", 3/4", 1"
-
Medium:
-
Liquid Water
-
Application:
-
Water Heater
-
Flow Range:
-
0.3-5.0L/Min, 1-30L/min, 2-45L/Min, 4-45L/Min
-
Water Temperature:
-
Less than 80 ℃
-
Insulated Resistor:
-
>100MΩ
-
Pressure Performance:
-
Less Than 1.75MPa
-
Electrical Strength:
-
AC500V, 50Hz
-
Rated Voltage / Electric Current:
-
DC5V, ≤10mA
DN8~50 Turbine flow switch DC3-24V Hall Effect Water flow Sensor 1/4" 1/2" 3/4" 1" 1.5" 2" Magnetic Water Flow Sensor
Product Description
|
Product Name
|

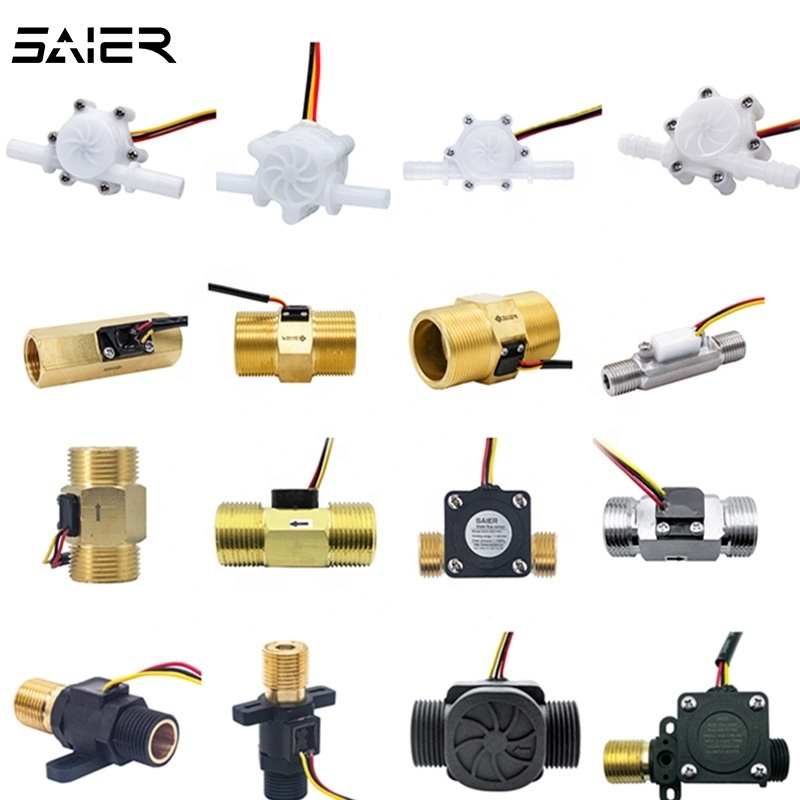

Miniature brass copper flowmeter, turbine flow sensor
|
|
|
|
|
||||
|
Material
|
Brass copper
|
|
|
|
|
||||
|
Connection Size
|
NPT / G 1/4", 3/8", 1/2", 3/4", 1" etc.
|
|
|
|
|
||||
|
Flow Range
|
0.3-3.0 L/Min, 1-30 L/Min, 2-45L/Min, 4-45L/Min
|
|
|
|
|
||||
|
Contact Capacity
|
DC 5-24V, can be customized DC 3V
|
|
|
|
|
||||
|
Function
|
Brass copper flow sensor, convenient installation, waterproof explosion-proof, Heat resistance and cold resistance.the pulse signal output, Can be used for water flow switch, also can be used to measure the flow, Water flow meter for shower room credit card system.have two flow range.If you want to increase the temperature control ,you can add heat sensitive resistor, the output line is green, but also can be connected to the other two special line to control temperature.
|
|
|
|
|
||||
|
Features
|
The product is light and flexible in appearance, small in size, plug and play, easy to install. The impeller is equipped with a stainless steel shaft, which is more powerful and prolongs the service life. The sealing ring adopts the upper and lower force structure and never leaks. The Hall element is imported and isolated from water to prevent water ingress and never age. All raw materials are in compliance with ROHS testing standards.
|
|
|
|
|
||||
Details Images
Impeller Flowmeter
Application: Coffee machine & capsule coffee machine.
Material: Food grade
