- Product Details
- {{item.text}}
Quick Details
-
Engine Brand:
-
CHANGCHAI
-
Applicable Industries:
-
road construction
-
Travel Speed:
-
2.4-7.8 km/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
lutong
-
Dimension(L*W*H):
-
2830*1290*2650
-
Drum diameter:
-
700mm
-
Marketing Type:
-
New Product 2023
-
static linear load:
-
147/163N/cm
-
Vibrate frequency:
-
50Hz
-
Wheelbase:
-
2000mm
-
Diesle model:
-
ZN390B
-
Water Tank capacity:
-
200L
-
After-sales Service Provided:
-
Free spare parts
-
Starting mode:
-
Electric Starting
-
Certificatio:
-
CE,ISO
Quick Details
-
Type:
-
Vibratory Roller
-
Power:
-
26.5kw
-
Weight:
-
3500
-
Engine Brand:
-
CHANGCHAI
-
Applicable Industries:
-
road construction
-
Travel Speed:
-
2.4-7.8 km/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
lutong
-
Dimension(L*W*H):
-
2830*1290*2650
-
Drum diameter:
-
700mm
-
Marketing Type:
-
New Product 2023
-
static linear load:
-
147/163N/cm
-
Vibrate frequency:
-
50Hz
-
Wheelbase:
-
2000mm
-
Diesle model:
-
ZN390B
-
Water Tank capacity:
-
200L
-
After-sales Service Provided:
-
Free spare parts
-
Starting mode:
-
Electric Starting
-
Certificatio:
-
CE,ISO
Why Choose Us
01 More than 60 road roller series
02 Guarantee steady parts supply
no less than 10 years.
03 Core Patent technology holding,
ISO and CE certification
02 Guarantee steady parts supply
no less than 10 years.
03 Core Patent technology holding,
ISO and CE certification
Product Paramenters

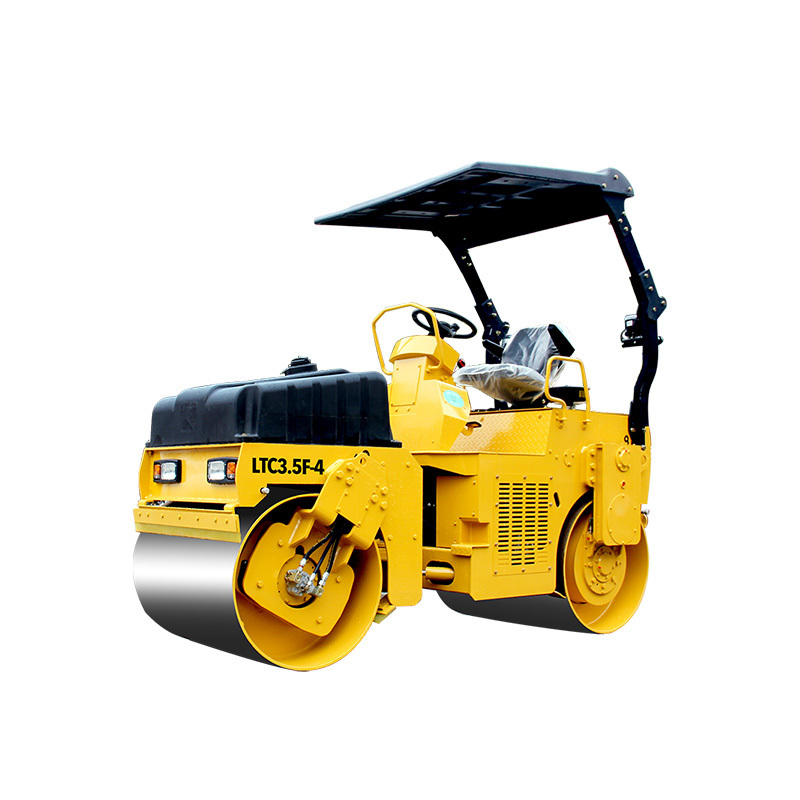

LTC3.5F series wheeled vibratory roller is applicable for maintenance of municipal roads
and highways,as well as the compaction of the narrow road surfaces such as groove foundation,building construction,pipeline
backfill and stadium.
Main features
1. The machine with fork-type structure,mechanical drive,hydraulic articulated steering,flexible performance,safely and
reliability.Available for compaction on narrow sites and side channel operation.
2. Adopt domestic famous brand engine(National Stage-III Emission Standard ),convenient for use and maintenance,energy
conservation and environmental protection
3. Large capacity LLDPE water tank and canopy adopt advanced rolling molding process,high strength,strong corrosion resistance
and beautiful appearance.
4. Both front and rear wheels with adjustable gap mud scraper equipment.
5. Optimized gear transmission system with high strength and large modulus.High efficiency ,long working life ,stable and
reliable.
6. Floating adjustable seat,make driving more comfortable.Large hood opening,Convenient for maintenance.
7. Equipped with self-sprinkling sprinkler system ,dust elimination and environmental protection.
8. High pressure with water pump sprinkler system as option ,Intermittent or direct spraying,random switching,more
well-distributed spraying.
and highways,as well as the compaction of the narrow road surfaces such as groove foundation,building construction,pipeline
backfill and stadium.
Main features
1. The machine with fork-type structure,mechanical drive,hydraulic articulated steering,flexible performance,safely and
reliability.Available for compaction on narrow sites and side channel operation.
2. Adopt domestic famous brand engine(National Stage-III Emission Standard ),convenient for use and maintenance,energy
conservation and environmental protection
3. Large capacity LLDPE water tank and canopy adopt advanced rolling molding process,high strength,strong corrosion resistance
and beautiful appearance.
4. Both front and rear wheels with adjustable gap mud scraper equipment.
5. Optimized gear transmission system with high strength and large modulus.High efficiency ,long working life ,stable and
reliable.
6. Floating adjustable seat,make driving more comfortable.Large hood opening,Convenient for maintenance.
7. Equipped with self-sprinkling sprinkler system ,dust elimination and environmental protection.
8. High pressure with water pump sprinkler system as option ,Intermittent or direct spraying,random switching,more
well-distributed spraying.
|
Model
|
|
LTC3.5F
|
|
operating mass
|
kg
|
3500
|
|
static linear load
|
N/cm
|
147/163
|
|
vibration frequency
|
Hz
|
50
|
|
centrifugal force
|
kN
|
32
|
|
travel speed
|
km/h
|
2.4/5.0/7.8
|
|
grade ability
|
%
|
20
|
|
turning radius
|
mm
|
4500
|
|
overall dimension
|
mm
|
1830*1290*2650
|
|
drum width
|
mm
|
1090
|
|
wheelbase
|
mm
|
2000
|
|
diesel power
|
kw
|
26.5
|
|
diesel model
|
|
ZN390B
|
|
water tank capacity
|
L
|
200
|
|
steering angle
|
。
|
30
|
|
min ground clearance
|
mm
|
260
|
Customer Photos
Every year, many customers from oversea come to factory to talk about the cooperation and check the production. And have trained many workers for our foreign clients freely, and offered oversea after-sales serive as required for many times.
We take part in BAUMA exhibition at Shanghai every times and some abroad exhibition.Hope can meet you in our exhibition.
FAQ
1.What our advantages compared with others?
Production advantage--- here is the factory ,roller from 0.8tons to 30tons, Model complete than others.
Competitive price--with more than 10years trading from numerous comparison and feedbacks from our customs ,our price is more competitive than others.
Fast delivery-- Normally,we can have an immediate delivery of regular machines for our clients.
2.Is it convenient to see visit your factory and how go there?
welcome everyone to visit our factory,nearby luoyang airport,Also high speed train arrive our city. Make sure your trip date,we will arrange it for you.
3.What is the payment term?
Normally,we can work on T/T term or L/C term,sometimes on DP terms.
On T/T term,30% down payment is required in advance,and 70% balance should be settled before shipment.
On L/C term,a 100% irrevocable L/C without “soft clauses” can be accept.Please seek the advice from the individual sales manage whom you work with.
4.what about the warranty time?
12 months after shipment or 2000 working hours,whichever occuts first.
5.what about the minimum order quantity?
The MOQ is 1 PCS.
Production advantage--- here is the factory ,roller from 0.8tons to 30tons, Model complete than others.
Competitive price--with more than 10years trading from numerous comparison and feedbacks from our customs ,our price is more competitive than others.
Fast delivery-- Normally,we can have an immediate delivery of regular machines for our clients.
2.Is it convenient to see visit your factory and how go there?
welcome everyone to visit our factory,nearby luoyang airport,Also high speed train arrive our city. Make sure your trip date,we will arrange it for you.
3.What is the payment term?
Normally,we can work on T/T term or L/C term,sometimes on DP terms.
On T/T term,30% down payment is required in advance,and 70% balance should be settled before shipment.
On L/C term,a 100% irrevocable L/C without “soft clauses” can be accept.Please seek the advice from the individual sales manage whom you work with.
4.what about the warranty time?
12 months after shipment or 2000 working hours,whichever occuts first.
5.what about the minimum order quantity?
The MOQ is 1 PCS.
