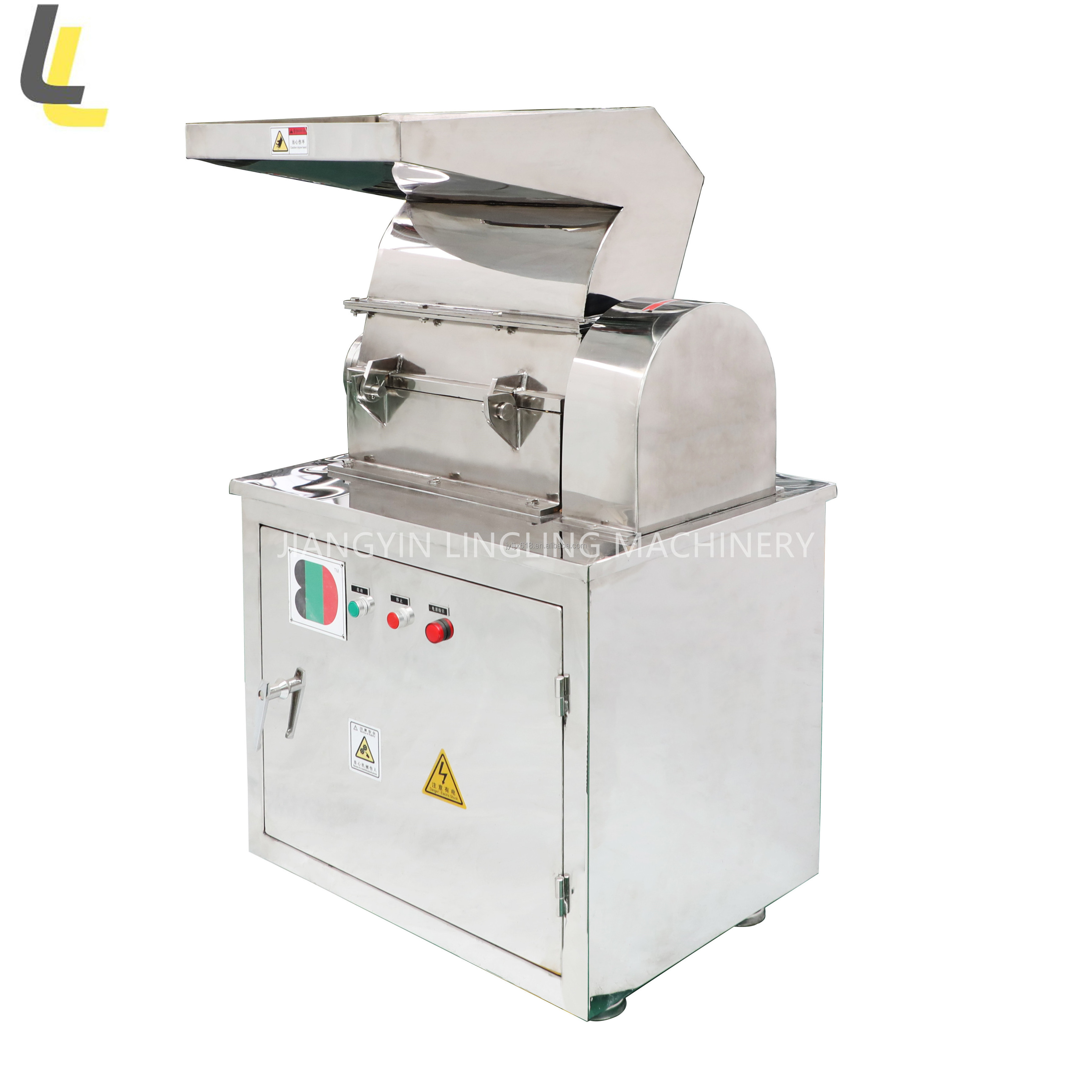

CSJ Coarse Crusher For Dried Hibiscus Flower Milling Rough Mill Spice Grinding Machine

CSJ Coarse Crusher For Dried Hibiscus Flower Milling Rough Mill Spice Grinding Machine

FOB Reference Price: Get Latest Price

≥2 Sets

US $3000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power (kW):: 1.5

Range of Spindle Speed(r.p.m):: 1 - 500 r.p.m

Place of Origin:: Jiangsu, China

Brand Name:: LL brand

Voltage:: 110V~480V

Dimension(L*W*H):: depends on model

Weight (KG):: 100 KG

Marketing Type:: IN STOCK

After-sales Service Provided:: Engineers available to service machinery overseas

Feature:: High Speed

Material:: Stainless Steel

Machine Type:: Crusher

Quick Details

Output (kg/h):: 10 - 100 kg/h

Feeding Size (mm):: 1 - 50 mm

Output Size (mesh):: 2 - 20 mesh

Power (kW):: 1.5

Range of Spindle Speed(r.p.m):: 1 - 500 r.p.m

Place of Origin:: Jiangsu, China

Brand Name:: LL brand

Voltage:: 110V~480V

Dimension(L*W*H):: depends on model

Weight (KG):: 100 KG

Marketing Type:: IN STOCK

After-sales Service Provided:: Engineers available to service machinery overseas

Feature:: High Speed

Material:: Stainless Steel

Machine Type:: Crusher

CSJ

CSJ Coarse Crusher For Dried Hibiscus Flower Milling Rough Mill Spice Grinding Machine

Working principal:

The machine has horizontal crushing structure The material is fed into the crushing chamber through a hopper; crushed by simultaneous cutting of both fixed and movable knives and rotating impact of rotating knife; and is flowed to the exit automatically under the effect of rotating centrifugal force. Besides, this machine is designed according to GMP standard and wholly made of stainless steel. It is simple in structure, convenient to clean and low in nose, it is the most ideal new product in current crusher market.

WHY CHOOSE YOU?

1: it is mainly used for primary crush, crush big size and hard raw material, general used for first process

2: it is made up of stainless steel

3: meeting iso 9001 certificate

4: can match the dust aborption system( as consumer requirement)

5: the voltage: 220V or 380V or as consumer requirement

6: can macth frequency changer( control the crush speed)

7: we can design the feeding mouth as consumer requirement

8: the guarantee: 1 year

9: payment: 30% TT in advance, 70% need to pay us before deliver the goods

10: deliver time: 25 days ( we also have the stock)

11: export port: shanghai port

Technology Data:

Model	CSJ-80	CSJ-120	CSJ-200
Capacity(kg/h)	10-200	100-500	150-800
Size of input(mm)	≤50	≤100	≤100
Fineness of products(mm)	0.5-20	0.5-20	0.5-20
Speed of principal axis(r/min)	400	400	400
Motor power(kw)	1.5	3	5.5
Weight(kg)	120	250	420
Overall size(mm)	510x450x980	650x700x1200	720x850x1350
