Quick Details
-
Motor Power:
-
375/450/50W
-
Spindle travel:
-
65mm
-
Color:
-
Customizable
-
Spindle taper:
-
B16
-
Quantity/20':
-
360pcs
-
Column Dia.:
-
58
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Product name:
-
SP5216A-I drill press
-
Drilling capacity:
-
16mm (5/8')
-
Motor Power:
-
375/450/50W
-
Spindle travel:
-
65mm
-
Color:
-
Customizable
-
Spindle taper:
-
B16
-
Quantity/20':
-
360pcs
-
Column Dia.:
-
58

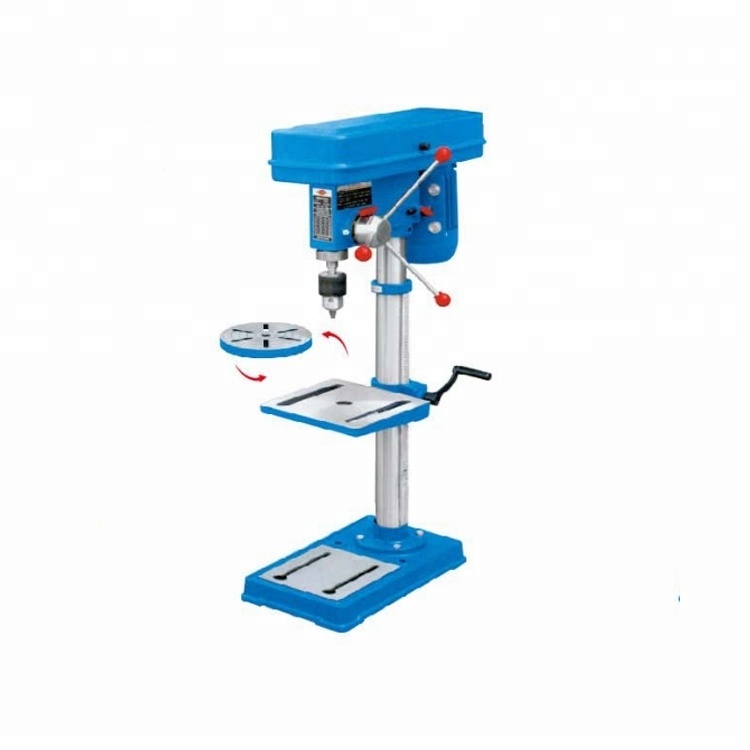

SUMORE SP5216A-I customized general use bench mini drill press
SP5216 Mini bench drilling press machine
belongs to one of our most economic manual Mini bench drilling press machine. It is new condition not used Mini bench drilling press machine. And it is small in size and delicate in design. This Mini bench drilling press machine is made in China, but have very good quality as Taiwan drill press. The main features are as below:
1. High Rigid Construction
2. Easy Operation and Extended Durability
3. Different Sizes and Replaceable Worktables
4. Considerable Safety Design
5. 5/8" (16mm) max chuck capacity
6.
- 45 degree ~ 0 degree ~ + 45 degree table tilt L&R
7. C
huck guard is standard accessories
8.
Optional micro-switch for CE requirement
| Product Specifications | |
| Drill Cap. | 16mm(5/8") |
| Motor power | 350~550W |
| Spindle travel | 65/85mm |
| Class of speed | 5/12/16 |
| Spindle taper | B16/MT2 |
| Swing | 260/310/360/325mm |
| Table size | 190*190/260/290*290/290mm |
| Base size | 340*210/420*250/460*272mm |
| Column Dia. | 58/70~72 |
| Height | 840/900/1000/980mm |
| N.W. | 32/40/60/50KGS |
| G.W. | 34/42/63/52KGS |
| Packing size | 680*430*265/780*450*280/825*490*290/780*450*280mm |
| Quantity/20' | 360/280/250pcs |
