Quick Details
-
Weight (KG):
-
600
-
Voltage:
-
220V/110V, 50Hz, 60Hz
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
2040*1800*2140mm
-
Item Name:
-
Tea Packing machine
-
Bag type:
-
Triangle bag style
-
Usage:
-
Packing tea
-
Keyword:
-
tea packing machine
-
Packing speed:
-
40 bags/min
-
Packing film material:
-
nylon or corn fiber
-
Machine type:
-
Automatic Bag Forming Filling Sealing Machine
-
Machine material:
-
Stanless Steel
-
Main Function:
-
packing tea
-
After Warranty Service:
-
Video technical support
Quick Details
-
Function:
-
FILLING, Wrapping, Labeling, Laminating, COATING, Sealing, Embossing, SLITTING
-
Packaging Type:
-
Stand-up Pouch, Bags, Film, Foil, Pouch
-
Packaging Material:
-
Plastic, Paper
-
Weight (KG):
-
600
-
Voltage:
-
220V/110V, 50Hz, 60Hz
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
2040*1800*2140mm
-
Item Name:
-
Tea Packing machine
-
Bag type:
-
Triangle bag style
-
Usage:
-
Packing tea
-
Keyword:
-
tea packing machine
-
Packing speed:
-
40 bags/min
-
Packing film material:
-
nylon or corn fiber
-
Machine type:
-
Automatic Bag Forming Filling Sealing Machine
-
Machine material:
-
Stanless Steel
-
Main Function:
-
packing tea
-
After Warranty Service:
-
Video technical support
Products Description

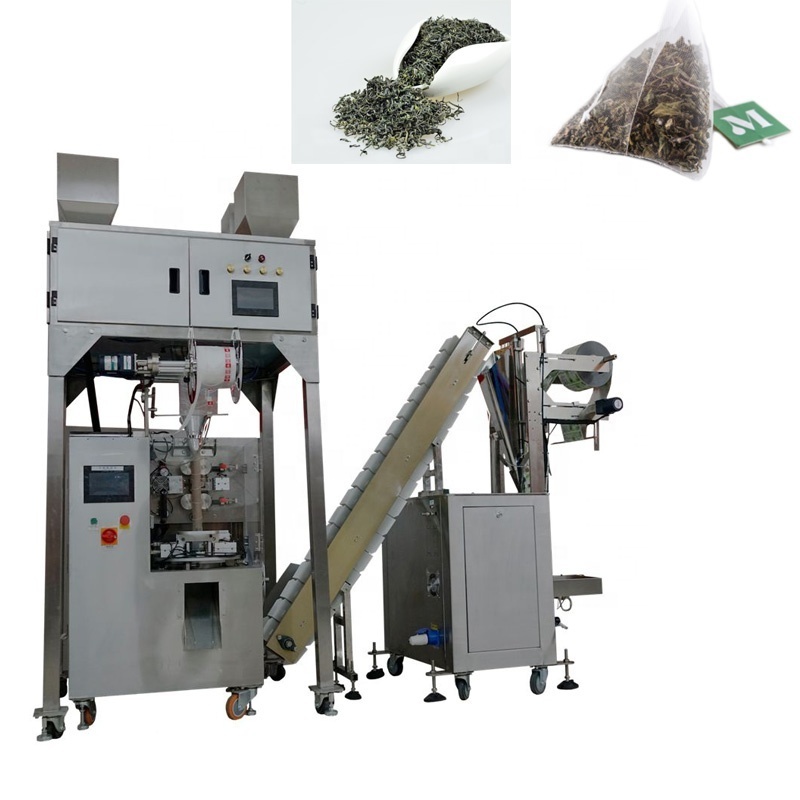

Automatic Triangle Tea Bag Packing Machine
*
This machine is suitable for packing tea, medical tea, healthy tea, and other small granule teas, packed in inner bag and outer bag for one time. Inner bag is triangle or flat bag style.
Sample Bags
Inner bag triangle bag style
Film material can be nylon or corn fiber non-woven fabric or corn fiber mesh
Inner bag flat bag style
Film material can be nylon or corn fiber non-woven fabric or corn fiber mesh
Product Paramenters
|
Item
|
Automatic Triangle Tea Bag Packing Machine
|
|
Model
|
BG-160-4
|
|
Sealing Method
|
Ultrasonic sealing way for inner bag and heat sealing for outer bag
|
|
Filling System
|
2 heads scale, 4 heads scale, or 6 heads scale
|
|
Packing Speed
|
30-60 bags/min
|
|
Bag Size (Inner Drip Bag)
|
Length: 50-52mm Width: 68-70mm
|
|
Filling range
|
2-10 g/bag
|
|
Bag Type
|
Pyramid / Rectangular (Transfer through one button)
|
|
Air Consumpion
|
≥0.6Mpa, 0.4m³/min
|
|
Power
|
220V Single phase 50/60Hz
|
|
weight
|
600kg
|
|
Overall Denmensions
|
4000 * 1200 * 2250mm
|
Features:
1.
Rectangular and pyramid bag with easy shift on touch screen.
2.
The machine can automatically complete feeding, measuring, bag-making, sealing, cutting off counting,
finished product transportation and other functions.
finished product transportation and other functions.
3. The bag length is driven by servo motor, the bag length is stable, the positioning is accurate, the
adjustment is convenient.
adjustment is convenient.
Application
It is widely applied to different kinds of HERBAL TEA, LOOSE TEA LEAVES, FLOWER TEA, FRUIT TEA and BLENDING TEA
Flower tea
Healthy tea
Normal tea leaves
