Quick Details
-
Brand Name:
-
cxztcl
-
Product name:
-
304 stainless steel float valve
-
Product size:
-
76x50mm
-
Operating pressure range:
-
0.2-10KG
-
Applicable medium:
-
clean water
-
Max temperature:
-
0 ° ~ 100 °
-
Standard or Nonstandard:
-
Standad
-
Material:
-
304SS
-
Feature:
-
Simple Operation
-
Connection type:
-
G1/2"
-
Keyword:
-
heat resistant float valve
Quick Details
-
Port Size:
-
1/2"
-
Place of Origin:
-
Fujian, China
-
Model Number:
-
CX-05
-
Brand Name:
-
cxztcl
-
Product name:
-
304 stainless steel float valve
-
Product size:
-
76x50mm
-
Operating pressure range:
-
0.2-10KG
-
Applicable medium:
-
clean water
-
Max temperature:
-
0 ° ~ 100 °
-
Standard or Nonstandard:
-
Standad
-
Material:
-
304SS
-
Feature:
-
Simple Operation
-
Connection type:
-
G1/2"
-
Keyword:
-
heat resistant float valve

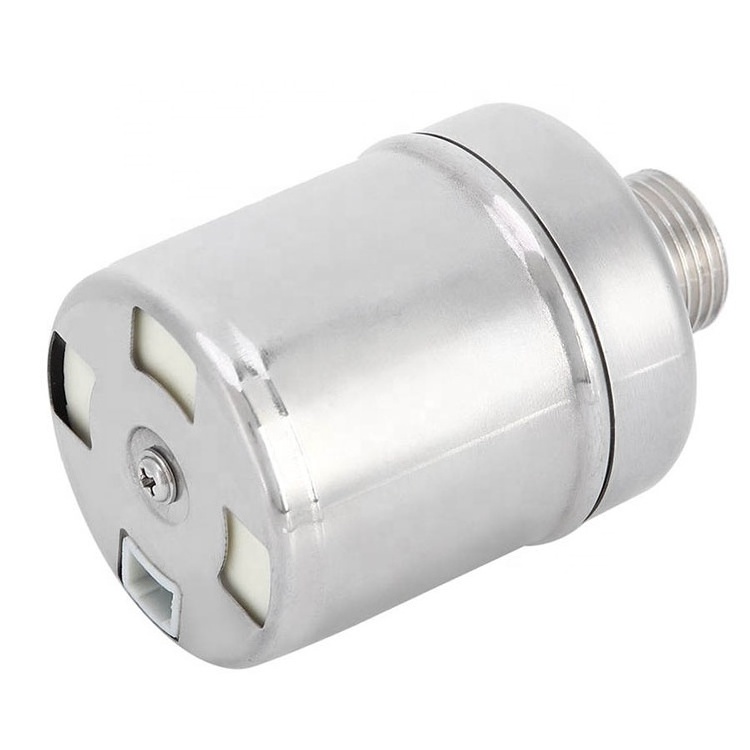

New Patent Products 1/2" Stainless Steel Ball Solar Heating Water Auto Top Up Float Valve Controller
Product Details
1. Water working pressure: 0.2kg---10kg
2. Stainless steel float valve be mounted vertically on a horizontal surface.
3. The valve is liquid level control valve. When installing, the float must be vertically downward.
4. Fit the inlet pipe on horizontal surface, connect the valve to the inlet pipe
5. When working, all shut-off valves should be fully open
6. If two valves are installed in the same pool, they should be kept at the same level.
7.before installing and using this valve, be sure to clean the impurities in the pipeline
8. Use this valve as built-in product, the bottom will leak water, it is normal.
