Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
SmartAutomation
-
Model Number:
-
42ZYT
-
Torque:
-
39mNm ~ 100mNm
-
Certification:
-
ce
-
Certification 2:
-
RoHS
-
Certification 3:
-
TIV
Quick Details
-
Speed(RPM):
-
customed
-
Continuous Current(A):
-
customed
-
Efficiency:
-
IE 1
-
Place of Origin:
-
China
-
Brand Name:
-
SmartAutomation
-
Model Number:
-
42ZYT
-
Torque:
-
39mNm ~ 100mNm
-
Certification:
-
ce
-
Certification 2:
-
RoHS
-
Certification 3:
-
TIV

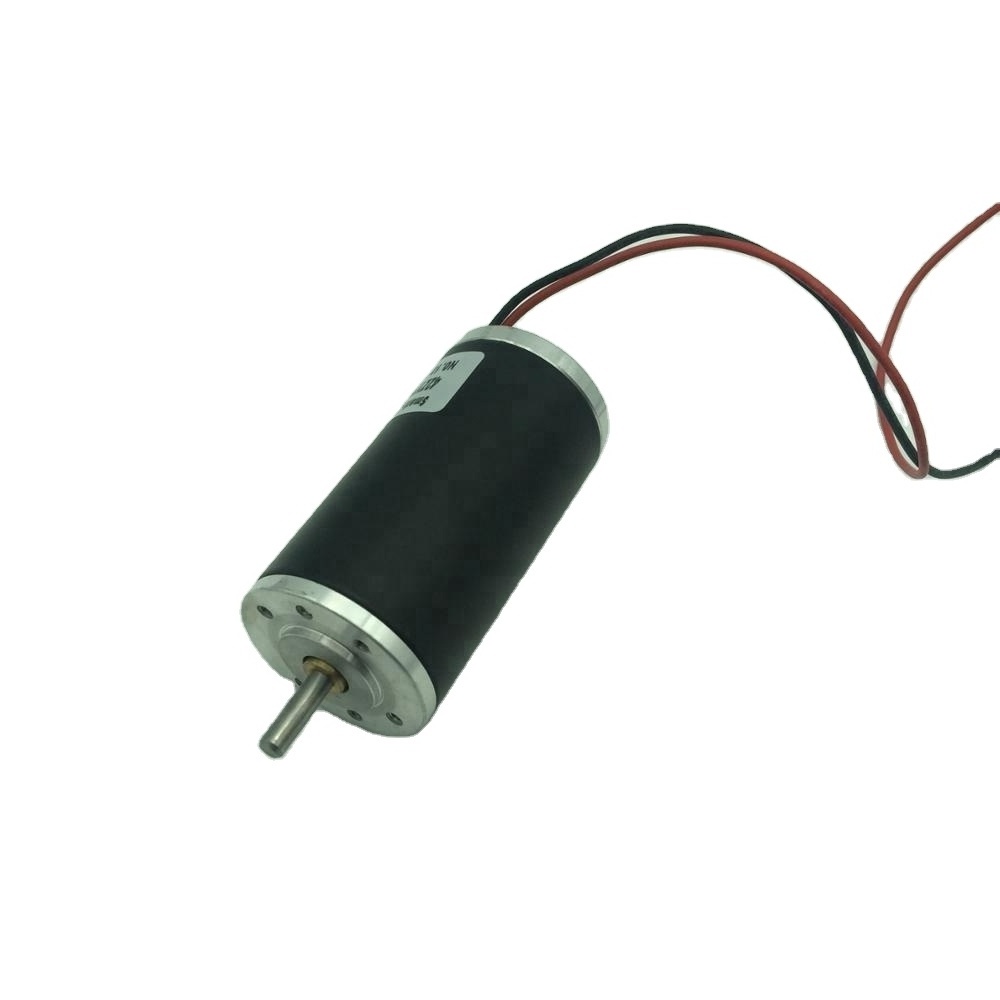

Motor technical parameter:
Shaft HRC 36~40 ; NMB ball bearing
Hard ferrit magnet, 2- poles
Protection class IP 50
Insulation class: F, operating temperature range:-40°C~+140°C
CE and ROHS certified
Options:
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection
High temperature Class H insulation
|
Model |
42ZYT01A |
|||
|
Rated voltage |
V dc |
12 |
24 |
40 |
|
Continuous rated speed |
rpm |
3450 |
3600 |
3700 |
|
Continuous rated torque |
mN.m |
39 |
38 |
39 |
|
Continuous current |
A |
1.9 |
0.9 |
0.6 |
|
Starting torque |
mN.m |
190 |
200 |
220 |
|
Starting current |
A |
7.8 |
4 |
2.76 |
|
No load speed |
rpm |
4350 |
4200 |
4400 |
|
No load current |
A |
0.34 |
0.17 |
0.11 |
|
Demagnetization current |
A |
14 |
6.5 |
4.1 |
|
Rotor inertia |
Gcm2 |
71 |
71 |
71 |
|
Weight of motor |
g |
390 |
390 |
390 |
|
Motor length |
Mm |
70 |
70 |
70 |
|
Model |
42ZYT02A |
|||
|
Rated voltage |
V dc |
12 |
24 |
40 |
|
Continuous rated speed |
rpm |
3750 |
3100 |
3400 |
|
Continuous rated torque |
mN.m |
53 |
57 |
57 |
|
Continuous current |
A |
2.7 |
1.2 |
0.8 |
|
Starting torque |
mN.m |
320 |
330 |
360 |
|
Starting current |
A |
13.2 |
5.68 |
3.97 |
|
No load speed |
rpm |
4550 |
3800 |
3950 |
|
No load current |
A |
0.44 |
0.18 |
0.12 |
|
Demagnetization current |
A |
24 |
10.5 |
6.3 |
|
Rotor inertia |
Gcm2 |
110 |
110 |
110 |
|
Weight of motor |
g |
490 |
490 |
490 |
|
Motor length |
Mm |
80 |
80 |
80 |
|
Model |
42ZYT04A |
|||
|
Rated voltage |
V dc |
12 |
24 |
40 |
|
Continuous rated speed |
rpm |
3350 |
3350 |
3350 |
|
Continuous rated torque |
mN.m |
70 |
70 |
70 |
|
Continuous current |
A |
2.8 |
1.4 |
0.85 |
|
Starting torque |
mN.m |
400 |
400 |
400 |
|
Starting current |
A |
15.1 |
7.5 |
4.62 |
|
No load speed |
rpm |
4000 |
4000 |
4000 |
|
No load current |
A |
0.35 |
0.25 |
0.15 |
|
Demagnetization current |
A |
24 |
10.5 |
6.3 |
|
Rotor inertia |
Gcm2 |
193 |
193 |
193 |
|
Weight of motor |
g |
600 |
600 |
600 |
|
Motor length |
Mm |
90 |
90 |
90 |
