Quick Details
-
Model Number:
-
BMB-117M
-
Product name:
-
Microscope
-
Model:
-
BMB-117M
-
Camera System Output Mode:
-
USB2.0
-
Operation System:
-
WINDOWS7/8 2000 / XP/ VISTA
-
Software:
-
ScopeImage 9.0
-
Range of Viewing Field:
-
90%
-
Eyepiece:
-
WF10x/ 18
-
Objective:
-
Achromatic Objective 4x,10x,40x,100x
-
Nosepiece:
-
Backward Quadruple Nosepiece
-
Illumination:
-
LED 3W, Brightness Adjustable
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BIOBASE
-
Model Number:
-
BMB-117M
-
Product name:
-
Microscope
-
Model:
-
BMB-117M
-
Camera System Output Mode:
-
USB2.0
-
Operation System:
-
WINDOWS7/8 2000 / XP/ VISTA
-
Software:
-
ScopeImage 9.0
-
Range of Viewing Field:
-
90%
-
Eyepiece:
-
WF10x/ 18
-
Objective:
-
Achromatic Objective 4x,10x,40x,100x
-
Nosepiece:
-
Backward Quadruple Nosepiece
-
Illumination:
-
LED 3W, Brightness Adjustable
Product Description

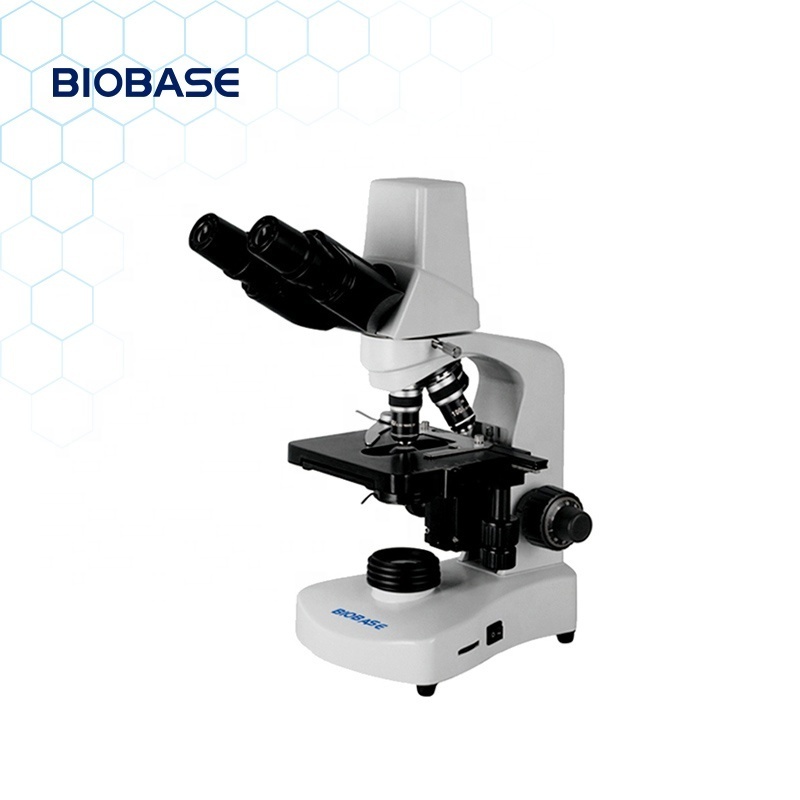

Build-in Camera Biological Microscope
BMB-117M
Specification
|
|
Specification |
|
|
BMB-117M
|
BMB-300M
|
||
|
Viewing Head
|
Compensation Free Binocular Head, Inclined at 30°, Interpupilary Distance 48-75mm
|
|
|
√
|
√
|
||
|
|
Camera
System |
Valid Pixel
|
1280*1024(1.3M Pixel)
|
√
|
●
|
||
|
|
|
|
2048*1036 (3.0M Pixel)
|
|
√
|
||
|
|
|
|
2052*1944 (5.0M Pixel)
|
|
|
||
|
|
|
Output Mode
|
USB2.0
|
√
|
√
|
||
|
|
|
Operation System
|
WINDOWS7/8 2000 / XP/ VISTA
|
√
|
√
|
||
|
|
|
Software
|
ScopeImage 9.0
|
√
|
√
|
||
|
|
|
Range of Viewing Field
|
90%
|
√
|
√
|
||
|
Eyepiece
|
WF10×/ 18
|
|
|
√
|
√
|
||
|
|
P16×/ 11
|
|
|
●
|
|
||
|
|
Extra wide filed eyepiece EW10×/ 20 with diopter
adjustment |
|
|
|
●
|
||
|
Objective
|
Achromatic Objective 4×、10×、40×、100×
|
|
|
√
|
|
||
|
|
Infinite planAchromatic Objective 4×、10×、40×、100×
|
|
|
|
√
|
||
|
Nosepiece
|
Backward Quadruple Nosepiece
|
|
|
√
|
|
||
|
|
QuintupleNosepiece
|
|
|
|
●
|
||
|
|
Quadruple Nosepiece
|
|
|
|
√
|
||
|
Stage
|
Double Layers Mechanical Stage 132*142mm,Moving range 75*40mm
|
|
|
√
|
|
||
|
|
Double Layers Mechanical Stage 140*140mm Moving range 75*40mm
|
|
|
|
√
|
||
|
Condenser
|
Abbe NA1.20 with Iris Diaphragm & Fliter
|
|
|
√
|
|
||
|
|
Abbe NA1.25 sliding-in centerable condenser
|
|
|
|
√
|
||
|
Focusing
|
Coaxial Coarse & Fine Adjustment System, Range 24mm, Fine Division 0.004mm
|
|
|
√
|
|
||
|
|
Coaxial Coarse & Fine Adjustment System, Range 20mm
|
|
|
|
√
|
||
|
Illumination
|
LED 3W, Brightness Adjustable
|
|
|
√
|
|
||
|
|
Halogen Lamp 6V/ 20W, Brightness Adjustable
|
|
|
●
|
|
||
|
|
220V or 110V/ 6V/ 20W Halogen Lamp, Brightness Adjustable
|
|
|
|
√
|
||
|
Power Supply
|
AC110/220V±10%, 50/60Hz
|
|
|
√
|
√
|
||
|
Accessories
|
Phase Contrast Kit
|
|
|
●
|
●
|
||
|
|
Dark-Field Attachment
|
|
|
●
|
●
|
||
|
|
Polarization Attachment
|
|
|
●
|
|
||
|
Package Size
|
396*262*492(BMB-117M), 334*334*533(BMB-300M)
|
|
|
√
|
√
|
||
|
Gross Weight
|
7.5kg (BMB-117M), 12.5kg (BMB-300M)
|
|
|
√
|
√
|
||
Note: √ Standard Outfit, ● Optional\ Without this feature
